Customizable Temperature and Humidity Walk-in Climate Test Chamber

Customizable Temperature and Humidity Walk-in Climate Test Chamber

Brand Name:	Sinuo
Model Number:	SN886-18F
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Range:

0°～ +100℃

Effective Volume:

18m³

Humidity Range:

20%〜98%RH

Humidity Fluctuation:

≤±2.0%R.H

Cooling Rate:

+100℃~0℃ About 0.7～1℃/min (no Load, Average)

Heating Rate:

0°～ +100℃ About 2～3℃/min (no Load, Average)

Inner Box Dimensions:

W3000 Mm*H2000 Mm*D3000mm

External Dimensions Approx.:

W3800 Mm*H2530 Mm*D3690 Mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

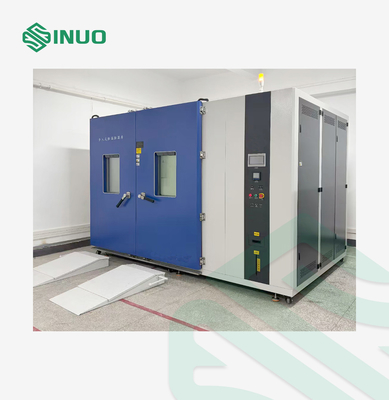

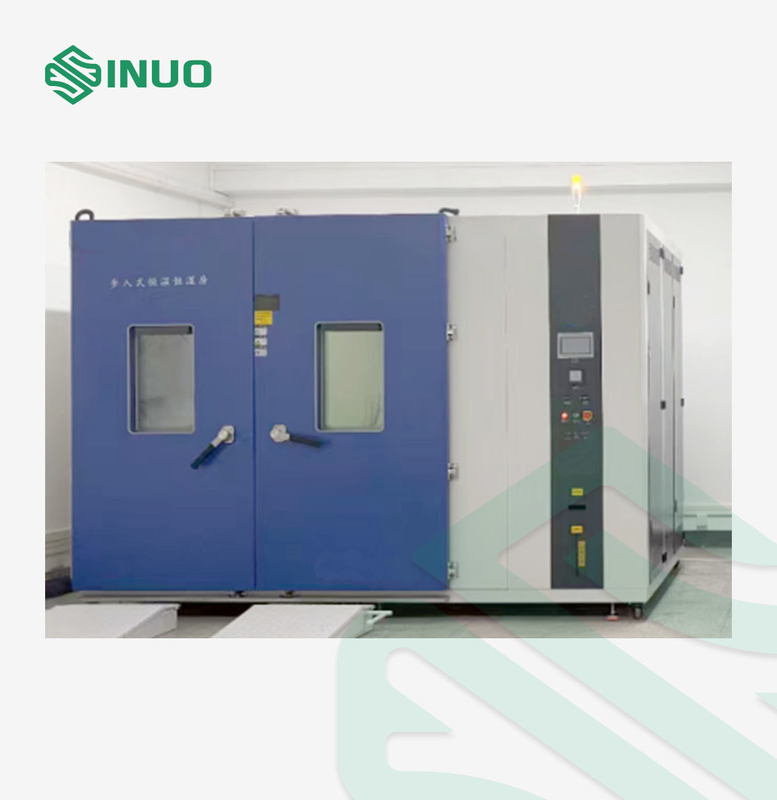

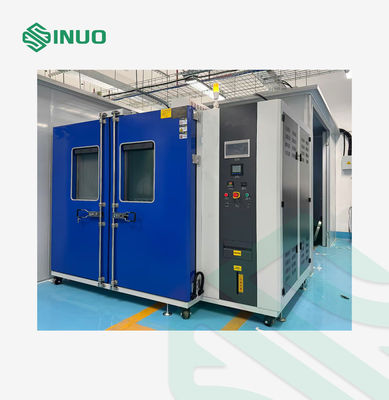

Customizable Temperature and Humidity Walk-in Climate Test Chamber

Complied Standards & Clauses

Applied Standard:

IEC60068-2-1:2007 Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT

IEC60068-2-2:2007 Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT

IEC60068-2-78:2001 Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT

IEC60068-2-22:2005 Environmental Testing Part 2-22: Tests Test N: Change of temperature, IDT

Product Overview

Our Walk-in Constant Temperature and Humidity Test Chamber is designed for large-scale environmental simulation, offering a stable and controlled climate to test the reliability, stability, and performance of products under varying temperature and humidity conditions.

Ideal for industries such as electronics, automotive, aerospace, batteries, and pharmaceuticals, this chamber provides a spacious interior for testing oversized equipment or multiple samples simultaneously. With precise PLC-based control, uniform airflow distribution, and advanced insulation, it ensures accurate, repeatable test results.

Whether for high-temperature endurance, low-humidity performance, or long-term aging tests, this walk-in chamber is a reliable solution for demanding environmental testing applications.

Technical Parameters

Effective volume	18m³
Inner box size	W3000 mmH2000 mmD3000mm
Outer box size	About W3800 mmH2530 mmD3690 mm(Excluding unit size)
Performance
Cooling method	Water cooling
Temperature range	0°～ +100℃
Humidity range	20%-98%RH
Heating rate	0°～ +100℃ About 2～3℃/min (no load, average)
Cooling rate	+100℃~0℃ About 0.7～1℃/min (no load, average)
Analysis accuracy	0.01℃
Temperature fluctuation	±0.5℃
Temperature deviation	±2.0℃
Humidity deviation	≤±5.0%RH below 75%RH, ≤+2/-3%RH above 75%RH
Humidity fluctuation	≤±2.0%R.H
