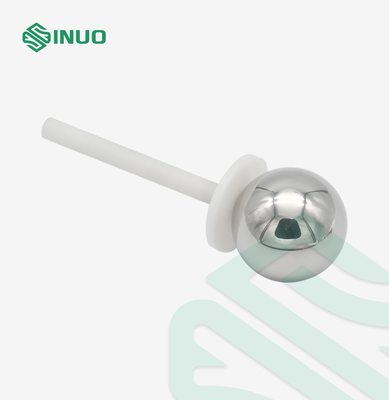

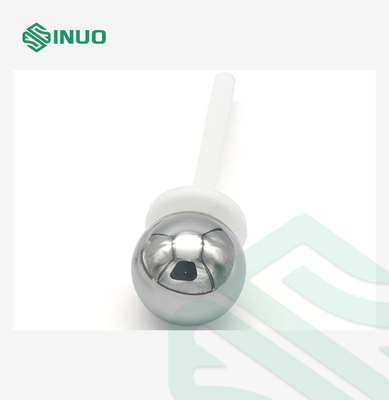

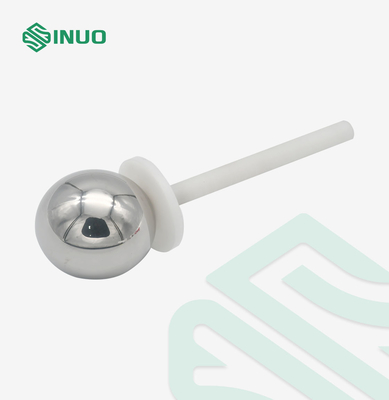

IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe

Name: IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN2210-1
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN2210-1
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Complied Standards:

IEC61032

Complied Clauses:

Fig.1

Name:

Test Probe A

Model:

SN2210-1

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

IEC 60529 IP1X Test Probe A Anti-electric Shock Test Probe

Complied Standards & Clauses

It conforms to the standard requirements of IEC61032 fig.1, IEC60529 IP1X and IEC60065, etc.

Product Overview

This probe is intended to verify protection the back of hand of persons against access to hazardous parts. It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.

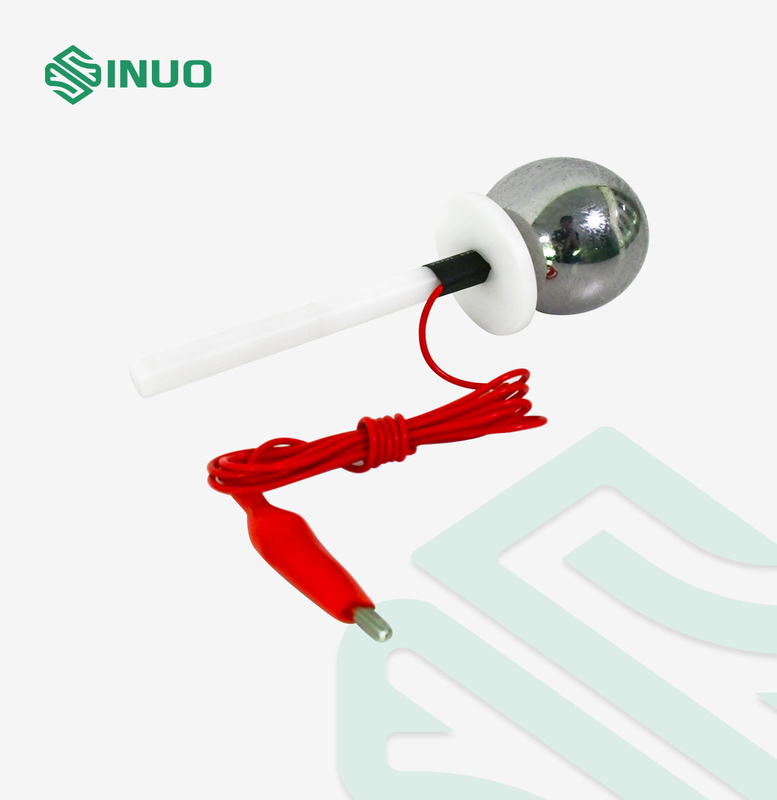

This test probe can be customized. It can be used for anti-electric shock test when equipped with alligator clip. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). The probe whose model number is with "T" is with force.

Technical Parameters

Parameters /Model	SN2210-1	SN2210-1T (Optional)
Name	Test probe A	Test probe A with force
1	SФ50^+0.05 ₀(mm)	SФ50^+0.05 ₀(mm)
2	Ф45±0.2(mm)	Ф45±0.2(mm)
3	Ф10(mm)	Ф10(mm)
4	4(mm)	4(mm)
5	100(mm)	100(mm)
6	----	With force of 50N
