EV Waterproof Test System IPX1–IPX8 Test System Integrated Waterproof Test Solution

EV Waterproof Test System IPX1–IPX8 Test System Integrated Waterproof Test Solution

Brand Name:	Sinuo
Model Number:	SN4418
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Tank Material:

Stainless Steel

Body Material:

Industrial Aluminum Alloy

Dripping Aperture:

￠0.4mm

Hole Distance:

20mm

Test Time:

10Min, Can Be Set According To The Need

Rainfall Flow:

1mm/Min, 3mm/Min, User-set Parameters (error: + 0.5mm / Min).

Machine Structure:

Wall Mount

Air Compressor:

Silent Air Compressor

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Product Description

EV Waterproof Test System IPX1–IPX8 Test System Integrated Waterproof Test Solution

Complied Standards & Clauses

This IPX1~8 waterproof test system conforms to IEC 60529:2013, and required by IEC60335-1 clause 15, etc.

Equipment Overview

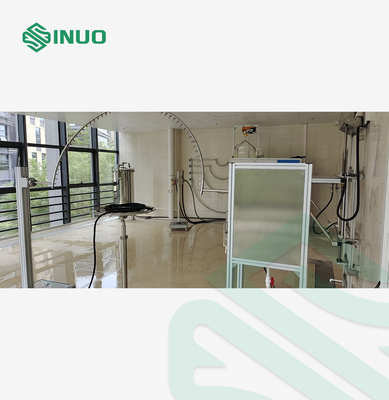

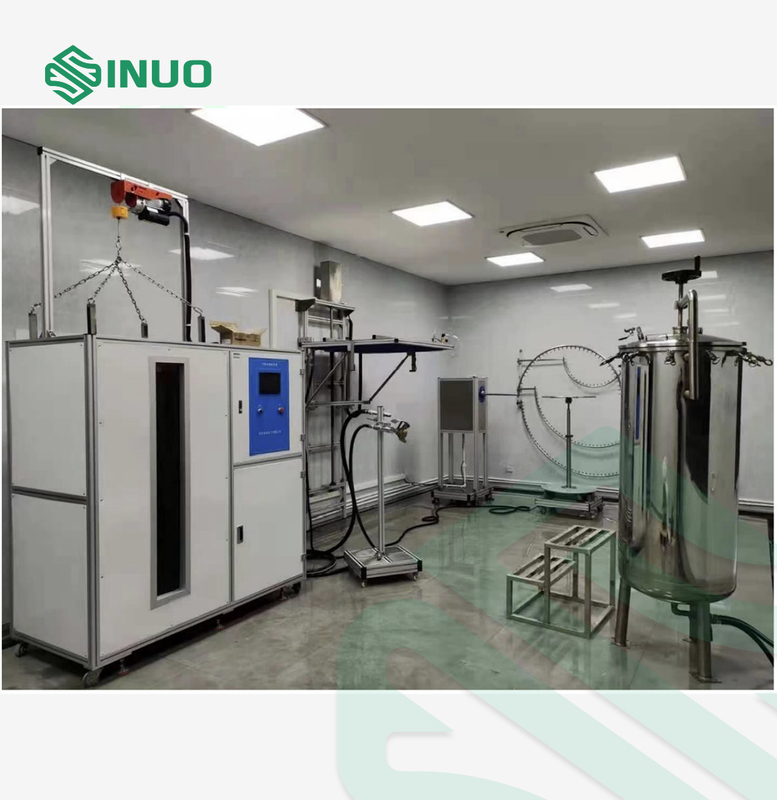

This Electric Vehicle Integrated Waterproof Test System is specifically designed for evaluating the waterproof performance of EV connectors and charging interfaces in accordance with IEC60529 standards, supporting IPX1 to IPX8 test levels.

Key Features

Comprehensive IPX1–IPX8 Coverage: One system for all standard waterproof tests, including dripping, spraying, splashing, jetting, and immersion.
Dedicated for EV Applications: Tailored for EVSE connectors, cables, inlets, and outlets used in electric vehicle charging systems.
High Precision & Stability: Equipped with precise flow control, programmable timing, and real-time monitoring for consistent test results.
Flexible Configuration: Modular design allows quick switching between test levels (IPX1 to IPX8).
User-Friendly Interface: Touch screen control with customizable test parameters and automatic recording.
Safety & Reliability: Built-in protection for overpressure, leakage, and emergency stop functions.

Technical Parameters

No.	Name	IP Code	Remark
1.	Vertical Rain Drip Test Apparatus	IPX1~2	Drip area: 1000mm*1000mm Controlled by Control Cabinet on IPX7

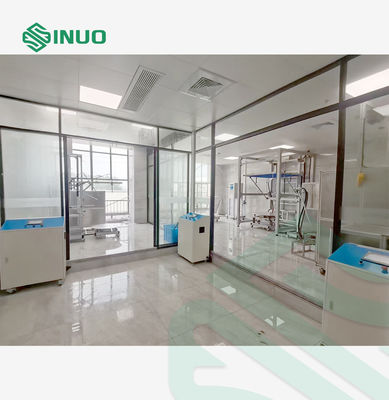

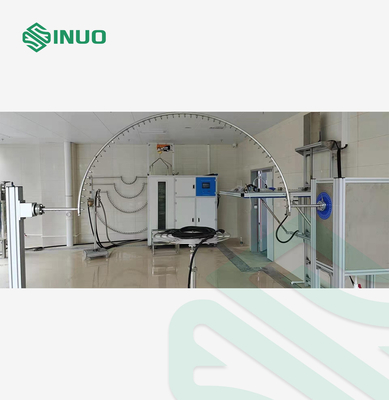

2	Oscillating Tubes Test Apparatus	IPX3~4	Oscillating Tubes: R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm Controlled by Control Cabinet on IPX7
3	Spray Nozzle	IPX3~4	Controlled by Control Cabinet on IPX7
4	Hose Nozzle	IPX5~6	Controlled by Control Cabinet on IPX7
5	Integrated Immersion Chamber & Water Supply Tank & Control Cabinet	IPX7	Inner chamber size: 650mm600mm1500mm Controlled by Control Cabinet on IPX7
6	Deep Immersion Tank	IPX8	φ600*1000mm Controlled by Control Cabinet on IPX7
7	Turntable	Accessory for IPX1~IPX6	φ600mm Controlled by Control Cabinet on IPX7
