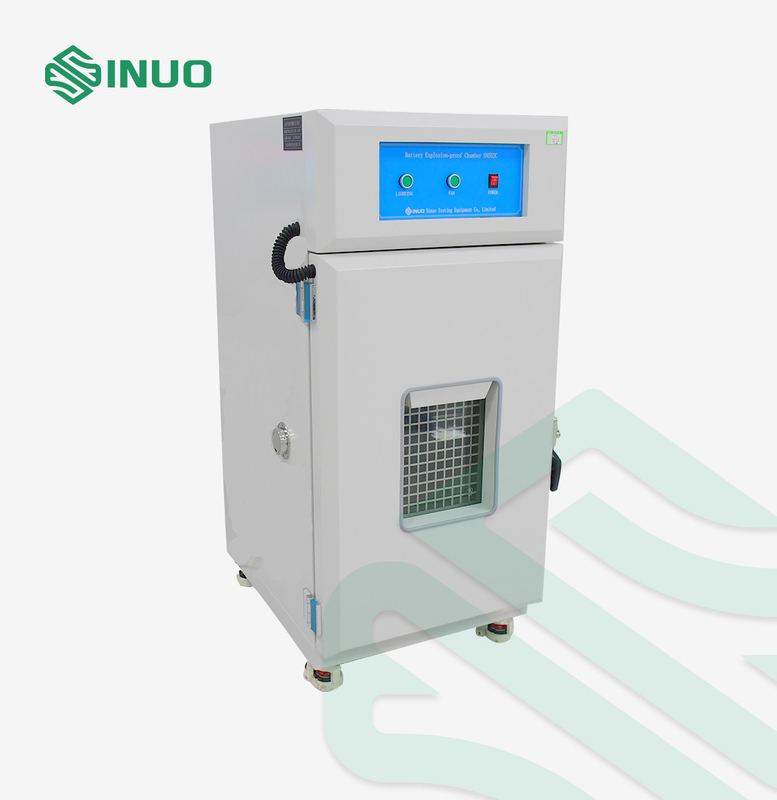

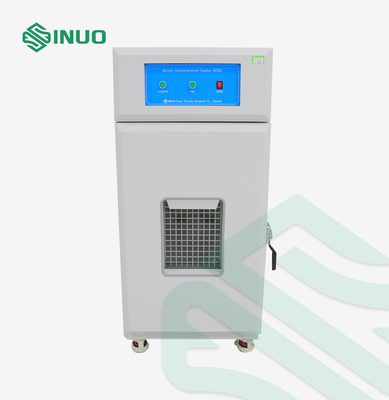

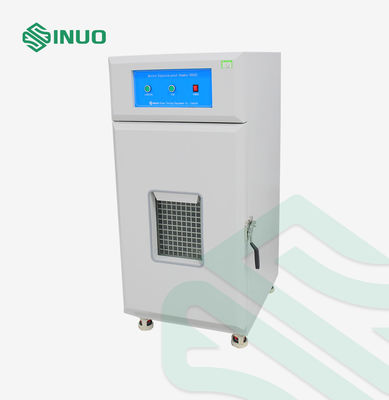

IEC62133 Battery Test Equipment Explosion-proof Chamber for Lithium Battery Testing

Name: IEC62133 Battery Test Equipment Explosion-proof Chamber for Lithium Battery Testing
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN552D-864L
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN552D-864L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Box Dimensions:

W 900×H 800×D 1200mm

External Dimensions Approx.:

L1400*W1850*H2050mm

Temperature Range:

0℃~85℃

Effective Volume:

864L

Temperature Fluctuation:

≤±0.5℃

Temperature Deviation:

≤±1.5℃

Heating Rate:

0℃~85℃, Full Range Average 3℃/min Non-linear (no Load)

Cooling Rate:

85℃~0℃, Full Range Average 1℃/min Non-linear (no Load)

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Explosion-proof Battery Test Equipment

Lithium Battery Test Equipment

IEC62133 Battery Test Equipment

Product Description

IEC62133 Battery Test Equipment Explosion-proof Chamber for Lithium Battery Testing

Complied Standards & Clauses

Conforms to UL 1662:2012, UL 2056: 2012, UN38.3(2012), IEC62133-2012, IEC 62281: 2006, IEC 60086: 2007.

Product Overview

This battery explosion-proof box is used to prevent battery explosion or combustion from causing unnecessary harm to test personnel during overcharge, over discharge or other tests. The entire body is made of steel, with strong texture and good explosion-proof effect.The SN552D-864L Battery Explosion-proof Test Chamber is specially designed to ensure the safety of operators and testing environments during high-risk battery tests such as overcharge, over-discharge, thermal runaway, or puncture. Built with industrial-grade materials and enhanced safety features, this chamber provides unmatched protection and performance.

Technical Parameters

Other functions	The observation window is made of explosion-proof glass and explosion-proof film, with a size of 300 * 300mm.
	Equipped with fire extinguishing device, automatic and manual fire extinguishing (optional)
	Install lighting system

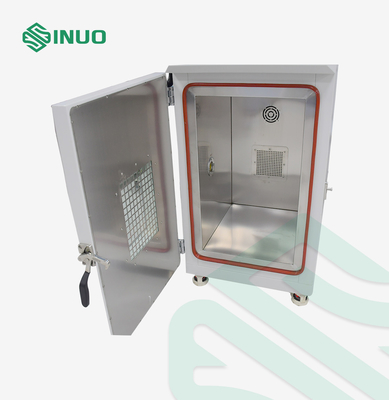

Equipment inner box	Made of 2mm SUS304 stainless steel + 3mm cold-rolled steel plate,, with external welded reinforcement ribs to ensure the strength of the inner box. Prevent the impact of battery explosion from damaging the box. Adopts TIG continuous welding; has acid-proof, explosion-proof and corrosion-proof functions; C5 channel steel is welded on the outside of the box for reinforcement;
Strong base and frame	The base of the equipment is welded with channel steel. The frame is welded with channel steel on the base, and the whole equipment is fixed on the channel steel frame, which is strong and durable, with small vibration and low noise during operation.
Strong door frame	The door frame outer box sheet metal is reinforced by welding channel steel around the perimeter. The hinges and door locks are fixed on this channel steel. M6 high-strength bolts are used to fix the door frame to ensure the strength of the box.

Work chamber size	W 900×H 800×D 1200mm, internal volume 864L Meets battery testing requirements
Outer box size	Approximately L1400W1850H2050mm
Temperature range	0℃~85℃ (full range controllable, adjustable control accuracy ±0.01℃)
Temperature fluctuation	≤±0.5℃
Temperature deviation	≤±1.5℃
Temperature uniformity	≤1.5℃
Heating rate	0℃~85℃, full range average 3℃/min non-linear (no load)
Cooling rate	85℃~0℃, full range average 1℃/min non-linear (no load)
