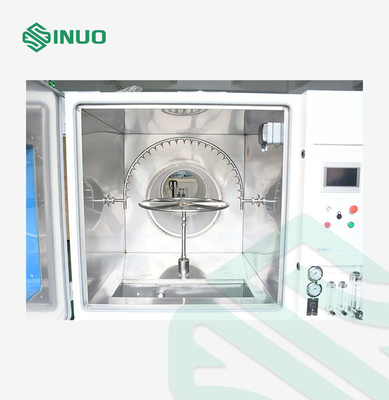

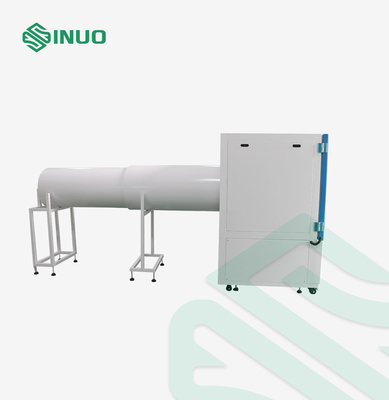

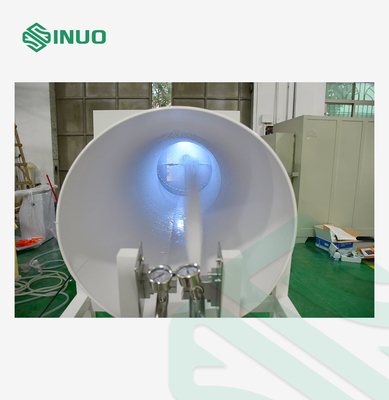

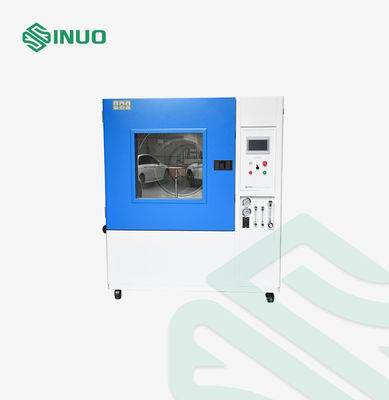

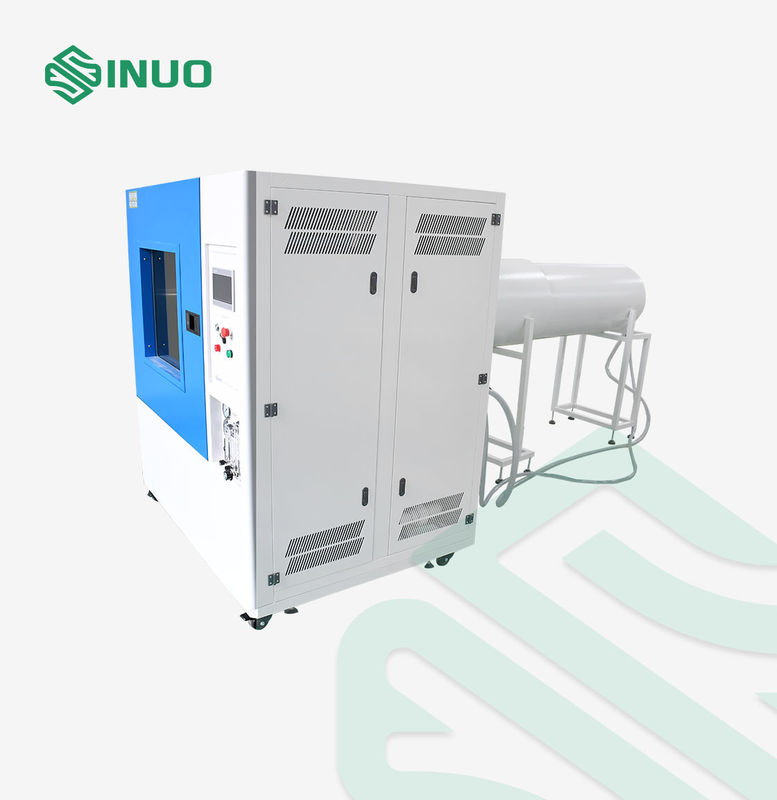

IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine

IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine

Brand Name:	Sinuo
Model Number:	SN4418
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Chamber Size:

L1000*W1000*H1000mm

Outer Chamber Size:

L1480*W3800*H1800mm

Turntable Diameter:

￠400mm

Turntable Speed:

1 -5r/min (adjustable)

Turntable Rotation Method:

Always Positive / Positive And Negative Alternate

Flow Adjustment Method:

Manually Adjust Flow With Adjustable Panel Flow Meter

Turntable Maximum Load:

30KG

Equipment Total Wright:

350kg

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

IPX3 IPX6 Spray Nozzle

Hose Nozzle Water Spray Test Machine

IP Waterproof Test Machine

Product Description

IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine

Complied Standards & Clauses

Conforms to IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures(IP Code)> IPX3,IPX4, IPX5 and IPX6 test, figures 5 and figure 6.

Equipment Overview

Application Background: The destruction of products and materials by natural water (rain, sea, river, etc.) causes an incalculable economic loss every year. The damages caused mainly include corrosion, fading, deformation, strength drop, expansion, mildew, etc., especially electrical products are easily broken into fires due to short circuits caused by rain. Therefore, enclosure protection water testing for specific products or materials is an essential and critical process.

Technical Parameters

Inner Chamber Size	L1000W1000H1000mm
Outer Chamber Size	L1480W3800H1800mm
Turntable Diameter	￠400mm
Turntable Maximum Load Bearing	30KG
Turntable Speed	1 -5r/min (adjustable)
Turntable Rotation Method	Always positive / positive and negative alternate
Flow Adjustment Method	Manually adjust flow with adjustable panel flow meter
Test Time	0-999 min
Equipment Total Wright	350kg
IPX34 Spray Nozzle Parameters
Parameters of Spray Nozzle	Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass.
Water Flow	10L/min±5%, flow meter is adjustable through rotameter, electronic flowmeter is optional
Pressure	50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa
Moving Shield	Made of aluminum, can be detachable
Spray Distance	2.5M (nozzle away from the center of the turntable)
Nozzle Fixed Method	Mechanical fixing
IPX56 Jet Nozzle Parameters
IPX5 Nozzle Jet Aperture	6.3mm
IPX6 Nozzle Jet Aperture	12.5mm
IPX5Jet Flow	12.5±0.625
IPX6 Jet Flow	100±5L/min
Water Pressure (Mpa)	Adjusted according to the specified water flow
Jet Distance	2.5M (nozzle away from the center of the turntable)
Nozzle Fixed Method	Mechanical fixing

Details

IPX3~IPX6 Spray Nozzle and Hose Nozzle Water Spray IP Waterproof Test Machine 0
