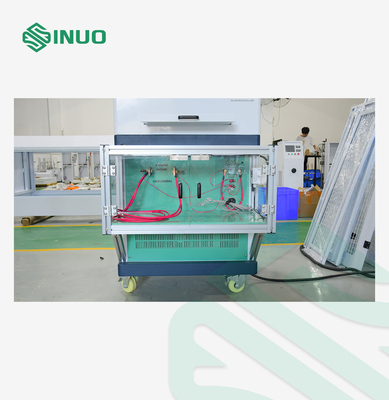

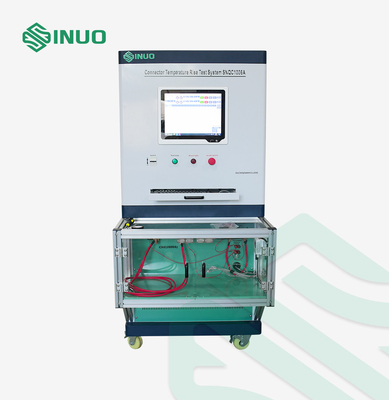

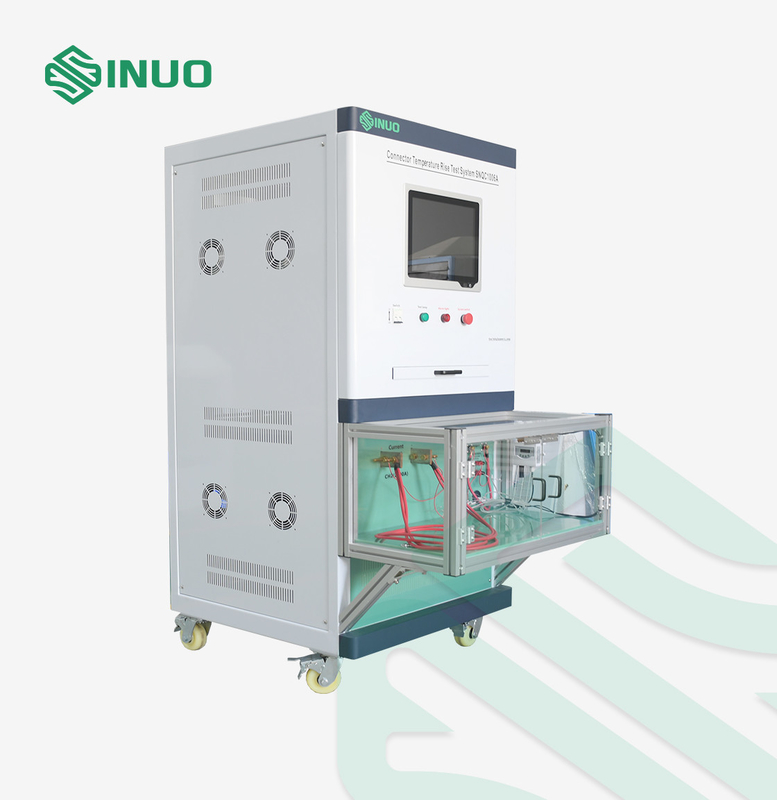

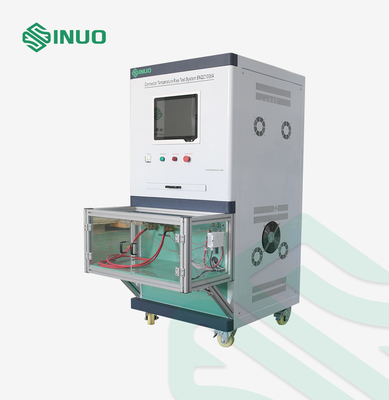

IEC 62916-3 EV Plug and Socket Temperature Rising Test System

IEC 62916-3 EV Plug and Socket Temperature Rising Test System

Brand Name:	Sinuo
Model Number:	SNQC1006B-6500A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Dimensions:

1000mm (W) × 1300mm (D) × 1800mm (H)

Weight:

400kg

Sampling Frequency:

100ms To 1800s

Stability Accuracy:

±0.5°C

Temperature Measurement Points:

16 Channels

Temperature Measurement Range:

0–260°C

Temperature Rise Setting Range:

0–100°C

Data Recording Interval:

100ms To 1800s

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

IEC 62916-3 EV Plug and Socket Temperature Rising Test System

Complied Standards & Clauses

This test system meets the standard requirements of IEC 62196-1Ed.4CDV 2020 clause 12.3, clause 24, table 10, clause 34.2, 34.4 and 35.4., IEC 62916-2, IEC 62916-3, etc.

Product Overview

This system is designed to perform temperature rise tests after the EV plug and socket are subjected to their rated current. It evaluates the surface heating of electrical accessories under load conditions and determines whether the terminal temperature rise complies with relevant standards. It is also applicable for conducting short-duration high-current withstand tests on grounding contacts.

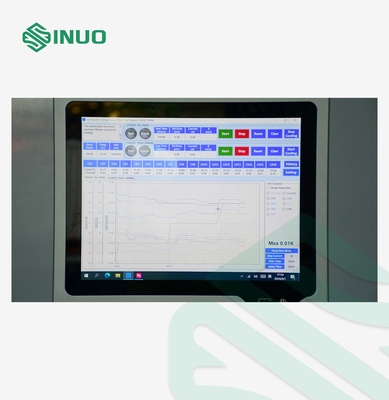

The system operates with custom-developed software controlled via computer. All standard test procedures and data evaluations are automatically managed by the software, ensuring user-friendly operation. It is intended to assess the surface temperature increase and electrode heating of charging interfaces and electrical components when carrying load current, verifying compliance with temperature rise requirements specified in applicable standards.

Technical Parameters

Output Workstation	1 DC output station
Maximum Output Voltage	DC less than DC 15V
Constant Adjustable Test Current Output	DC 200–6500A
Automatic Temperature Control Mode	The system can set a stable temperature rise value and automatically find the appropriate current value. • Temperature Rise Setting Range: 0–100°C • Stability Accuracy: ±0.5°C • Automatically calculates the required current for the desired temperature rise
Voltage Display Accuracy	±(0.25% of reading + 0.25% of range), resolution 0.01V
Temperature Measurement Range	0–260°C, Accuracy: ±0.3% of reading + 1°C; Resolution: 0.1°C
Temperature Measurement Points	16 channels (including 1 point for measuring ambient temperature)
Thermocouple Types Supported	The instrument supports J, K, T, E, S, N, B, R types of thermocouples.
Thermocouple Used for Measurement	USA Ω Company K-type 30AWG fine wire thermocouples, length 2 meters, 20 pieces in total
Control Contact Power Supply	Current range AC (0–2) A
Operating Modes	Continuous mode, On/Off mode, Automatic temperature control mode
Continuous On/Off Mode	1. Continuous Mode Test Time: 0.01–99.99 hours 2. On/Off Mode Power On/Off Time: 0.01–99.99 hours 3.On/Off Count: 1–9999 times, stops automatically when the count is reached 4.Current Setting: Programmable control settings (can be configured according to IEC62196, with time and current combinations as shown in the table below)
Test Current Stability	±(1% of set value + 0.5A), response time approximately 1s
Current Display Accuracy	±(0.25% of reading + 0.25% of range), resolution 1A
