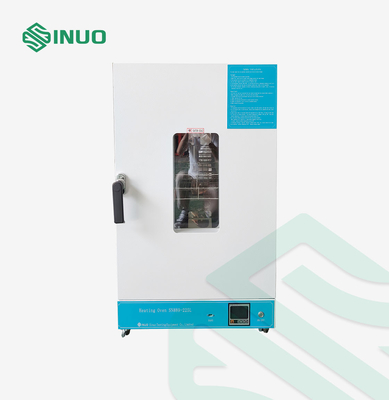

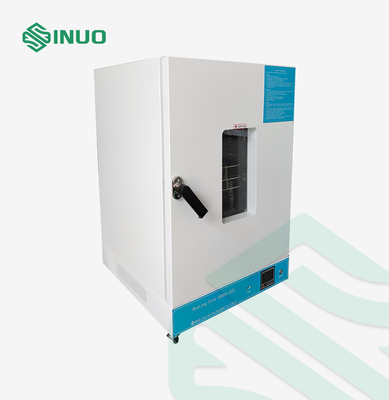

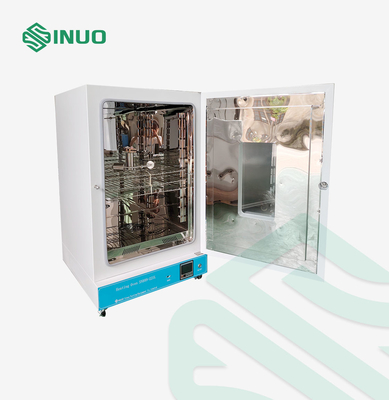

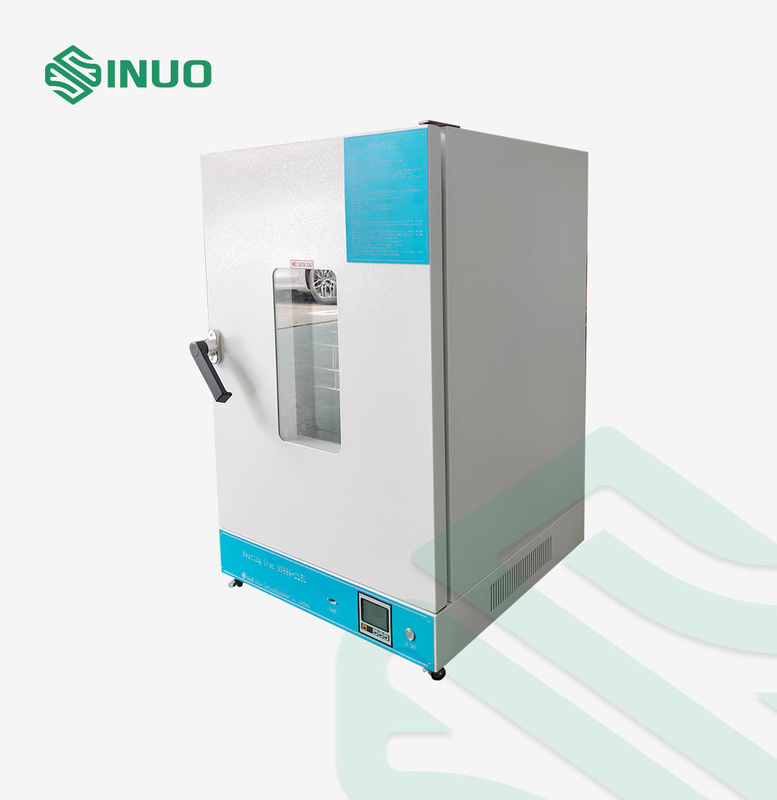

High Temperature Electronic Components Drying Oven Laboratory Heating Oven

Name: High Temperature Electronic Components Drying Oven Laboratory Heating Oven
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN889-225L
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN889-225L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Fluctuation:

±1°C

Display Resolution:

0.1°C

Temperature Uniformity:

±2.5°C

Power Rating:

2600 W

Outer Dimensions (W* D* H):

70cm*71cm*110cm

Working Area Size (W* D* H):

50cm*60cm**75cm

Structure Type:

Vertical

Temperature Range:

RT+10°C ~300°C

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

High Temperature Electronic Components Drying Oven Laboratory Heating Oven

Complied Standards & Clauses

This heating oven meets the requirements of multiple clauses and annexes of:

IEC 62368-1:2018: Clause 5.4.1.5.3, 5.4.1.10, Annex G.5.3.4, Annex G.13.6.2, Annex M.4.2, M.4.4.4, Annex P.4, Annex T.8
IEC 60950:2013: Clause 2.10.8.2, 4.2.7, 4.5.5, 4.7.3.2
IEC 60695-10-3: Fire hazard testing standards

Product Overview

The SN889-225L Programmable Heating Oven is specially designed for high-precision thermal testing and drying processes in accordance with IEC 62368-1:2018, IEC 60950:2013, and IEC 60695-10-3 standards. With a temperature range up to 300°C and excellent uniformity, this oven is ideal for use in electronics testing laboratories, certification environments, and R&D centers requiring stable, programmable heating conditions.

Key Features

Wide Temperature Range: RT +10°C to 300°C for various heating and testing scenarios
High Temperature Accuracy: ±1°C fluctuation, ±2.5°C uniformity
LCD Display: Easy to read and operate with 0.1°C resolution
RS485 Communication Interface: Allows data communication and remote control integration
Robust Vertical Structure: Space-saving and efficient design
Safety First: Overheat protection, stable grounding, and user operation guidance included

Technical Parameters

Specification	Details
Power Supply	AC 220V, 50Hz
Power Rating	2600 W
Temperature Range	RT +10°C ~ 300°C
Temperature Resolution	0.1°C
Temperature Fluctuation	±1°C
Temperature Uniformity	±2.5°C
Display Type	LCD screen
Working Area Size (W×D×H)	50 × 60 × 75 cm
Overall Dimensions (W×D×H)	70 × 71 × 110 cm
Communication Interface	RS485 (right side of device)
Structure	Vertical type
