-40°C Temperature and Humidity Test Chamber Climatic Test Chamber 225L

Name: -40°C Temperature and Humidity Test Chamber Climatic Test Chamber 225L
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN881-225L
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN881-225L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Fluctuation:

±0.5℃

Humidity Fluctuation:

≤2.5%

Temperature Deviation:

≤±2.0℃

Humidity Deviation:

≤±3%

Internal Dimensions:

W600*H750*D500mm

External Dimensions:

W880*H1980*D1650mm

Heating Time:

≧2-3°C/min

Cooling Time:

≧1°C/min

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

225L Climatic Test Chamber

Temperature and Humidity Climatic Test Chamber

Product Description

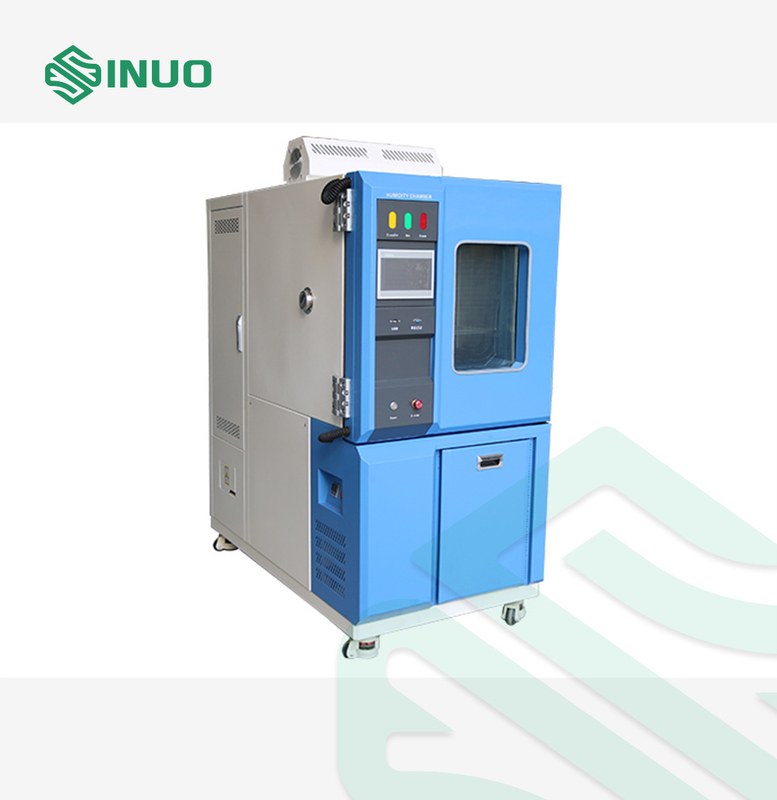

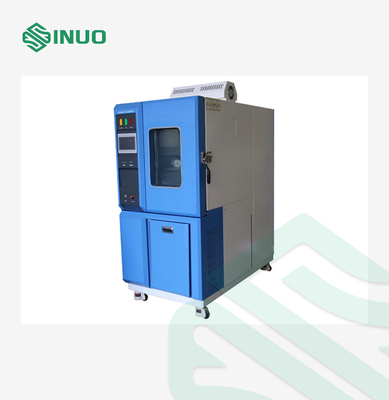

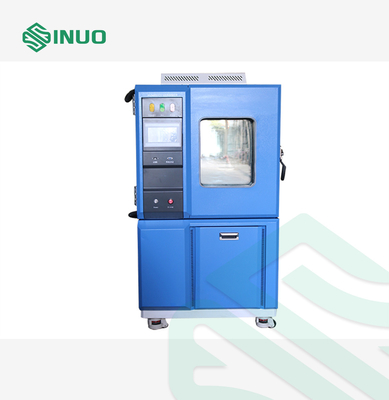

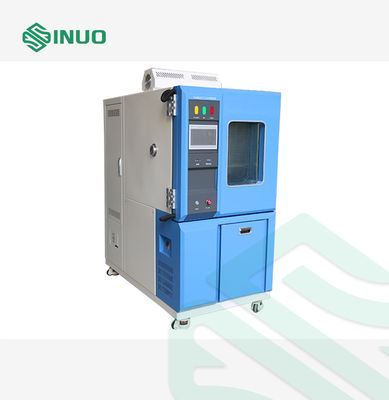

-40°C Temperature and Humidity Test Chamber Climatic Test Chamber 225L

Complied Standards & Clauses

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Product Overview

The SN881-225L (-40℃) Temperature and Humidity Chamber is a high-performance environmental simulation system designed for extreme temperature and humidity testing. Engineered to meet stringent international standards such as IEC60068 and IEC60335, it is an essential tool for verifying the durability, reliability, and safety of raw materials and finished products across a wide range of industries including electronics, electrical appliances, plastics, and more.
This chamber is your trusted partner to simulate harsh environmental conditions such as extreme cold, intense heat, high humidity, and rapid changes in climate—ensuring your products can withstand real-world challenges during transportation, storage, and usage.

Technical Parameters

Parameter	Specification
Internal Dimensions (W×H×D)	600 × 750 × 500 mm
External Dimensions (W×H×D)	880 × 1980 × 1650 mm
Temperature Range	-40°C ~ +150°C
Humidity Range	20% ~ 98% RH
Temperature Resolution	0.1°C
Temperature Fluctuation	±0.5°C
Temperature Deviation	≤±2.0°C
Humidity Fluctuation	≤2.5%
Humidity Deviation	≤±3%
Heating Rate	≥2–3°C/min
Cooling Rate	≥1°C/min

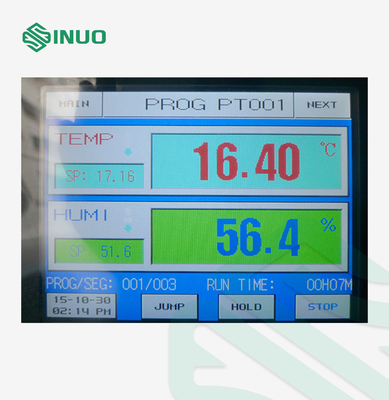

Controller	7" Touchscreen, UESoft Programmable
Refrigeration System	Panasonic/Emerson Scroll Compressor, R404A
Noise Level	≤70 dB (1m distance, A-weighted)
Power Supply	AC 380V, 50Hz, 3-phase 4-wire + ground
Power Consumption	Approx. 8kW
Max Current / Switch	21A / 32A (leakage protector)
Material (Inner/Outer)	SUS304 Stainless Steel / A3 Sprayed Steel
Insulation	100mm Rigid Polyurethane Foam

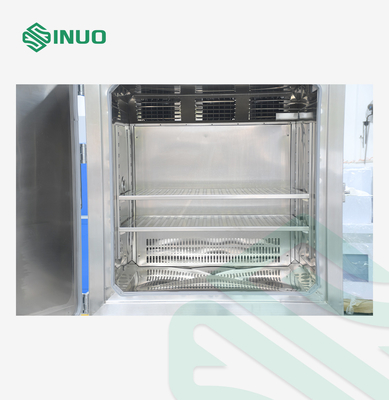

Observation Window	400 × 600 mm, 3-layer tempered glass

Details

-40°C Temperature and Humidity Test Chamber Climatic Test Chamber 225L 0
