IEC 60695-11-5 Flammability Test Equipment Needle Flame Test Chamber

IEC 60695-11-5 Flammability Test Equipment Needle Flame Test Chamber

Brand Name:	Sinuo
Model Number:	SN772
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Combustion Angle:

Tilt 45°( Testing ) Or Vertical ( When Adjust The Height Of The Flame)

Gas Category:

95% Butagas ( Can Use The Bottled Lighter Gas)

Temperature Test Range:

0~1000℃

Flame Warming Requirement:

100°to 700°

Height Of The Flame:

12±1mm Adjustable

Volume Size Adjustment:

Flowmeter Adjustment

Equipment Size:

1100mm* 550mm* 1100mm

Equipment Weight:

120KGS

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

IEC 60695-11-5 Flammability Test Equipment

Needle Flame Test Chamber

Needle Flame Test Equipment

Product Description

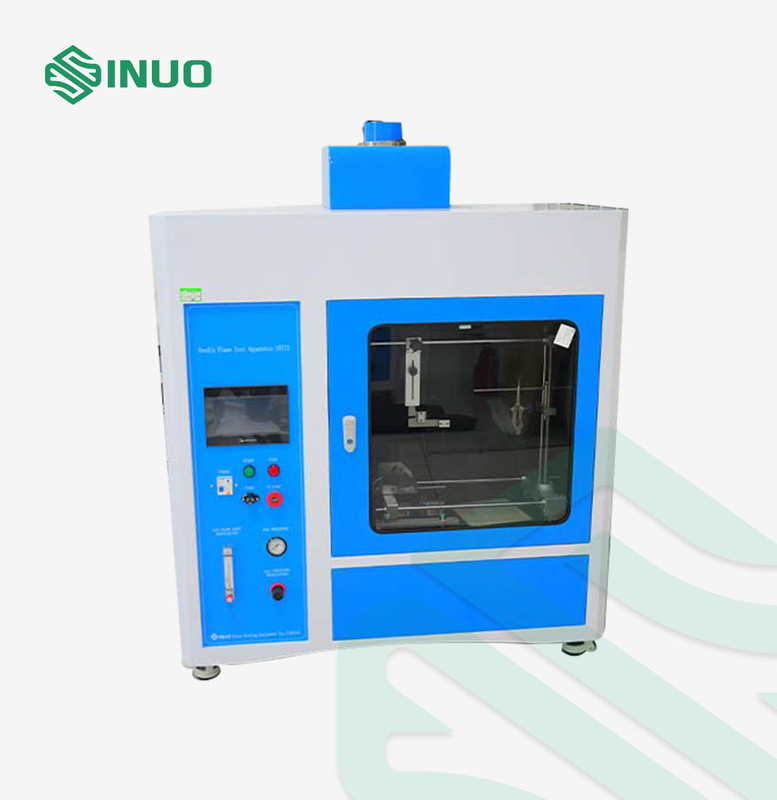

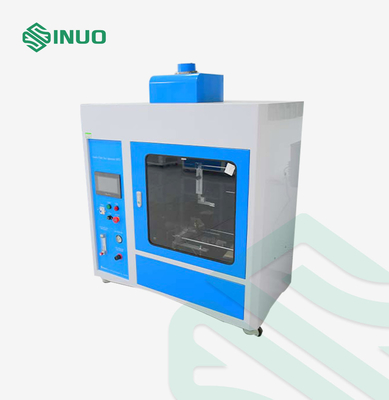

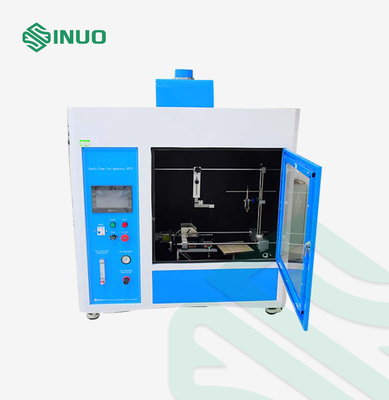

IEC 60695-11-5 Flammability Test Equipment Needle Flame Test Chamber

Complied Standards & Clauses

This tester conforms to the standard requirement of IEC60695-11-5, required by IEC 60598-1 clause 4.15.1, IEC60335-1 clause 30.2.3.2, Annex E, clause 13.3, etc.

Equipment Overview

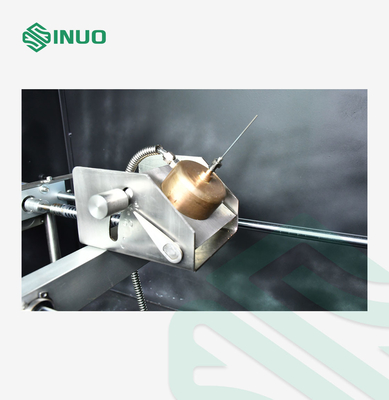

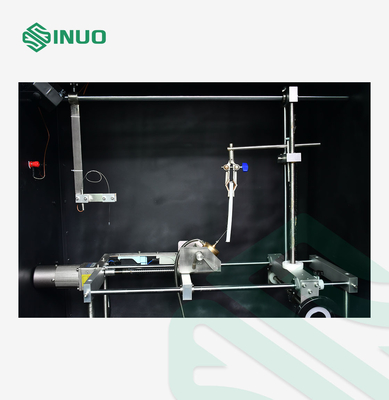

The Needle Flame Tester consists of a Ф0.9mm needle-shaped burner that tilts with the angel of 45°and provide it with butane gas. The fire hazard of the equipment when there is flammule inside the equipment that caused due to the fault condition is assessed by whether the specimen can be ignited or the combustion time and length.

The Needle Flame Tester has advanced PLC control and 7 inch color touch screen, it is suitable for the research, production and quality testing department of lighting equipment, low-voltage apparatus, household appliance, machine tool electric appliance, electrical machine, electric tool, electronic instrument, electrotechnical instrument, electrical connector, electrical and electronical equipment and other components. It is also suitable for insulating material, engineering plastics or other solid combustion material industry.

Technical Parameters

Parameter/ model	SN773
Working voltage	AC 230V/60Hz
Control	PLC
Display	7 inch color touch screen
Timing device	9999X0.1S
Combustor	Inner boreφ0.5mm ± 0.1mm , OD ≤φ0.9mm, L ≥ 35mm, stainless steel
Combustion angle	tilt 45°( testing ) or vertical ( when adjust the height of the flame)
Height of the flame	12±1mm adjustable(with flame height gauge)
Gas category	95% butagas ( can use the bottled lighter gas)
Range of temperature test	0~1000℃
Flame warming requirement	From 100°to 700°,time for standard values within 23.5S±1S
Temperature thermocouple	φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple
Work shop	0.5 cube, staunless steel case, black yogon background
Testing process	Test procedure automatic control, independent air draft
Volume size adjustment	Flowmeter adjustment
Equipment size & weight	1100mm* 550mm* 1100mm, 120KGS

Details

IEC 60695-11-5 Flammability Test Equipment Needle Flame Test Chamber 0
