Electromagnetic Vibration Testing Machine Random Sinusoidal Vibration Test

Electromagnetic Vibration Testing Machine Random Sinusoidal Vibration Test

Brand Name:	Sinuo
Model Number:	SN553- EV211HG60VT60VCS-2
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Maximum Sinusoidal Excitation Force:

1100Kg.f Peak

Maximum Random Exciting Force:

1100Kg.f Rms

Maximum Impact Excitation Force:

2200Kg.f

First-order Resonant Frequency:

3200 Hz±5%

Frequency Range:

1～3300 Hz

Maximum Displacement:

51 Mm P-p

Maximum Speed:

2.0m/s

Flux Leakage:

＜10gauss

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Random Vibration Testing Machine

Electromagnetic Vibration Testing Machine

Sinusoidal Vibration Testing Machine

Product Description

Electromagnetic Vibration Testing Machine Random Sinusoidal Vibration Test

Complied Standards & Clauses

Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards, such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM,IEC62133 UN38.3 UL2054 IEC 60086 ECE R100., etc.

Product Overview

The SN553-EV211HG60VT60VCS-2 Electromagnetic Vibration Testing Machine is a high-performance testing solution designed to simulate and analyze the vibration effects on components and devices under real-world environmental conditions. Suitable for a wide range of applications — including electronics, aerospace, automotive, military, and household appliances — this machine supports various testing modes such as sinusoidal, random, and shock.

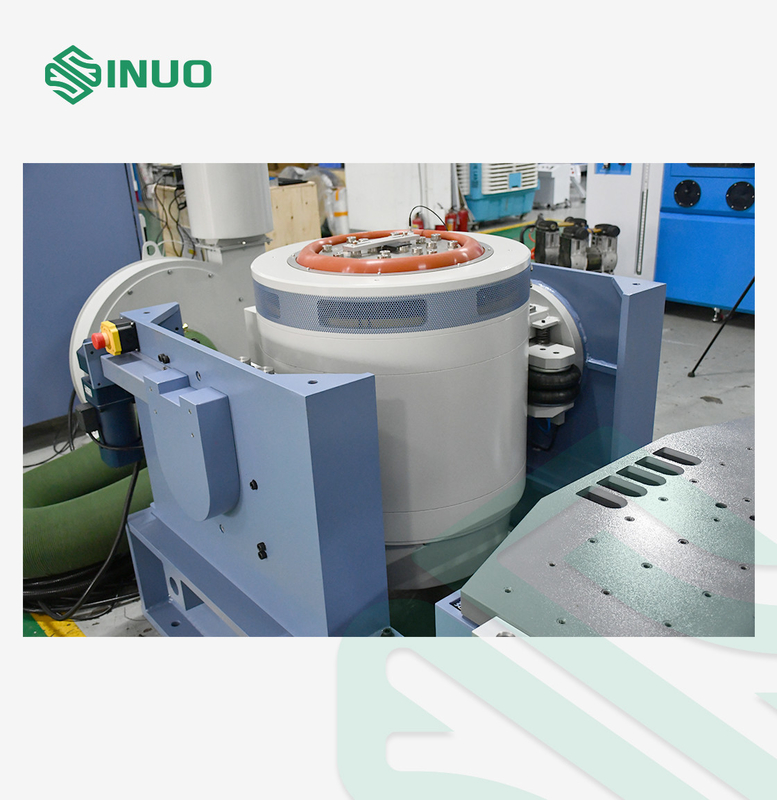

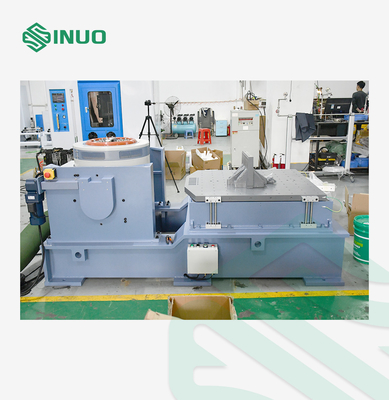

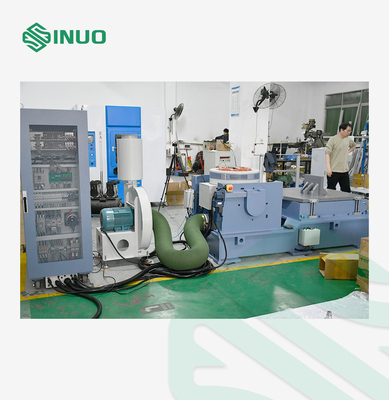

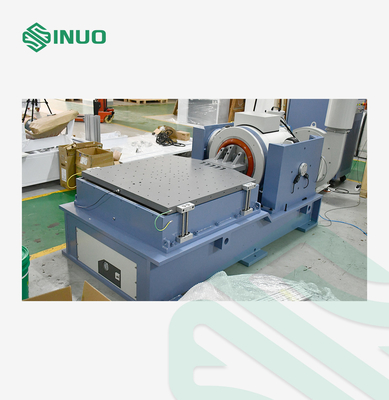

The system integrates a robust electromagnetic vibration generator, digital control system, vertical and horizontal extension platforms, and intelligent servo protection. It complies with major international standards (GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, ASTM), ensuring test accuracy, safety, and repeatability. It is engineered for reliability with advanced DSP closed-loop control, modular vibration analysis capabilities, and efficient air cooling and isolation systems.

Technical Parameters

Parameter	Value
Max. Sinusoidal Excitation Force	1100 kgf (peak)
Max. Random Excitation Force	1100 kgf (rms)
Max. Shock Excitation Force	2200 kgf
Frequency Range	1 – 3300 Hz
Max. Displacement	51 mm (p-p)
Max. Speed	2.0 m/s
Max. Acceleration	100 G (980 m/s²)
First-order Resonant Frequency	3200 Hz ±5%
Payload Capacity	300 kg
Isolation Frequency	2.5 Hz
Moving Coil Diameter	240 mm
Moving Coil Weight	10 kg

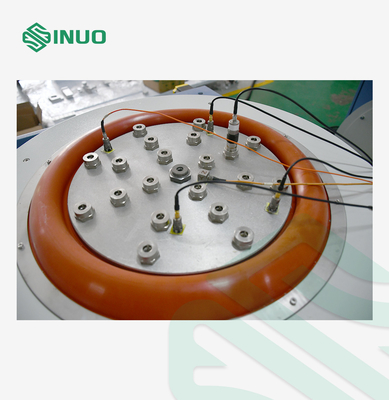

Screw Holes on Table	16 × M10
Flux Leakage	<10 gauss
Eccentric Moment	300 N·m
Dimensions (L×W×H)	920 × 740 × 785 mm
Weight (without horizontal table)	1100 kg
