ISO20653 Dustproof Testing Machine Automotive Test Equipment 2160L

Name: ISO20653 Dustproof Testing Machine Automotive Test Equipment 2160L
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN441-2160L
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN441-2160L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Talc Dosage:

2～5kgm³

Dust Concentration:

2kg/m³

Coarse Dust:

Below 150um

Fine Dust:

Below 75um

Temperature Range:

RT+10℃～60℃

Air Flow Meter:

1-20L/M

Inner Chamber Size:

1500*1200*1200mm(W*D*H)

Outer Chamber Size:

1900*2000*2500 Mm(W*D*H)

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Automotive Dustproof Testing Machine

Dustproof Testing Machine

2160L Dustproof Testing Machine

Product Description

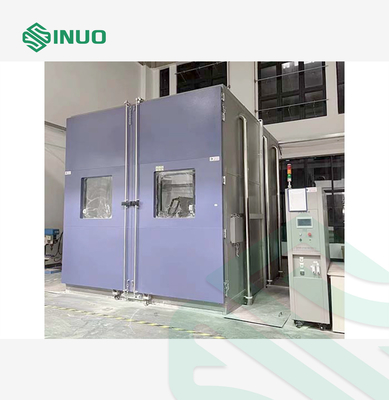

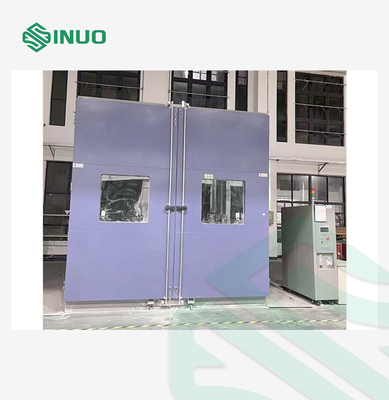

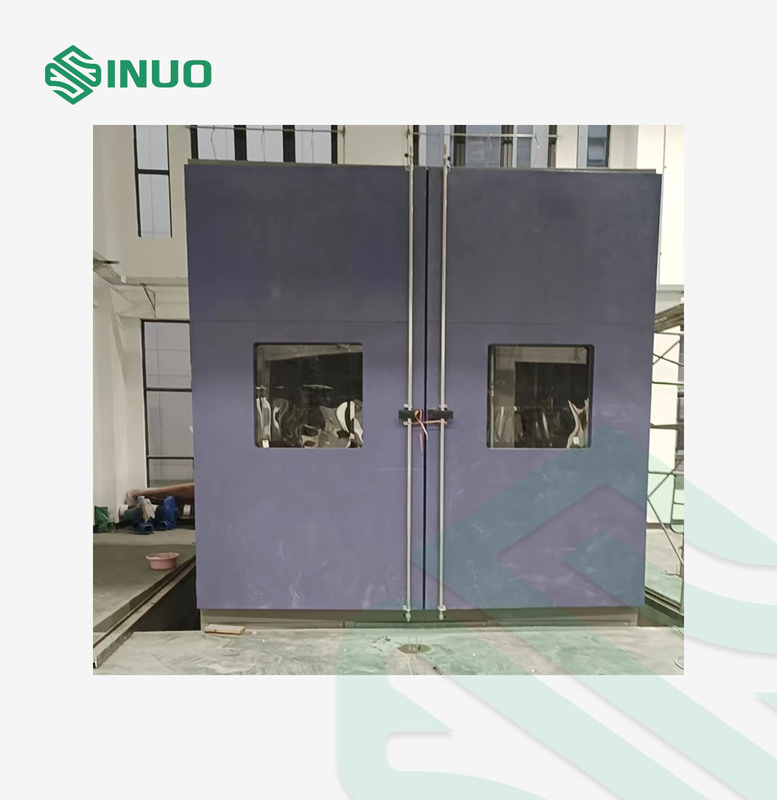

ISO20653 Dustproof Testing Machine Automotive Test Equipment 2160L

Complied Standards & Clauses

Conforms to IEC60068-2-68-La2, ISO20653-La2, IEC60529, etc.

Product Overview

The SN441-2160L Sand and Dust Test Chamber is your answer to ensuring ultimate durability and ingress protection. Engineered to simulate extreme sandy and dusty environments, this chamber helps manufacturers verify product reliability under real-world conditions—making it ideal for automotive, electronics, and defense industries.

Built according to IEC60068-2-68, ISO20653, and IEC60529 standards, this chamber mimics dust-filled airflow that naturally or artificially surrounds a product. It tests the seal integrity and operational endurance of your product during storage, usage, and transportation.

Key Features:
Continuous dust circulation with conical funnel and turbine fan design
Customizable test duration, air pressure, and dust-blowing cycles
Precision vacuum and airflow regulation system

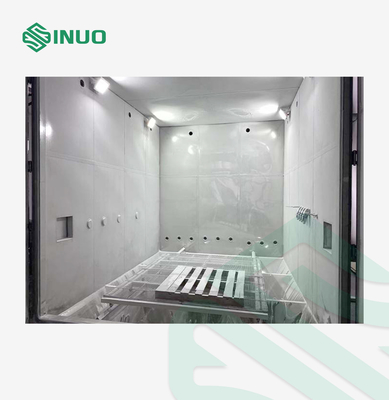

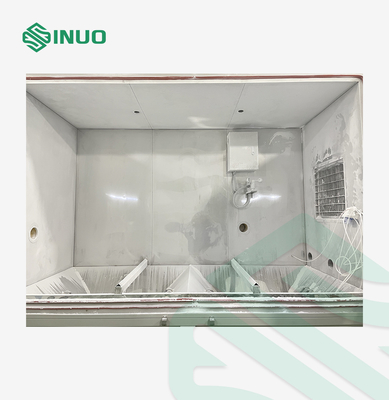

Robust build with stainless steel inner chamber and anti-static coated exterior
PLC-controlled interface with a user-friendly touch screen

Technical Parameters

Parameter	Specification
Inner Chamber Size (W×D×H)	1500×1200×1200 mm
Outer Chamber Size (W×D×H)	1900×2000×2500 mm (approx.)
Dust Baking Temperature	RT +10°C ~ 60°C
Dust Particle Size	Fine: <75μm, Coarse: <150μm
Air Flow Rate	≤ 2 m/s
Dust Concentration	2 kg/m³
Talc Dosage	2–5 kg/m³
Dust Blowing Method	Top-down circulation
Flow Meter Range	1–20 L/min
Wire Mesh Diameter	50 μm
Nominal Mesh Spacing	75 μm
Shock Time / Test Duration	1s–99h (adjustable)
Cycle Timing	1s–99h (adjustable)
Vacuum Timing	1s–99h (adjustable)
Controller	PLC + Touchscreen (Sinuo)
Vacuum System	Regulating valve, pump, connectors
Dust Heating System	Stainless steel mica heating jacket
Inner Material	SUS201 Stainless Steel Mirror Panel
Outer Material	A3 Iron Plate with Electrostatic Spray
Power Supply	AC380V, 50Hz, 3-phase, 32A breaker
Power Consumption	3 KW (no load)
Load-bearing Capacity	50 kg
Observation Window / Light	1 pc each
Dustproof Socket Output	AC220V 16A
Safety Features	Phase sequence, leakage, over-temp, etc.

Details

ISO20653 Dustproof Testing Machine Automotive Test Equipment 2160L 0
