-30℃ Programmable Temperature and Humidity Chamber Environmental Test Chamber

Name: -30℃ Programmable Temperature and Humidity Chamber Environmental Test Chamber
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN885-1000L
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN885-1000L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Chamber Material (W*H*D):

1000*1000*1000 Mm(W*H*D)

External Chamber Material (W*H*D):

1250*2150*1980 Mm(W*H*D)

Temperature Range:

-30 °C ~+100°C

Humidity Range:

20%～98%RH

Temperature Fluctuation:

±0.5℃

Humidity Fluctuation:

≤2.5%

Temperature Deviation:

≤±2.0℃

Humidity Deviation:

≤±3%

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

-30℃ Programmable Temperature and Humidity Chamber Environmental Test Chamber

Complied Standards & Clauses

It conforms to the following standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Product Overview

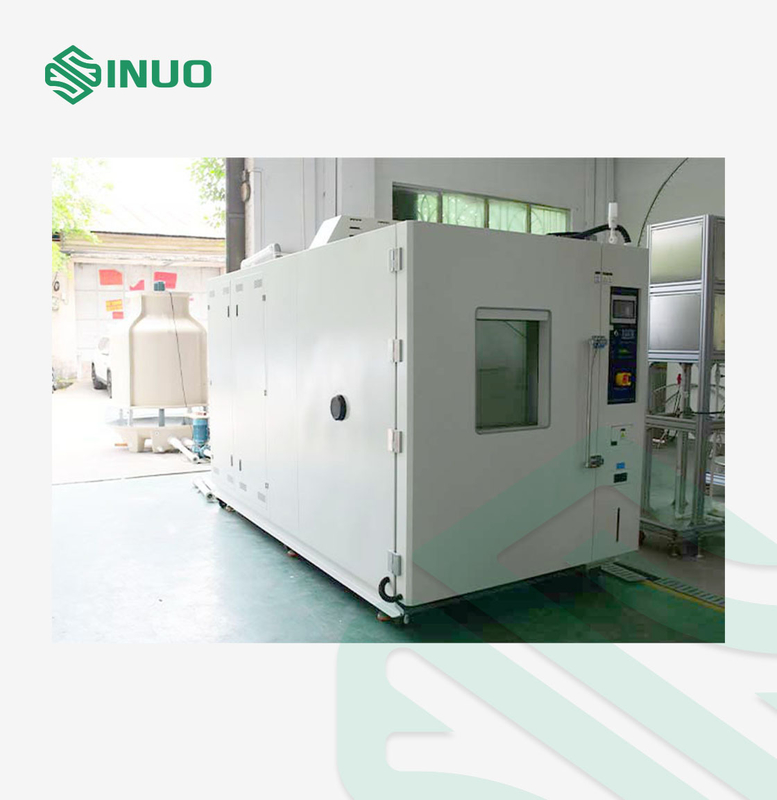

SN885-1000L(-30℃) Temperature and Humidity Chamber is a high-performance environmental testing solution designed to simulate extreme temperature and humidity conditions for large-scale products or components. With a wide range of -30°C to +100°C and humidity from 20% to 98% RH, it enables accurate and programmable testing of product reliability under harsh climate scenarios.

This chamber is widely used in electronics, automotive, aerospace, and materials industries for temperature cycling, humidity exposure, and storage/transport simulations. Its robust structure, intuitive touchscreen control system, and compliance with international standards such as IEC 60068 series make it an ideal choice for demanding R&D and quality assurance environments.

Engineered for stability, efficiency, and safety, this system ensures repeatable and precise test results — even under high load or extended testing cycles.

Technical Parameters

Item	Specification
Model	SN885-1000L(-30℃)
Inner Dimensions (W×H×D)	1000 × 1000 × 1000 mm
External Dimensions (W×H×D)	1250 × 2150 × 1980 mm
Temperature Range	-30°C ~ +100°C
Humidity Range	20% ~ 98% RH
Temperature Fluctuation	±0.5°C
Humidity Fluctuation	≤2.5% RH
Temperature Deviation	≤±2.0°C
Humidity Deviation	≤±3% RH
Heating Rate	≥6°C/min (from -30°C to +100°C, no load)
Cooling Rate	≥6°C/min (from +100°C to -30°C, no load)
Noise Level	≤70dB(A)

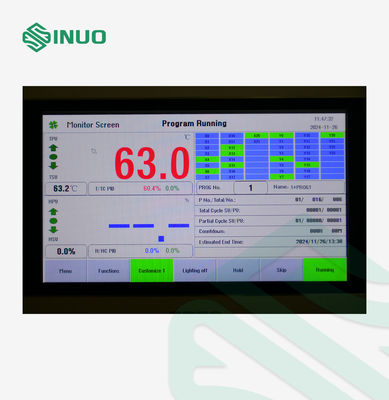

Controller	7-inch color touchscreen (programmable)
Refrigeration System	Water-cooled, Emerson scroll compressor ×2
Insulation Material	100mm high-temp resistant rigid polyurethane foam
Observation Window	400 × 600 mm, triple-layer vacuum tempered glass
Humidity & Temp Sensors	PT100 Level A Accuracy
Heating Power	8KW stainless steel fin heater
Power Supply	AC380V, 50Hz, 3-phase 4-wire + PE
Maximum Power	≈ 20kW
Standards Compliance	IEC 60068-2-1 / -2 / -30 / -78
Safety Protection	Over-temp, over-current, leakage, fan overload etc.
