EV Charging Interface Test Equipment Mechanical Endurance Test Machine

EV Charging Interface Test Equipment Mechanical Endurance Test Machine

Brand Name:	Sinuo
Model Number:	SNQC1005
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Sample Range:

AC/DC EV Charging Connectors, Industrial Plugs And Sockets

Driving Method:

Servo Motor + Electric Rotary Motion + Auxiliary Pneumatic Cylinder

Control System:

PLC + 7" HMI Touch Screen

Motion Type:

Manual Or Programmable Automatic Operation

Test Frequency:

0–10 Cycles/min (adjustable)

Test Stroke:

0–150mm, Resolution: 0.01mm

Test Speed:

0–900mm/s, Adjustable Via Touchscreen

Force Sensor Range:

0–500N

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

EV Charging Interface Test Equipment

Mechanical Endurance Test Machine

Sturdy EV Charging Interface Test Equipment

Product Description

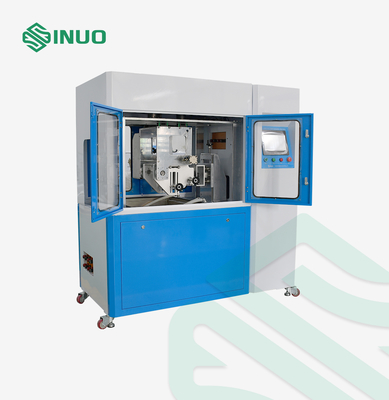

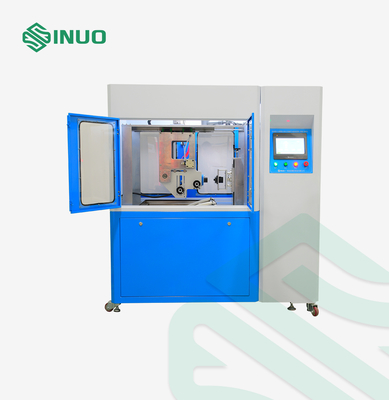

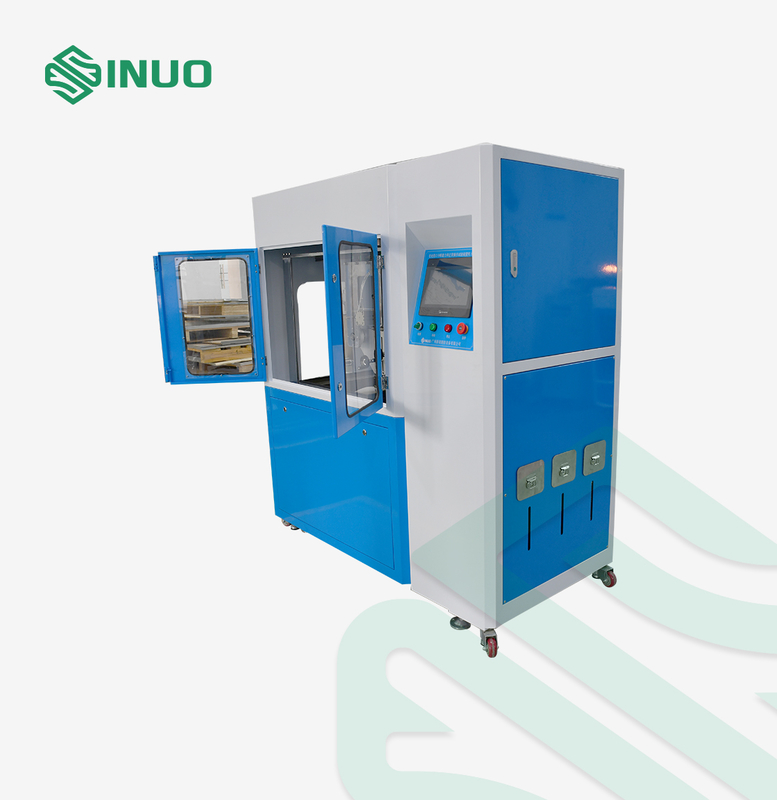

EV Charging Interface Test Equipment Mechanical Endurance Test Machine

Complied Standards & Clauses

This test equipment meets the requirements of IEC 62196-1:2022, etc.

Equipment Overview

This advanced test system is engineered to evaluate the mechanical, thermal, and electrical durability of electric vehicle charging interfaces and industrial plugs/sockets under real-world operational stress. Designed in full compliance with the latest GB/T and IEC standards, it performs breaking capacity tests, normal operation (life cycle) tests, and mechanical locking function tests.

Equipped with a servo-driven actuation system, PLC intelligent control, and adjustable 3-axis fixtures, this machine supports automatic plug/unplug motion, programmable test cycles, force monitoring, and environmental contamination testing (acid rain, saltwater, turbid water). It’s an ideal solution for R&D, quality control, and certification labs in the EV and industrial power connector industries.

Technical Parameters

Item	Specification
Product Name	Charging Interface Breaking Capacity and Normal Operation Test Equipment
Standards Complied	GB/T 20234.1 & 4-2023, GB/T 11918.1-2014, IEC 62196-1:2022
Test Items	a) Mechanical Locking Durabilityb) Breaking Capacityc) Normal Operation
Sample Range	AC/DC EV charging connectors, industrial plugs and sockets
Driving Method	Servo motor + electric rotary motion + auxiliary pneumatic cylinder
Control System	Mitsubishi PLC + 7" HMI touch screen
Motion Type	Manual or programmable automatic operation
Test Frequency	0–10 cycles/min (adjustable)
Test Stroke	0–150mm, resolution: 0.01mm
Test Speed	0–900mm/s, adjustable via touchscreen
Force Sensor Range	0–500N, accuracy ≤±0.5% F.S., resolution ≤0.1N
Locking Mechanism Testing	Simulates real-world locking/unlocking operation (0–999999 cycles presettable)
Pull-out Force Range	0–200N, adjustable, accuracy: 0.1N, hold time: 60s
Load Connection	External load connection supported
Contamination Test	Built-in tanks for acid rain, salt water, and turbid water exposure
Soaking Parameters	Programmable: number of soaks, duration, drying time, and cycles
Rotation Feature	Auto 90° flipping for soaking tests
Test Duration	0–999999 cycles presettable
Breaking Capacity Contact Time	0.5–999.9s (presettable, standard requires 2–4s)

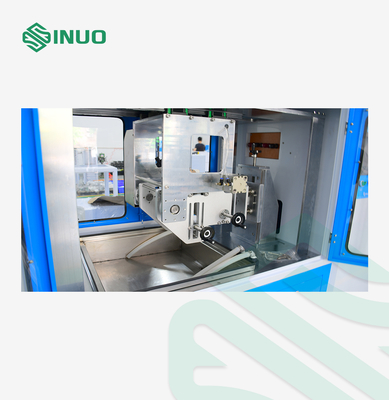

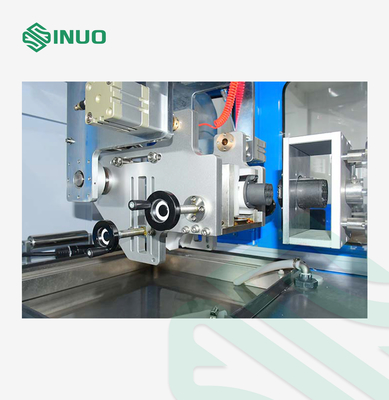

Fixture Design	3-axis adjustable fixture, compatible with GB/US/EU connectors
Detection Function	Load break detection with failure alarm and logging
Safety Protection	Grounding, short-circuit, overload, emergency stop
Power Supply (Main Unit)	AC220V ±10%, 50–60Hz, 2kW
Dimensions	Approx. W1000 × D750 × H1200 mm
Weight	Approx. 150 kg

Details

EV Charging Interface Test Equipment Mechanical Endurance Test Machine 0
