Computer Controlled Pressure Testing Automotive Hydrostatic Test Equipment

Brand Name:	Sinuo
Model Number:	SNQC1016
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Need Air Source:

0.2-0.8MPa, 1.0Nm3/min

High Pressure:

2-100Mpa

Measurement Accuracy:

±0.5%FS

Data Collection:

NI High-speed Acquisition Card

Test Station:

One

Exhaust System:

Semi-automatic

Test Medium:

Clean Water

Control System:

Computer Automatic Control

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

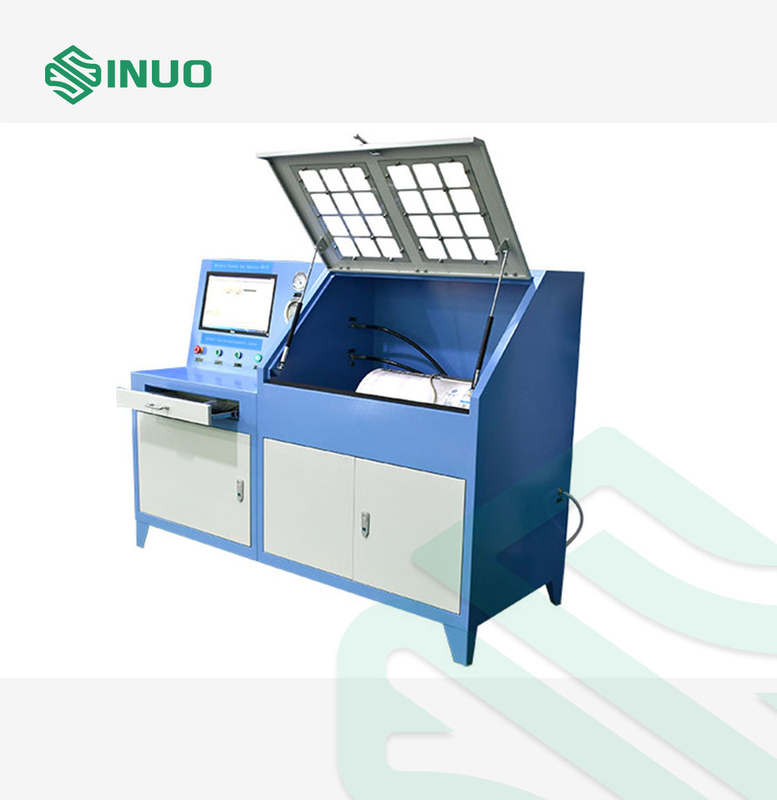

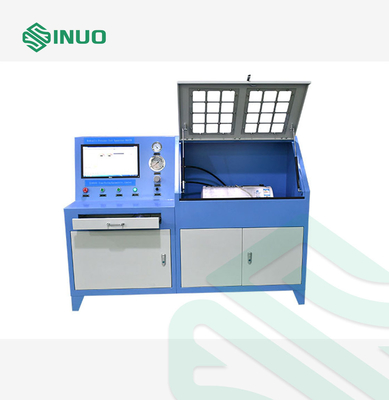

Computer Controlled Pressure Testing Automotive Hydrostatic Test Equipment

Complied Standards & Clauses

It can meet the national standard ISO6802, ISO6803, ISO8032, IEC 60335-2-34 and other standards.

Product Overview

Sinuo has rich experience in pressure testing. It provides reliable pressure/burst test equipment, leakage test equipment, and pressure pulse test equipment in the field of pipeline and reactor testing. It can perform pressure performance tests on hydraulic hoses, hydraulic hose assemblies, automobile brake pipes, pressure vessels, powertrain pipes and other pressure-resistant parts according to ISO6802, ISO6803, ISO8032, IEC 60335-2-34 and other standards.

Our company has developed a new type of pressure test device based on the working principle of the pneumatic booster device introduced from abroad and combined with the actual situation in my country. The burst (pressure resistance) test equipment produced by our company includes: hose pressure burst test bench, hose pressure pulse test machine, automobile parts pressure test bench, burst test bench, etc. This equipment meets other general and special international and domestic test standards for pressure components.

Technical Parameters

Item	Specifications
Need air source	0.2-0.8MPa, 1.0Nm3/min (gas source provided by the customer)
High pressure	2-100Mpa (automatic conversion with high pressure pump)
Pressure increase rate	The ratio is controllable, the adjustment range is 0.1-2MPa/S, and it can be adjusted arbitrarily.
Measurement accuracy	±0.5%FS
Time of pressure maintenance	Arbitrary setting, with seconds as the timing unit
Data collection	American NI high-speed acquisition card, acquisition rate 100,000 times/S.
Peak record	Measurement and control Labview software records
Test station	One

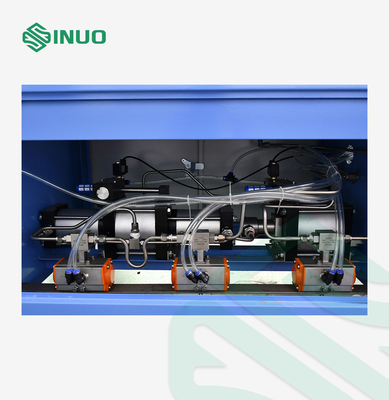

Power device	Gas-liquid booster pump
Exhaust system	Semi-automatic
Test medium	Clean water
Medium temperature	Normal temperature
Export flow rate	1.2L/min
Volume	30L
Operating temperature	0-80℃
Output interface	RC1/4 internal thread
Control box size	18007001300

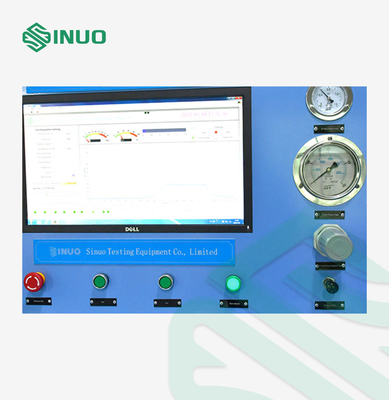

Control System	Computer automatic control
Monitor	Mosaic Industrial Display
Control Software	Labview Software
Test report	Microsoft Office
