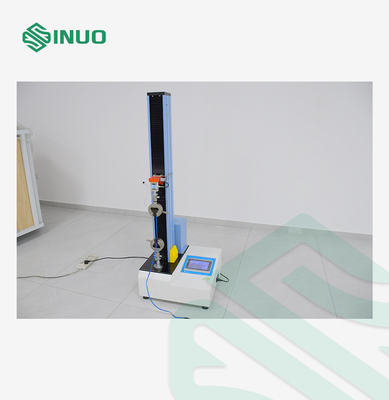

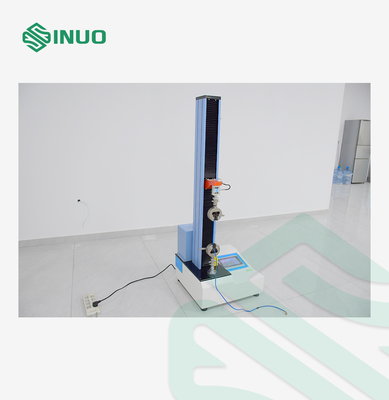

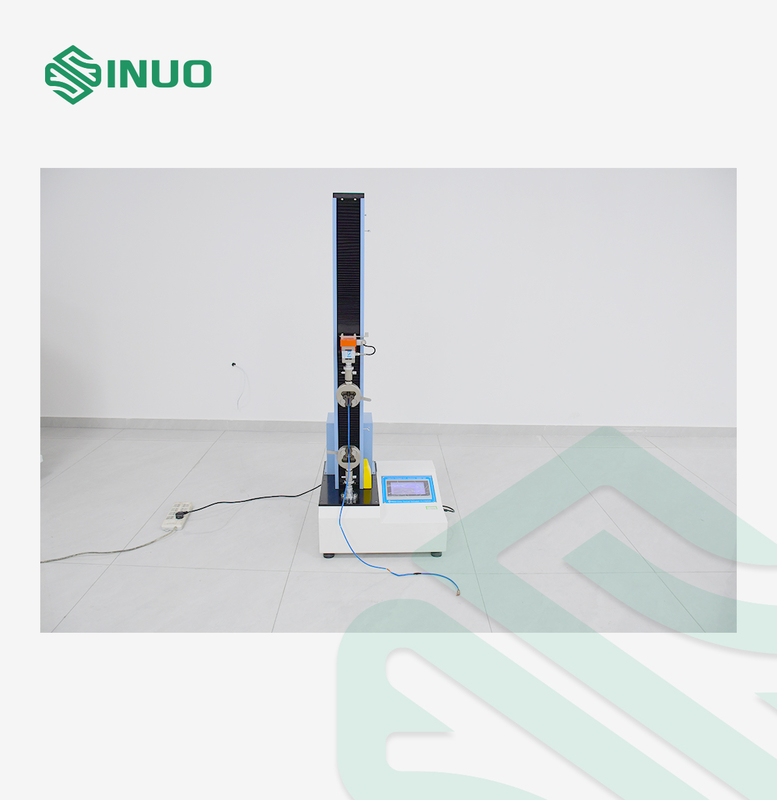

EV Plug Tensile Test Equipment Universal Testing Machine for EV Connector

EV Plug Tensile Test Equipment Universal Testing Machine for EV Connector

Brand Name:	Sinuo
Model Number:	SNB02C
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Capacity:

200(kgf)

Software:

Professional Test Software

Switchable Force Units:

N, KN, Kgf, Gf, Lbf

Switchable Intensity Units:

Pa, KPa, Mpa, Kgf/cm2, Lbf/in2

Switchable Displacement Units:

Mm, Cm, In

Stroke (including Fixture):

800mm

Test Speed:

0.01-500mm/min

Displacement Decomposition:

0.001mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

EV Plug Tensile Test Equipment Universal Testing Machine for EV Connector

Complied Standards & Clauses

This universal tensile testing machine with customized fixtures can achieve the testing according to IEC 62196-1Ed.4CDV 2020 clause 9, 13.3.2,16.9, 26.7.3, table 4.

Product Overview

This machine is controlled by computer. It is widely used in the mechanical performance test of rubber, plastic, wire and cable, textile, waterproof material, non-woven fabric and other non-metallic materials, as well as metal wire, metal foil, metal plate and metal rod. Cooperating with special fixtures, it is also suitable for various tensile, compression, peeling, shearing, tearing, bending (folding) tests of various finished products. Multiple data can be printed. Graphical output comparison can be made according to different data, with high control precision and easy operation. Modular design is adopted, and all kinds of accessories are complete and flexible.

Technical Parameters

Parameter	Specification
Test Force Range	0–2 kN
Strength Measurement Display Accuracy	0.001 N
Unit Switching	Kg, N, Lb
Load Analysis Degree	1/250000
Loading Accuracy	±0.2%
Displacement Unit Switching	mm, cm, in
Displacement Display Accuracy	0.01 mm
Test Stroke	800 mm
Effective Test Width	400 mm
Speed Test Range	0.01–500 mm/min (Stepless Speed Regulation)
Transmission System	Servo Motor + Taiwan ZPT Ball Screw + TM2101 Software
Safety Devices	Overload Emergency Stop, Stroke Limit, Auto Breakpoint Stop

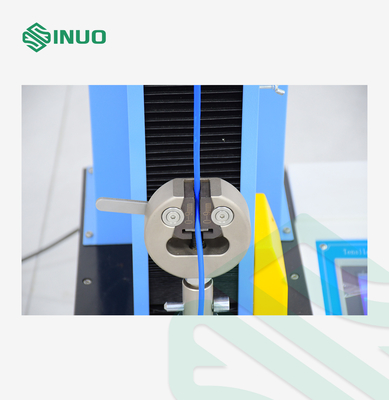

Fixtures	Custom Wire Tension Fixtures Based on Customer Products
Accessory Configuration	Includes a Set of Desktop Computer
Operation Mode	Computer Control, Windows Platform with Intuitive Interface and Help Prompts

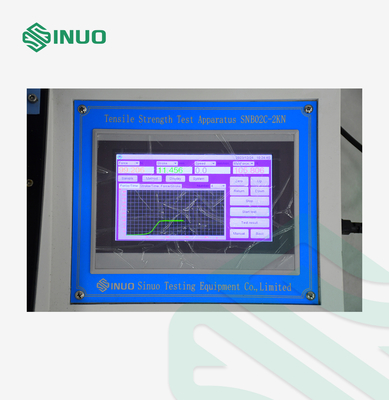

Software Capabilities	Multi-thread Parallel Processing, Real-Time Curve Display (Force-Displacement, Force-Time, Displacement-Time, Stress-Strain), MS Word Report Output
Machine Dimensions	Approx. 800 × 500 × 1500 mm
Power Supply	220V / 60Hz
Power Consumption	1.0 kW
Machine Weight	Approx. 150 kg
