IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment

Name: IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN447
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN447
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

IPX5 Nozzle Size:

Ø6.3 Mm

IPX6 Nozzle Size:

Ø12.5 Mm

IPX5 Water Delivery Rate:

12.5 ± 0.625 L/min

IPX6 Water Delivery Rate:

100 ± 5 L/min

Turntable:

Ø600 Mm

Load Capacity:

≤ 50 Kg

Control System:

PLC And Touchscreen Control

Pressure Gauge:

0–0.25 MPa, Digital Display

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

IPX5 water jet test system

IPX6 water jet test system

hose nozzle waterproof testing equipment

Product Description

IPX5 IPX6 Water Jet Test System Hose Nozzle Waterproof Testing Equipment

Complied Standards & Clauses

Conforms to IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX5 and IPX6.

Product Overview

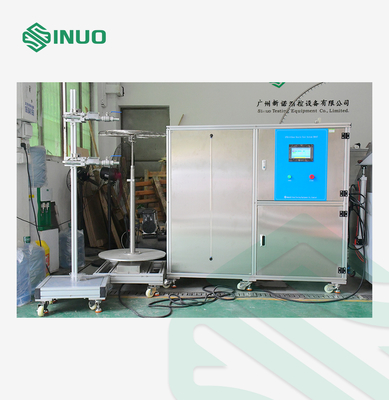

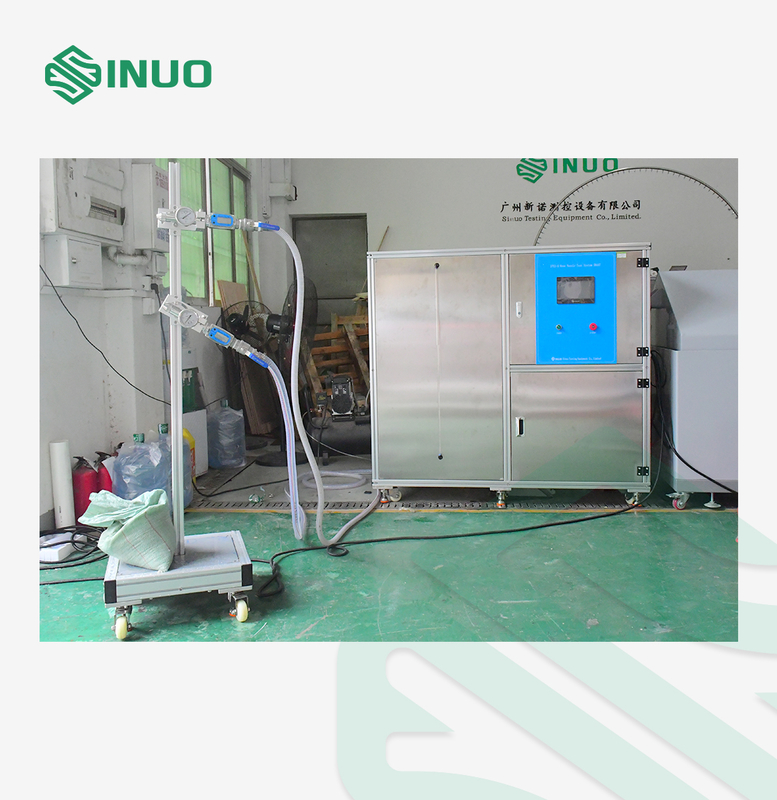

The SN447 IPX5~6 Hose Nozzle Water Jet Test System is engineered to verify the water ingress protection of enclosures for electronic and electrical devices, automotive components, motorcycle parts, household appliances, lighting fixtures, and sealing elements. It simulates high-pressure water jets as defined in IEC 60529 IPX5 and IPX6, ensuring your product complies with international waterproof standards.

This system controls water flow precisely to meet standard delivery rates, using high-precision nozzles to spray the enclosure from all practicable directions. It features a PLC intelligent control system, adjustable jet angle, and a sturdy rotating turntable, offering reliable and repeatable IP testing performance.

Technical Parameters

Category	Specification
Standards Compliance	IEC 60529-2013 (IPX5 and IPX6)
Nozzle Size	IPX5: Ø6.3 mm IPX6: Ø12.5 mm
Water Delivery Rate	IPX5: 12.5 ± 0.625 L/min IPX6: 100 ± 5 L/min
Nozzle to Enclosure Distance	2.8 m (within standard range of 2.5 – 3.0 m)
Jet Angle	Adjustable water jet direction
Turntable	Ø600 mm, 1 rpm, load capacity ≤ 50 kg
Test Duration	0.01 s – 99.9 min, programmable

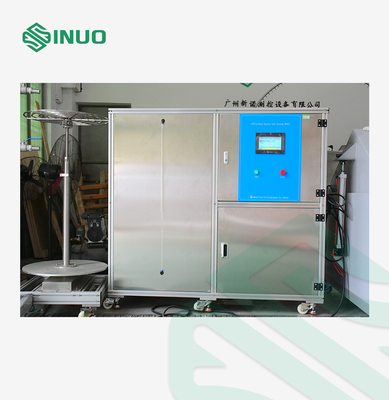

Control System	PLC and touchscreen control
Water Storage Tank	500 L stainless steel, open type, with float valve & level alarms

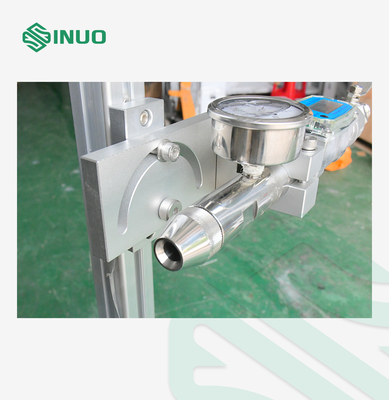

Nozzle Mounting	Fixed support for spray and hose nozzles

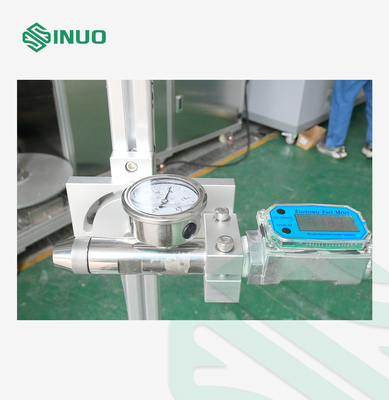

Pressure Gauge	0–0.25 MPa, digital display
Safety Protections	Phase sequence, leakage, water shortage, abnormal operation
Power Supply	AC 380V, 50 Hz, 4 kW
