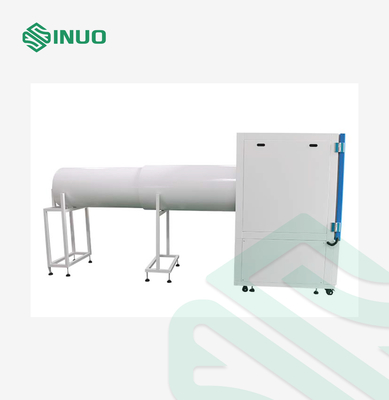

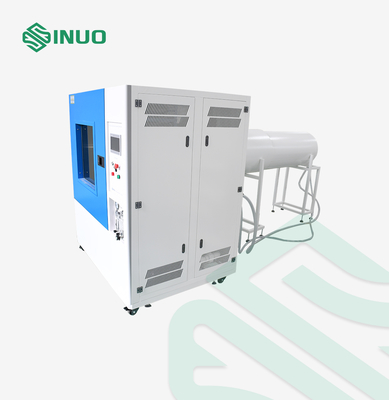

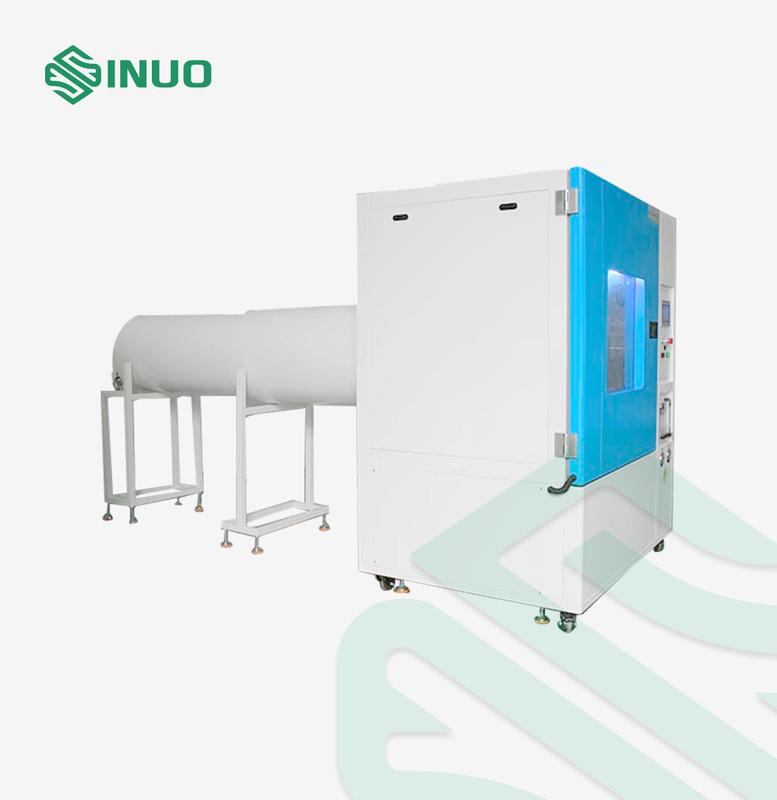

Oscillating Tube Waterproof Tester IPX3 IPX4 IPX5 IPX6 Test Chamber

Oscillating Tube Waterproof Tester IPX3 IPX4 IPX5 IPX6 Test Chamber

Brand Name:	Sinuo
Model Number:	SN4416A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Chamber:

L1000*W1000*H1000mm

Outer Chamber:

L1480*W3800*H1800mm

Turntable Speed:

1-5r/min (adjustable)

Test Time:

0-999 Min

Equipment Dimensions:

2770mm(L)*1330mm(W)*1750mm(H)

Total Weight:

350kg

IPX5 Nozzle Jet Aperture:

6.3mm

IPX6 Nozzle Jet Aperture:

12.5mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

Oscillating Tube Waterproof Tester IPX3 IPX4 IPX5 IPX6 Test Chamber

Complied Standards & Clauses

Conforms toIEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.

Product Overview

Water can be a powerful enemy of electronics — from corrosion and deformation to dangerous short circuits that may lead to fire. The IPX3~IPX6 Oscillating Tube and Jet Nozzle Test Chamber is designed to simulate real-world rain and water jet conditions to ensure your products can withstand moisture exposure and meet IEC 60529 waterproof standards.

This chamber provides a reliable and repeatable testing environment for assessing the water resistance of electronic devices, lighting fixtures, electric cabinets, automotive components, and more. It enables comprehensive testing under controlled conditions using oscillating tubes and high-pressure jet nozzles — covering IPX3, IPX4, IPX5, and IPX6 testing requirements.

Whether you’re in R&D, production, or quality assurance, this equipment helps evaluate and improve product design, enhance safety, and ensure compliance — all in one robust system.

Technical Parameters

Inner Chamber Size	L1000W1000H1000mm
Outer Chamber Size	L1480W3800H1800mm
Turntable Diameter	￠400mm
Turntable Maximum Load Bearing	10KG
Turntable Speed	1-5r/min (adjustable)
Turntable Rotation Method	Always positive / positive and negative alternate
Flow Adjustment Method	Manually adjust flow by adjusting flow meter on the panel
Test Time	0-999 min
Power supply for sample	Configured with a waterproof socket inside the chamber for client to power on sample during test
Equipment dimensions	Approx.2770mm(L)1330mm(W)1750mm(H)
Total Weight	Approx. 350kg
Required site place	3.2m(L)2m(W)2m(H)
IPX34 Oscillating Tubes Parameters
Oscillation Tube	R200 mm and R400mm
Distance between Nozzle Sample	Within 200mm
Spray Aperture Spacing	50 mm
Oscillating Tube Swing Angle	±60° (IPX3), approximately ±160°(IPX4) (Note: standard requires IPX3:120°; IPX4: almost 360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
Angle Between Two Holes	120°(IP3) 180°(IP4)
Needle Hole	φ0 .4 mm
Oscillating Speed	IPX3: 15times/min; IPX4: 5times/min
Water Flow of Each Hole	0.07 L/min +5%
Spray Pressure	80-150Kpa
