IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Electronics Testing

Name

IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Electronics Testing

Brand Name:	Sinuo
Model Number:	SN446B
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Outer Diameter:

Ф102mm

Spherical Diameter:

SФ75.5mm

Required Water Flow:

10L/min±5%

Moving Shield:

Made Of Aluminum, Can Be Detachable

Flowmeter:

8L/min ~120L/min, Digital Display

Pressure:

50～150Kpa

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

IPX3 IPX4 spray nozzle

,

digital flowmeter spray nozzle

,

electronics testing water ingress equipment

Product Description

IPX3 IPX4 Spray Nozzle with Digital Flowmeter IP Testing Equipment for Electronics

Complied Standards & Clauses

It meets the requirements of IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX3 and IPX4, Figure 5.

Equipment Overview

The spray nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4.

Technical Parameters

Parameters of Spray Nozzle	Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch, total 121 holes of Ф0.5mm, made of brass.
Required Water Flow	10L/min±5%
Pressure	50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa
Moving Shield	Made of aluminum, can be detachable
Flowmeter	8L/min ~120L/min, digital display

Details

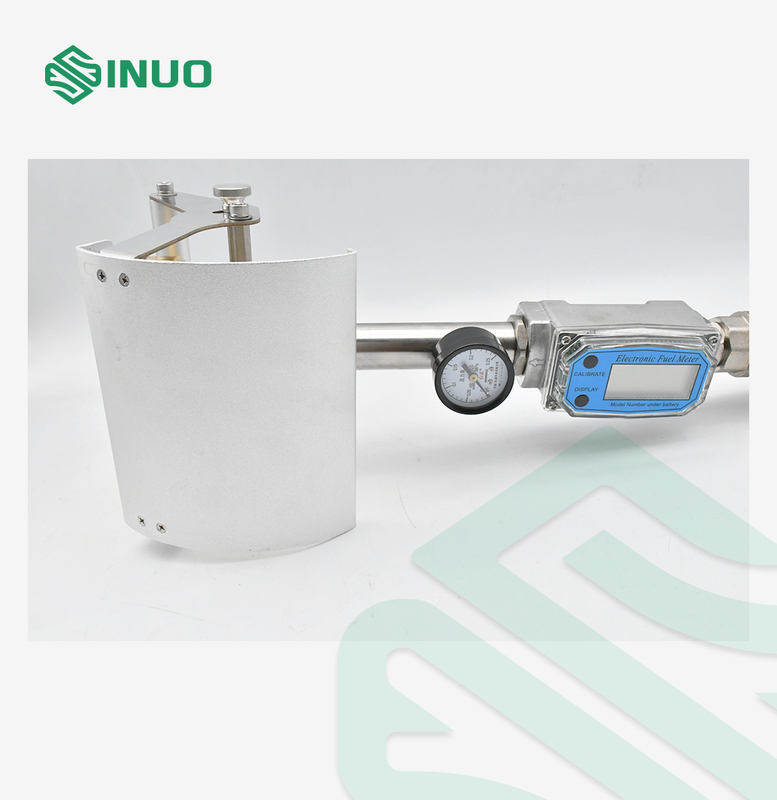

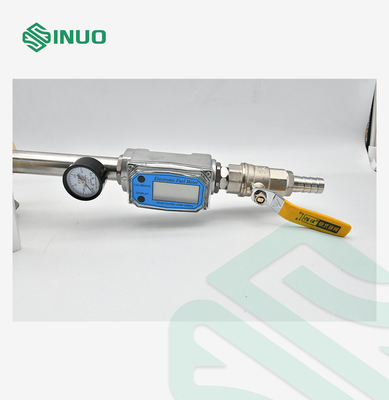

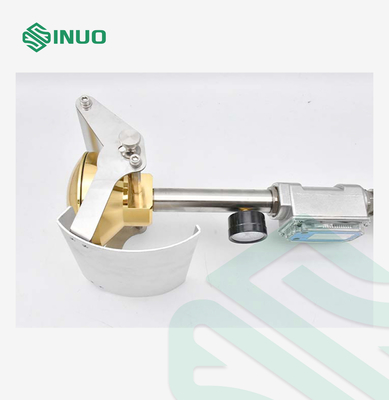

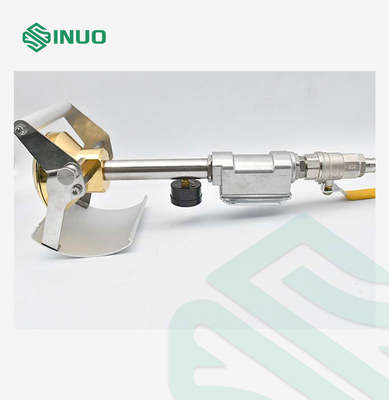

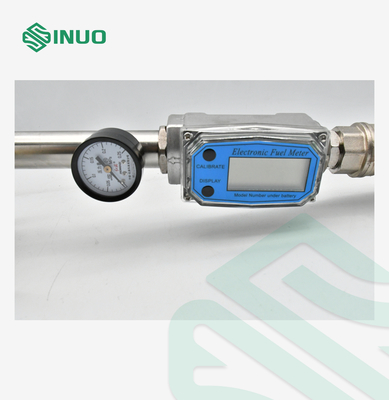

IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Electronics Testing 0

IPX3 IPX4 Spray Nozzle with Digital Flowmeter for Electronics Testing 1
