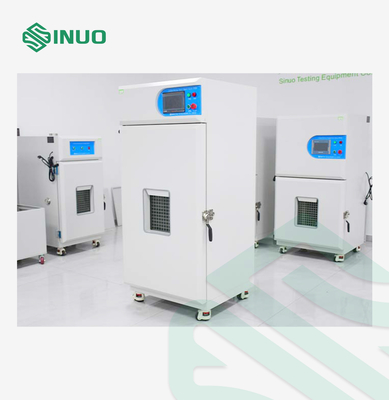

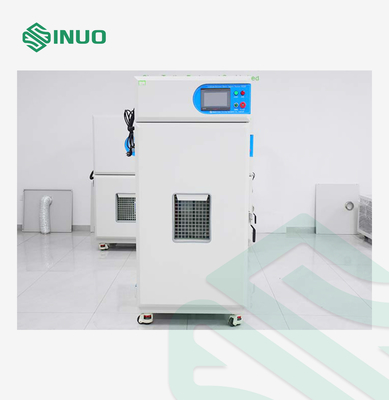

Battery Impact Test Machine UL 1642 Compliant 9.1kg Drop Weight

Brand Name:	Sinuo
Model Number:	SN555-432L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Room:

W1200 X D600 X H600mm

Air Vent:

150mm

Viewing Window Size:

390 X 360mm

Drop Ball Weight:

9.1kg

Dropping Height:

0~880mm

Control Method:

PLC Control

Crossing Bar Diameter:

15.8 Mm

Chamber Size:

W1840 X D1080 X H2220mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

UL 1642 compliant battery impact tester

9.1kg drop weight battery tester

EV battery impact test machine

Product Description

Battery Heavy Impact Test Machine Battery Impact Resistance Testing UL 1642

Complied Standards & Clauses

The product must meet below test standards and referred tests;

-UN 38.3 “Impact Test”

-UL 1642 “Impact Test”

-IEC 62281 “Impact Test”

-UL 1973 “Impact Test”

-IEC 62619-2017 “Impact Test”

Product Overview

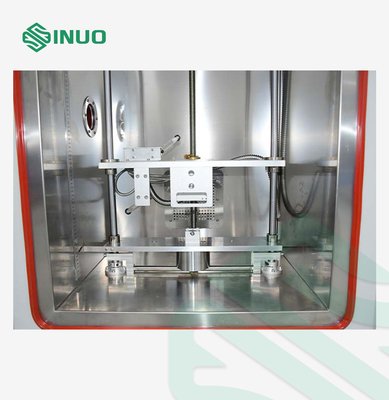

The test sample battery is placed on a flat surface, and a rod with a diameter of 15.8 ± 0.2 mm (5/8 inch) is crossed and placed in the center of the sample. A 9.1kg or 10kg weight falls from a certain height (610mm or 1000mm) onto the sample. When a cylindrical or square battery undergoes an impact test, its longitudinal axis should be parallel to the plane and perpendicular to the longitudinal axis of the steel column. The longest axis of the square battery is perpendicular to the steel column, the largest face is perpendicular to the direction of impact, and each battery is subjected to only one impact test. The battery does not catch fire and does not explode as qualified.

Technical Parameters

Drop Ball Weight

9.1kg

Dropping Height

0~880mm (The heavy can raise to a height and release to ensure the heave drop free without incline and swing)

Control Method

PLC Touch Screen Control+ Remote Control

Crossing Bar Diameter

15.8 mm (Place on central position in cross direction and the heavy bar and steel bar is parallel to battery bottom)

Test Room

W1200 X D600 X H600mm

Internal Material

SUS 304# Stainless steel(thickness 1.0mm compensation and external chamber thickness 80mm)

External Material

Cool-Rolled Plate (thickness 1.0mm)

Air Vent

150mm, on the top of back of chamber

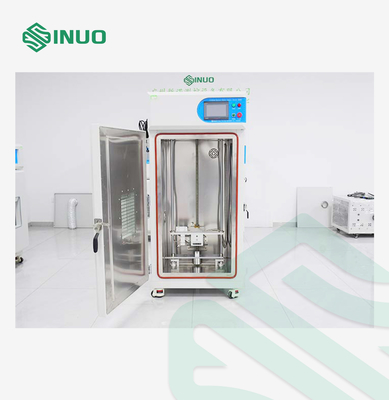

Chamber Gate

Single Door, Viewing Window, cold-rolled door lock

Viewing Window Size

390 X 360mm (20mm Dual layer glass explosion proof film)

Elevating Method

Motorized

Top/bottom impact surface

Steel Plate

Chamber Size

W1840 X D1080 X H2220mm

Power Source

AC 220V, 60Hz

Power

2.0KW

Gross Weight

About 350KG

Touch Screen Monitoring

Video Monitor

Brand	MI
Model	MJSXJ09CM
Size	1157878mm
Resolution	1296P(3 megapixel)
Viewing angle	Horizontal 360° Vertical 108°
PTZ control	APP control (Horizontal + Vertical)
Full color night market	Low light full color
Infrared night vision	Support
Two-way voice	Support
Tracking function	Support
Install method	lay flat /upside down /side mounted
Wifi channel	2.4GHz
Storage	Come with 32G microSD card

Details

Battery Impact Test Machine UL 1642 Compliant 9.1kg Drop Weight 1
