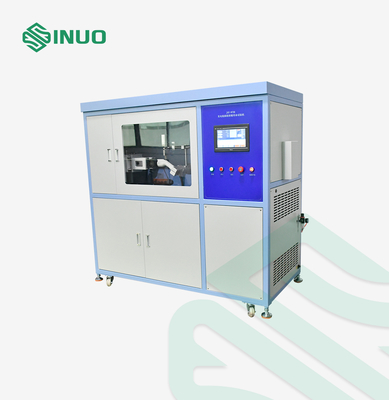

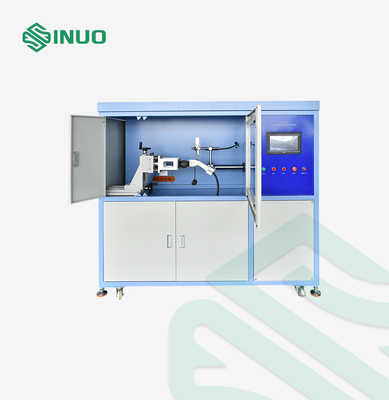

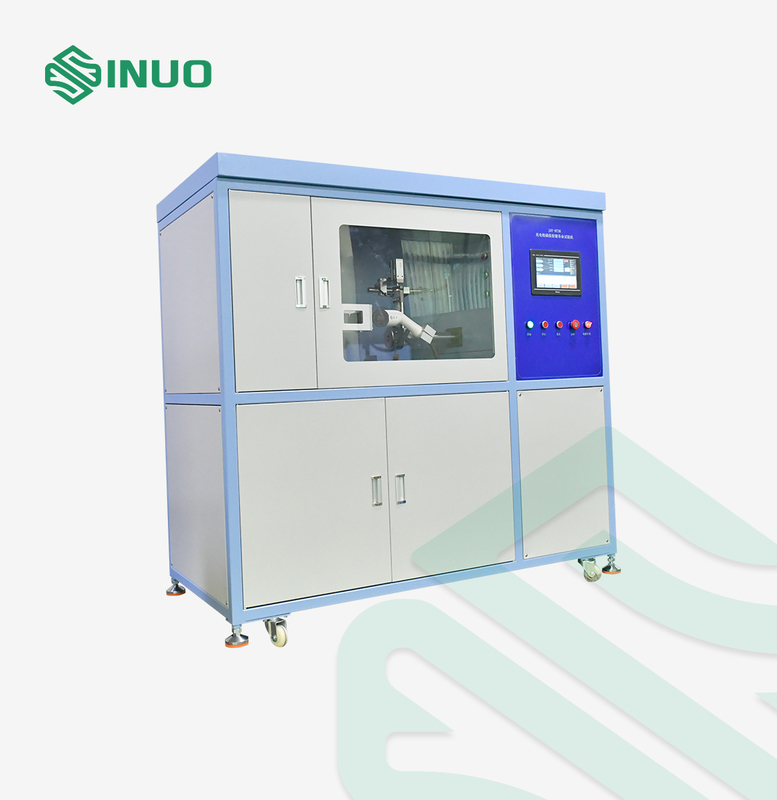

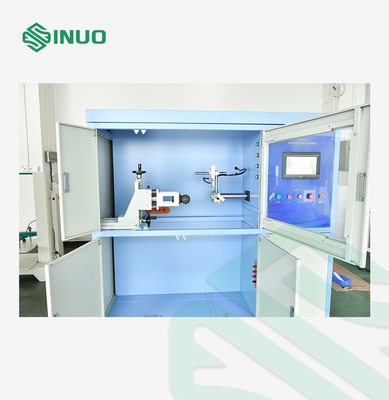

EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester

EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester

Brand Name:	Sinuo
Model Number:	SNQC1018
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Output Adjustable Test Current:

DC10 ~ 2000.0A Continuously Adjustable

Applied Standard:

IEC 62196-1Ed.4CDV 2020

Current Accuracy:

± (1% Reading + 5 Digits)

Current Stability:

± (2% Set Value + 5 Words)

Equipment Weight:

About 450Kg

Working Power:

AC220V±10%,50Hz,20A

Insertion Time:

1~999.9s Can Be Set

Voltage Stability:

(2% Set Value + 5 Words)

Packaging Details:

Plywood box

Supply Ability:

20 sets/month

Product Description

EV Charging Gun Temperature Rise Test Machine Mechanical Endurance Tester

Complied Standards & Clauses

Conforms to IEC 62196-1:2020 clause 22,23,24, IEC60309-1: 2012 clause 20,21,22, IEC60998, IEC60669. IEC61058, IEC60439, EIA-3 ,64-70 and other standards.

Technical Parameter

Mechanical & Electrical Life Test

Parameter	Specification
Drive Device	Servo motor + ball screw + linear guide rail
Insertion Speed	0.1 – 0.80 m/s (adjustable)
Test Rate	7.5 strokes/min
Insertion Stroke	0 – 200 mm (resolution 0.1 mm)
Max Insertion Force	900N
Fixture	Adjustable for square/round plugs, φ ≥ 60mm
Number of Cycles	1 – 999,999 (presettable)
Control System	15” industrial PC + Japanese PLC
Safety Functions	Leakage, overcurrent, overload, threshold protection, emergency stop
Dimensions	2000 × 1200 × 1800 mm (W×D×H)
Weight	Approx. 450 kg
Power Supply	AC220V ±10%, 50Hz, 20A

Temperature Rise Test

Parameter	Specification
Output Voltage	DC 6V
Current Range	10 – 2000 A (continuously adjustable)
Current Stability	±(2% set value + 5 digits)
Voltage Display Accuracy	±(1% reading + 5 digits)
Temperature Measurement	16 channels, 0–200℃, ±0.3% reading +1℃
Thermocouples	T-type, 30AWG, 2 meters, 16 pcs
Acquisition Speed	1s/time
Power-on Time	1–999.9 s (adjustable)
Power-off Time	1–999.9 s (adjustable)

Contact Resistance Test

Parameter	Specification
Measurement Range	0–200 mΩ
Resolution	0.01 mΩ
Accuracy	±1% + 3 digits
Test Method	4-channel simultaneous resistance test
Frequency	Once every plug-in or every N plug-ins
