Cable Anchorage Pull Force and Torque Test Apparatus for Charging Station

Cable Anchorage Pull Force and Torque Test Apparatus for Charging Station

Brand Name:	Sinuo
Model Number:	SNQC1007B
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Pull Apply:

Meet 160N, 200N, 240N, 250N, 500N Specifications, Realized By Superposition Of Weights

Torque Apply:

Meet 0.6N•m, 0.7N•m, 1.4N•m, 2.7N•m, 5.4N•m, 11.0N•m, 16.3N•m Specifications，realized By Superposition Of Weights

Torque Wheel:

R100mm(Ф200mm) ±0.5mm

Tensile Frequency:

1 Time/s

Pull Cycles:

1-999999 Cycles

Torque Application Time:

0-99H59M59S

Control Operation Mode:

PLC Automatic Control, Touch Screen Operation

Power Failure Protection:

With Power-off Data Storage Memory Function

Packaging Details:

Plywood box

Supply Ability:

20 sets/month

Highlight:

EVSE cable anchorage test apparatus

charging station torque tester

pull force test equipment for EVSE

Product Description

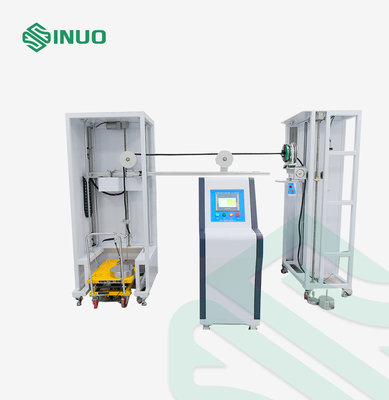

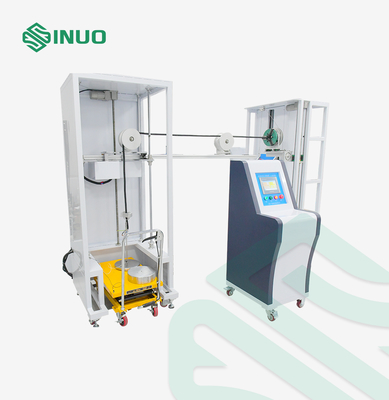

Cable Anchorage Pull Force and Torque Test Apparatus for Charging Station

Complied Standards & Clauses

It is designed and manufactured according to IEC 61851-23:2023 clause 11.6.102 and Figure 110, Figure 111 and Table 114.

Product overview

Samples and restrictions: Electric vehicle AC and DC charging station

Test purpose: The flexible cord anchorage of the appliance shall relieve conductors at the terminals from pulling force and torque. This device is used to test the ability of the cord anchorage or cable fixing device of EV AC/DC charging stations to withstand specified tensile force and torque.

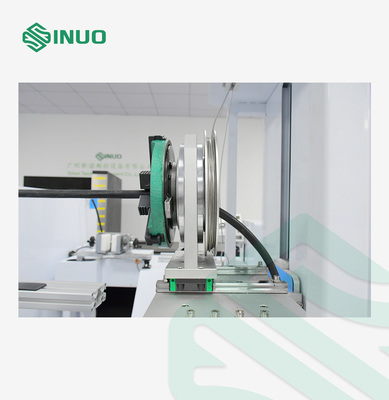

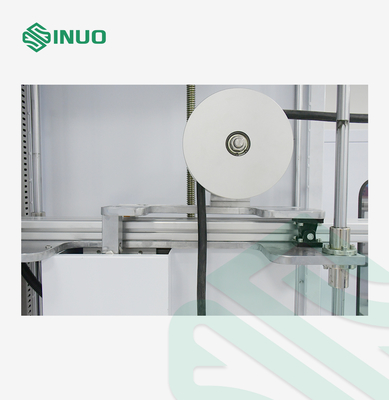

Test Principle:The pulling force is realized by using a motor to drive an eccentric wheel mechanism. The motor speed is adjustable to ensure that the pulling force is applied accurately each time. It is equipped with a monitoring function for the pulling force duration. Torque is applied by a motor-driven tray that lifts a weight; When the time is reached, the tray automatically resets the lifting weight and ends the application of torque.

Technical Parameter

Test content	EV Charging Station Cable Pull and Torque Tests
Equipment structure schematic diagram
Control operation mode	PLC automatic control, touch screen operation
Drive mode	Electric
Pull apply	Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights
Torque apply	Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications,realized by superposition of weights
Torque wheel	R100mm(Ф200mm) ±0.5mm
Tensile frequency	1 time/s, the actual pull time is detected by electrical signal
Pull cycles	1-999999 cycles, can be preset, default is 100±1 cycles
Torque application time	0-99H59M59S,can be preset
Power failure protection	With power-off data storage memory function
Fixture	Universal clamp, one set
