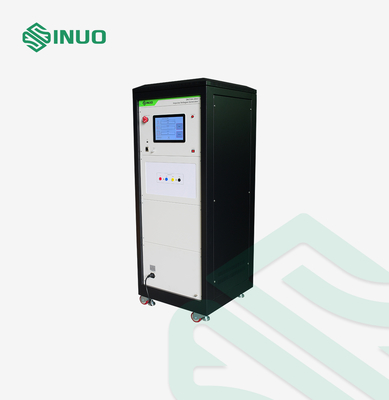

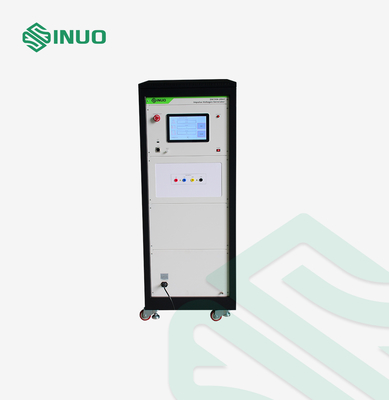

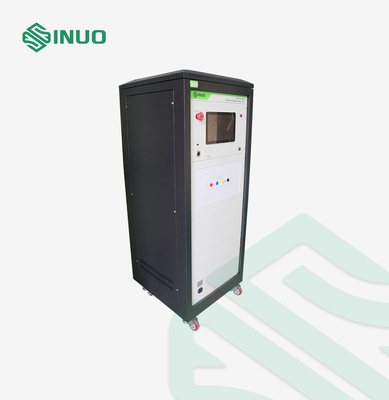

IEC 61851 High Voltage Impulse Test Generator for EV Charging Equipment

IEC 61851 High Voltage Impulse Test Generator for EV Charging Equipment

Brand Name:	Sinuo
Model Number:	SN1104-20KV
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	10 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Complied Clause:

Clause 12.7

Complied Standard:

IEC 61851

Internal Resistance:

2Ω ± 10%, 500Ω± 10%

DC High Voltage:

20kV (Max) ±5％

Interval Time:

1 ~ 99s

Impact Cycles:

1 ~ 9999

Wavefront Time:

1.2 µs ± 30 %

Peak Voltage:

300V-20kV

Packaging Details:

Plywood box

Supply Ability:

10 sets/month

Product Description

IEC 61851 High Voltage Impulse Test Generator for EV Charging Equipment

Complied Standards & Clauses

The Impulse Test Generator conforms to the standard requirements of IEC 61851-1 clause 12.7, IEC 61851-23 clause 11.4, etc.

Equipments Overview

It is used to verify that the appliances shall withstand the transient over-voltages to which they may be subjected. The impulse voltage test is a destructive test in which a breakdown occurs if the test specimen cannot withstand the applied voltage. When the sample breaks down, sparks and discharge sounds will be generated. The peak voltage of the instrument will drop significantly (close to zero) when it is no-load. When the same voltage is applied again, the above phenomenon will occur.

Technical Parameters

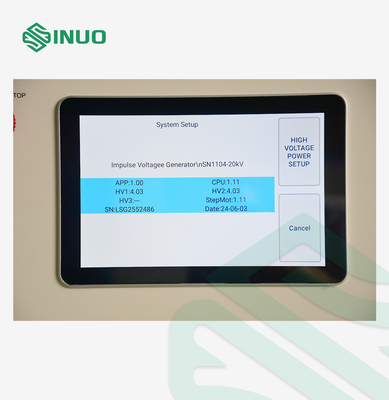

Model	SN1104-20kV (Optional)
DC high voltage	Max. 20kV
Impulse voltage wave	Impulse wavefront time: 1.2 µs ± 30 %; Half value of after wave time: 50 µs ± 20 % Please note that the waveform should be checked on an external oscilloscope
Instrument internal resistance	Resistance matches ITU-T K.44
Peak voltage: 300 V~ 12,500V	Low: 300 V~ 2,500V; High: 2,500 V~ 20,000V

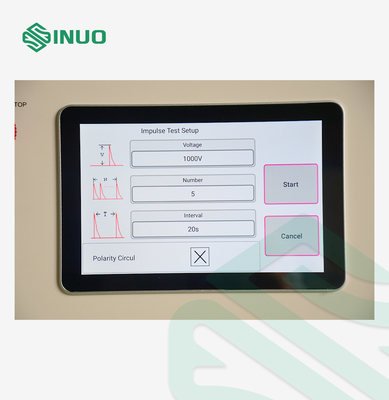

Impact interval time	10 ~ 99s
Impact cycles	1 ~ 9999
Polarity	positive and negative
Working power source	Rated voltage: ~ 220V±10%, 50Hz/60Hz
Dimension	650mm×550mm×1650mm
Weight	100 KG

Detail

IEC 61851 High Voltage Impulse Test Generator for EV Charging Equipment 0
