Electric Vehicle Charging Connector Withdrawal Test Equipment IEC 62196-1

Electric Vehicle Charging Connector Withdrawal Test Equipment IEC 62196-1

Brand Name:	Sinuo
Model Number:	SNQC1013
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Figures:

Fig13, Fig14

Applied Table:

Table 5

Applied Clauses:

Clause 14.1.5, 14.1.6

Applied Standard:

IEC 62196-1

Operation Method:

Manual Operation

Weight Configuration:

165-750N

Test Plugs:

Customized

Test Station:

Single Station

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Product Description

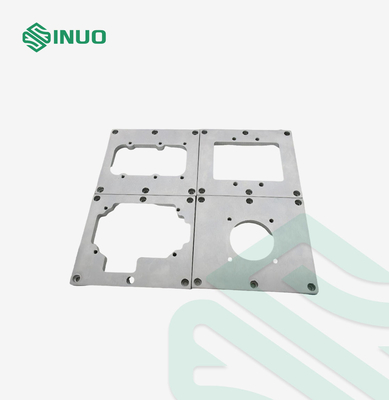

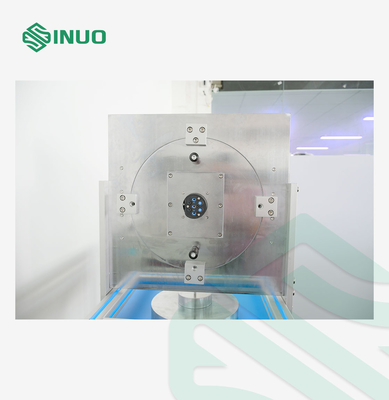

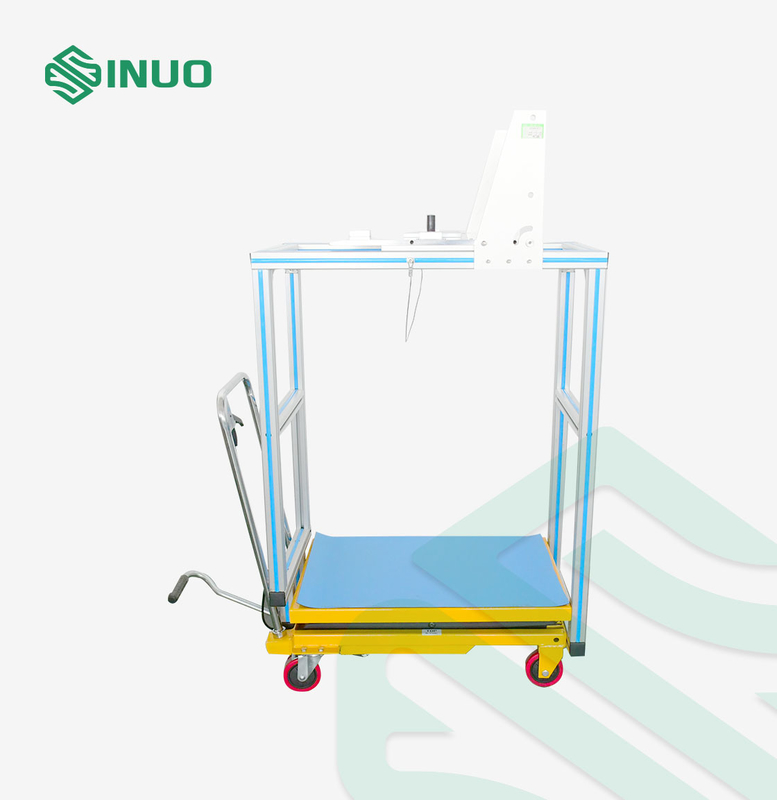

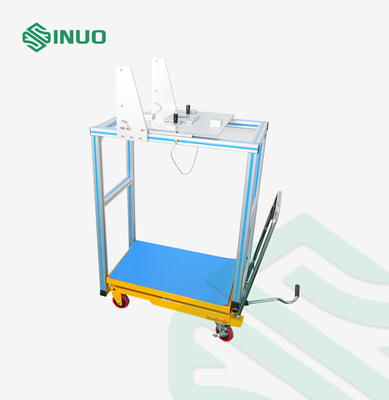

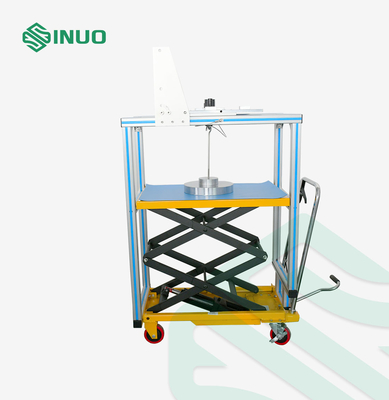

Electric Vehicle Charging Connector Withdrawal Test Equipment IEC 62196-1

Complied Standards & Clauses

This test equipment conforms to IEC 62196-1:2022 clause 14.1.5, 14.1.6, fig13, fig14.

Equipment Overview

It is used to check the withdrawal force required when the test plug is withdrawn from the socket-outlet and latching device.

Technical Parameters

The test plug, according to the relevant standard sheets, shall have finely ground contacts of hardened steel, having a surface roughness not exceeding 0,8 µm over their active length and spaced at the nominal distances, with a tolerance of ±0,05 mm.

The dimension of the plug contacts or the distance between contact surfaces for other types of plug contacts shall be in accordance with the minimum dimension(s) given in the relevant standard sheets, with a tolerance of ^+0,01₀mm

The test plugs are not included in this test apparatus, please use those test plugs that client already ordered separately as following:

No	Standard	Figure No.:	Name	QTY
1	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-I sheet 1	Test-plug:32A,250 V AC VEHICLE INLET	1
2	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ilb sheet 1	Test-plug:63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE	1
3	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ild sheet 1	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE	1
4	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ilf sheet 1	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE	1
5	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illa sheet 1	Test-Plug: 16 A, 250 V SINGLE-PHASE PLUG WITH 1 PILOT CONTACT	1
6	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illa sheet 3	Test-VEHICLE INLET : 16A, 250V SINGLE-PHASE VEHICLE INLET WITH 1 PILOT CONTACT
7	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illb sheet 1	Test-Plug : 32 A, 250 V SINGLE-PHASE PLUG WITH 2 PILOT CONTACTS	1
8	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illb sheet 3	Test-VEHICLE INLET : 32A, 250V SINGLE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
9	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illc sheet 1	Test-Plug : 63 A, 480 V THREE-PHASE PLUG WITH 2 PILOT CONTACTS	1
10	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illc sheet 3	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
11	IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Ib Sheet 1	Test VEHICLE CONNECTOR	1
12	IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEETS CONFIGURATION BB VEHICLE COUPLER 250 A 900 V DC STANDARD SHEET 3-Iia Sheet 1	Test VEHICLE CONNECTOR	1
13	IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-IIIa Sheet 2	Test VEHICLE INLET	1
14	IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Iva VEHICLE INLETMODES 2, 3 AND 4 Sheet 2	Test VEHICLE INLET	1
15	IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Ivb VEHICLE INLET ALL MODES Sheet 1	Test VEHICLE INLET	1

Details:

Electric Vehicle Charging Connector Withdrawal Test Equipment IEC 62196-1 0
