IEC 62196 Electric Vehicle Connector Couplers Over-pressure Test System

IEC 62196 Electric Vehicle Connector Couplers Over-pressure Test System

Brand Name:	Sinuo
Model Number:	SNQC1016
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 Sets / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Station:

Single Station

Applied Standard:

IEC 62196-3

Test Pressure:

1.0-10.0Bar, Booster Pump Drive

Control Method:

Computer Intelligent Control And Operation

Display Accuracy:

0.1 Bar

Pressure Accuracy:

+1% Of The Upper Limit

Air Pressure:

0.2-0.8MPa

Test Medium:

Dry Air

Packaging Details:

Plywood box

Supply Ability:

30 Sets / Month

Product Description

IEC 62196 Electric Vehicle Connector Couplers Over-pressure Test System

Complied Standards & Clauses

Conforms to IEC62196-3 clause 101.6.

Equipment Overview

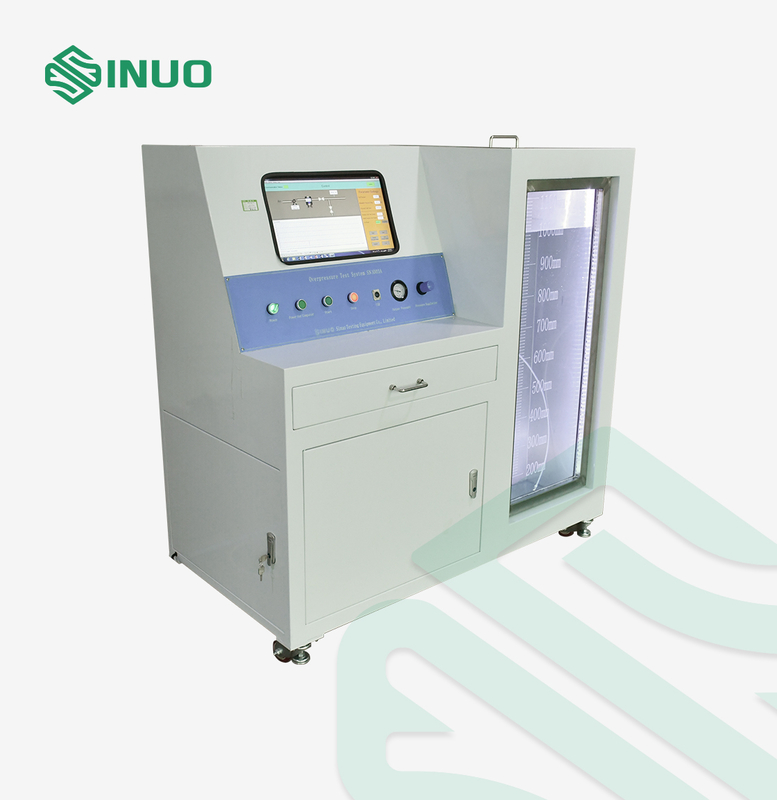

This overpressure test system is designed to meet IEC 62196-3-1 Clause 101.6 requirements. It conducts pressure leakage testing for liquid coolant systems up to 10 L, ensuring reliable sealing performance.

Equipped with a high-pressure booster pump, the system verifies the pressure resistance of each sample according to its rated specifications. The setup includes an electrical control unit, precision pressure regulation system, and water tank, with test samples manually installed and connected for accurate and repeatable testing.

Technical Parameters

Volume size	Less than 10L
Electrical control method	Computer intelligent control and operation

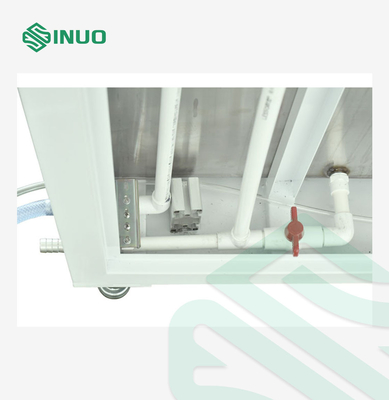

Water tank dimensions	WDH=500×500×1000mm With transparent viewing window for observe bubbles
Pressure control accuracy	+1% of the upper limit of the test pressure value, -1% of the lower limit
Display accuracy	0.1 Bar
Test medium	Dry air
Power supply	AC 220V, 60Hz, 0.3KW
Pressure control method	Computer control
Boost rate	Adjustable, non-uniform linear
Pressure hold time	0-9999s arbitrarily set, with seconds as the time unit, computer display
Test process	Boost-hold-relief
Drive air pressure	0.2-0.8MPa
Test pressure	1.0-10.0Bar, booster pump drive
Computer	Intel i5 4 G memory (or above) 512G SSD,Windows7 operating system and OFFICE processing software, with RS232 communication interface
Standard output Interface	ZG1/4 internal thread User should consider the connection between our ZG1/4 internal thread to tests samples

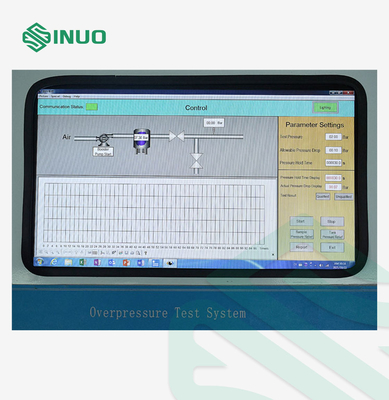

Pressure curve display	Real-time display, data collected by software
Test data storage	Can save reports in excel form
Test station	Single station
Safety protection
Power	Leakage protection, overload and short circuit protection
Motor	Overload, short circuit protection
