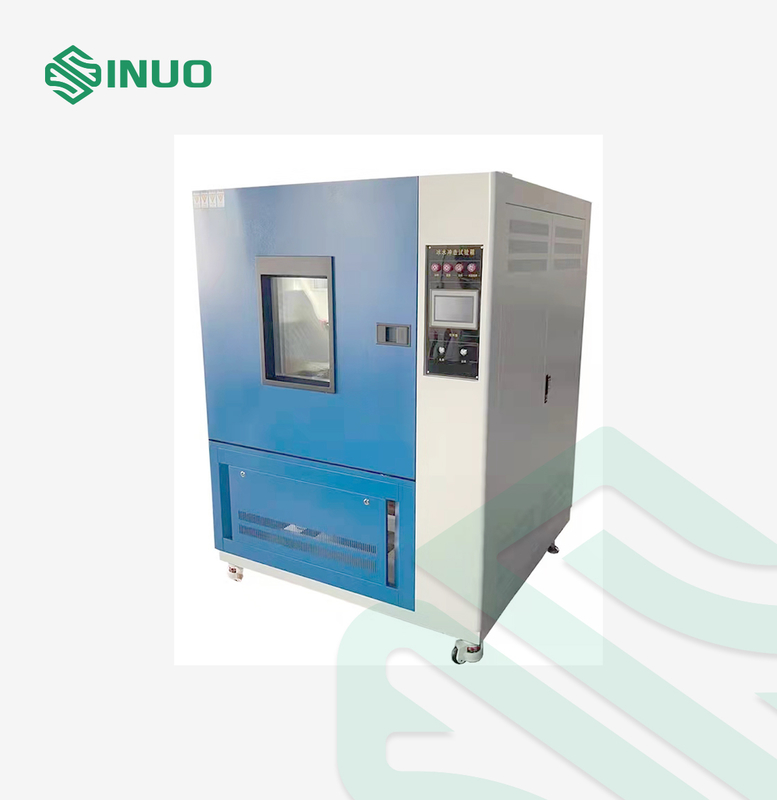

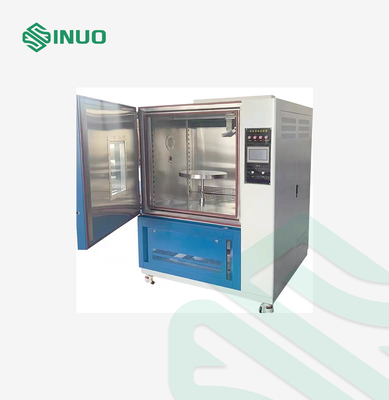

ISO 16750-4 Thermal Shock with Splash Water and Submersion Test Equipment

ISO 16750-4 Thermal Shock with Splash Water and Submersion Test Equipment

Brand Name:	Sinuo
Model Number:	SN4421
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 Sets / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Maximum Size Of The Buyer's Sample:

450×450×500 (W*D*H)

High Temperature Box Inner Box Size:

1000×1000×1000mm (W*D*H)

Immersion Water Tank Size:

600×600×700 (W*D*H)

Equipment Outer Box Size:

1650×1800×2580mm（W*D*H）

Temperature Range:

RT+10～150℃

Temperature Resolution:

0.1℃

Water Temperature:

0℃～+4℃

Spraying Volume:

(3L～4L)/3S Spraying

Packaging Details:

Plywood box

Supply Ability:

30 Sets / Month

Product Description

ISO 16750-4 Thermal Shock with Splash Water and Submersion Test Equipment

Complied Standards & Clauses

It can meet the national standard ISO 16750-4: 2006 Road vehicles Environmental conditions and tests for electrical and electronic equipment Part 4: Climatic loads 5.4.2 water splash test and 5.4.3 immersion test.

Equipment Overview

This product is suitable for products that may be exposed to water at different ambient temperatures during transportation, storage or use. The water comes from heavy rain, wind and rain, sprinkler system, wheel splashing, flushing or violent waves, etc. Under this condition, the product performance indicators and quality management are tested.

Technical Parameters

Maximum size of the buyer's sample	450×450×500 (WDH), weight 80kg
High temperature box inner box size	1000×1000×1000mm (WDH)
Immersion water tank size	600×600×700 (WDH)
Basket size	500×500×600 (WDH), The hanging basket can be raised and lowered electrically
Basket load bearing	80kg
Equipment outer box size	About 1650×1800×2580mm(WDH)Subject to actual size
High temperature box temperature range	RT+10～150℃
Temperature resolution	0.1℃
Temperature fluctuation	±0.5℃
Temperature uniformity	Within 2℃
Temperature deviation	±2℃
Ice water splash test medium requirements (prepared by the buyer)	Medium requirements: Deionized water;(Note: Please bring your own pure water machine)
Ice water immersion test medium requirements (prepared by the buyer)	Medium requirements: deionized water

Details:

ISO 16750-4 Thermal Shock with Splash Water and Submersion Test Equipment 0
