IEC 62196-1 Constant Temperature Water Bath for EV Connector Testing

Name

IEC 62196-1 Constant Temperature Water Bath for EV Connector Testing

Brand Name:	Sinuo
Model Number:	SNQC1015-1000L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

IEC 62196-1:2022

Applied Clause:

Clause 30

Inner Size:

1000mm*1000mm*1000mm

Input Voltage:

Three Phase380V, 50/60Hz

Max. Power:

5KW

Temperature Error:

±2°C

Heating:

Room Temperature~20°C

Cooling:

Room Temperature~20°C

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Product Description

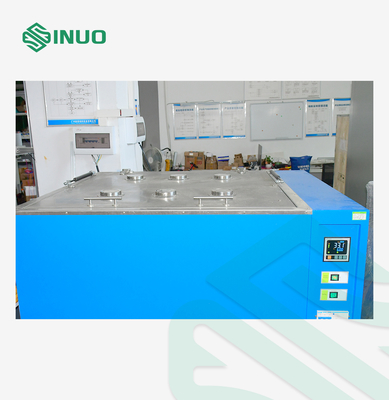

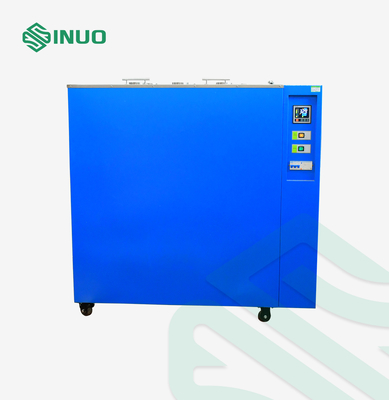

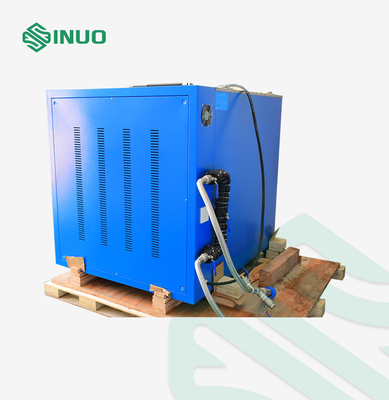

IEC 62196-1 Constant Temperature Water Bath for EV Connector Testing

Complied Standards & Clauses

This constant water bath is required by IEC 62196-1:2022 clause 30.

Equipment Overview

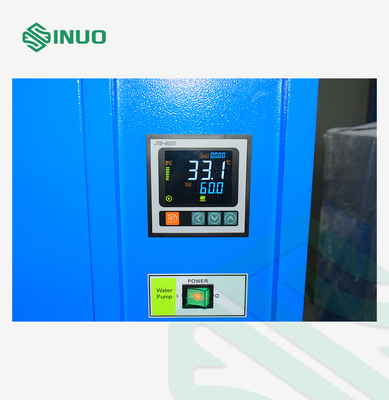

It adopts stainless steel inner liner, and advanced digital display temperature control method. The water is stirred at the bottom of the liner to ensure that the water temperature is even up and down.

Technical Parameters

Inner size	1000mm1000mm1000mm
Input voltage	Three phase380V, 50/60Hz
Max. power	5KW
Constant temperature range	Room temperatur~20°C Heating: Room temperature~20°C Cooling: Room temperature~20°C The required temperature is set, the water bath will achieve to the set value automatically.
Temperature error	±2°C
Chamber liner material	2mm 304 stainless steel

Details

IEC 62196-1 Constant Temperature Water Bath for EV Connector Testing 0
