IEC 62196-1 Screw Terminal Clamping Test Machine for EV Connector Reliability

Name

IEC 62196-1 Screw Terminal Clamping Test Machine for EV Connector Reliability

Brand Name: Sinuo
Model Number: SNQC1012
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 20 sets/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate (Cost Additional)
Applied Standard:
IEC 62196-1:2022
Applied Clause:
Clause 13.3.1 Fig12, Table 3
Rate Of Testing:
(10±2) R/min
The Rotating Diameter:
75mm
Rotating Weight:
0.4~70.3kg
Power Supply:
AC220V,50/60Hz
Height(H)(mm):
260-660mm
Size:
790mmX400mmX1500mm
Packaging Details:
Plywood case
Supply Ability:
20 sets/month
Product Description





IEC 62196-1 Screw Terminal Clamping Test Machine for EV Connector Reliability



Complied Standards & Clauses



This testing machine conforms to IEC 62196-1:2022 clause 13.3.1 fig12, table 3.



Equipment Overview



This compliance is used for judging whether the design and the structure of the clamping screw terminal is correspondent with the requirement of non over-damage to the wire. Besides, it is also used to check whether the clamping screw terminal can bear the stress during the process of normal usage.

The testing times can be preset before the test, and the compliance stops automatically with the alarm when the testing times are reached.



Technical Parameters


Power Supply AC220V,50/60Hz
The range of counting number 1~9999(150 times (15 min) is by default.
Rate of Testing (10±2) r/min
Rotating weight 0.4~70.3kg (details refer to following table 3)
The rotating diameter 75mm
The diameter of bushing hole (mm) 6.5,9.5, 13,14.5,15.9,19.1,22.2,25.4,28.6, 31.8, 38.1, 44.5mm (details refer to following table 3)
Height(H)(mm) 260-660mm
Size 790mmX400mmX1500mm


Details

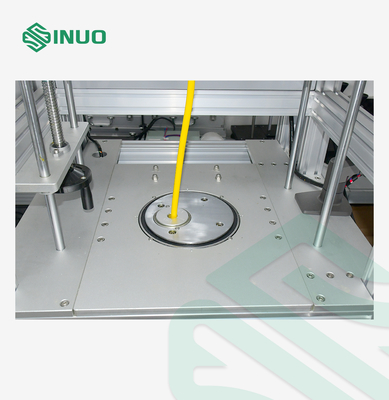

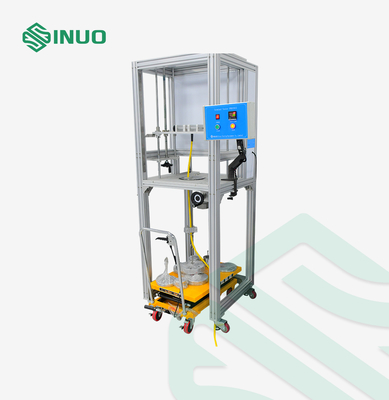

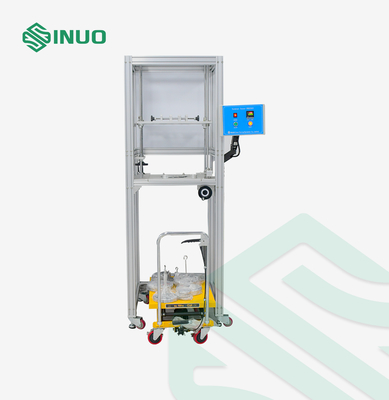

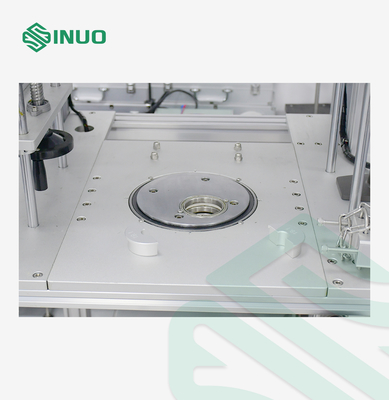

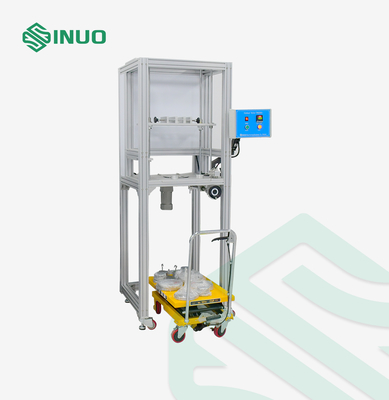

IEC 62196-1 Screw Terminal Clamping Test Machine for EV Connector Reliability 0IEC 62196-1 Screw Terminal Clamping Test Machine for EV Connector Reliability 1
