IEC 62196-1 Electric Vehicle Testing Equipment Air Saturated Test Chamber

Brand Name:	Sinuo
Model Number:	SNQC1016
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Input Power:

AC220V±10%, 50/60Hz;

Test Space:

W250mm×D200mm×H200mm;

Response Time:

Up To 99% Within ≤1min;

Box Material:

SUB304 Stainless Steel.

Timer:

0.1～999.9s/m/h

Humidity Indication:

LCD Temperature

Applied Standard:

IEC 62196-1:2022

Applied Clause:

Clause 30

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

IEC 62196-1 EV testing equipment

electric vehicle air test chamber

EV testing chamber with warranty

Product Description

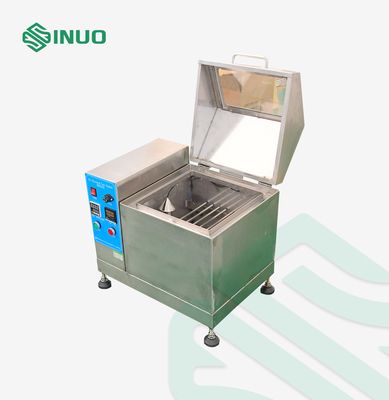

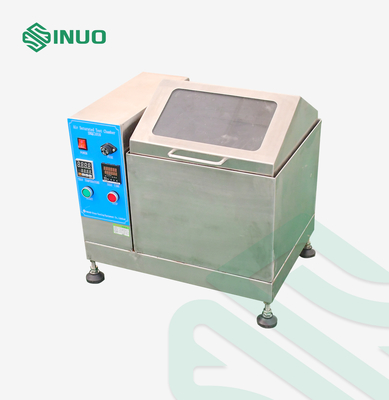

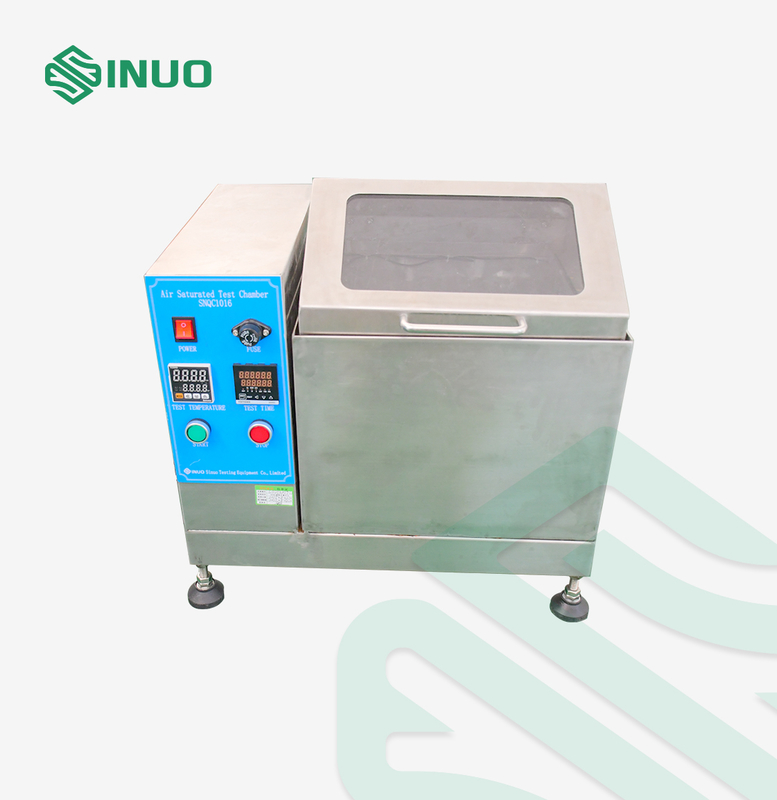

IEC 62196-1 Electric Vehicle Testing Equipment Air Saturated Test Chamber

Complied Standards & Clauses

This air-saturated test chamber is required by IEC 62196-1:2022 clause 30.

Equipment Overview

It is used to process further rusting in saturated water vapor for plugs, screws and other metal components after being soaked in ammonium chloride water.

Chamber features:
1. Adopt microcomputer temperature controller. +, M. +. Control LED digital display.
2. Adopt platinum temperature sensor (PT-100), and temperature is precisely controllable with resolution ability 0.1℃.
3. Water vapor test target can be set and controlled, steam test operation timing can be set and controlled.

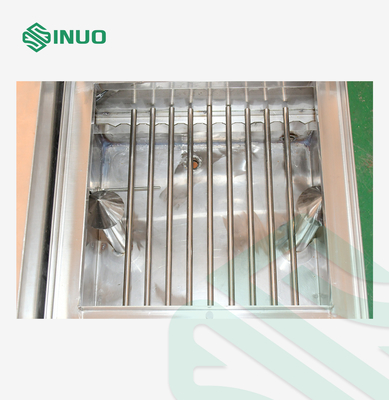

4. Inner chamber stainless steel material: SUS#316 full argon welding, and outer chamber: SUS#316 material.

5. Fully automatically control.

Technical Parameters

Input power: AC220V±10%, 50/60Hz;
Test space: W250mm×D200mm×H200mm;
Test saturated water vapor temperature: (20±5)℃;
Humidity indication: LCD temperature and humidity meter displays the current ambient temperature and humidity;
Timer: 0.1～999.9s/m/h continuous timing and setting, there will be a buzzer sound when the timer reaches the set value;
Response time: up to 99% within ≤1min;
Box material: SUB304 stainless steel.

Details

IEC 62196-1 Electric Vehicle Testing Equipment Air Saturated Test Chamber 0
