1000L Electric Vehicle Charging Test Constant Water Bath IEC 62196-1

Name

1000L Electric Vehicle Charging Test Constant Water Bath IEC 62196-1

Brand Name:	Sinuo
Model Number:	SNQC1015-1000L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Clause:

Clause 30

Applied Standard:

IEC 62196-1:2022

Input Voltage:

Three Phase380V, 50/60Hz

Inner Size:

1000mm*1000mm*1000mm

Temperature Error:

±2°C

Max. Power:

5KW

Cooling:

Room Temperature~20°C

Heating:

Room Temperature~20°C

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

1000L electric vehicle charging test bath

,

IEC 62196-1 compliant water bath

,

EV charging test equipment with warranty

Product Description

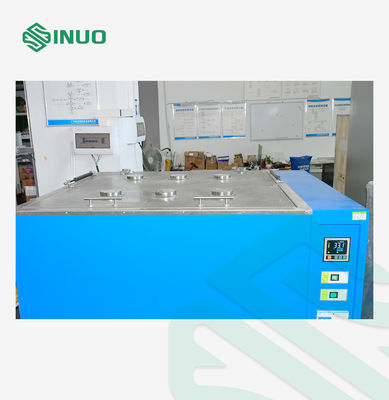

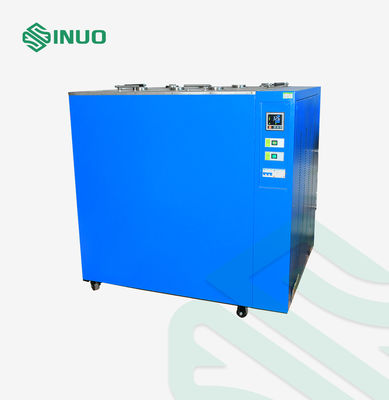

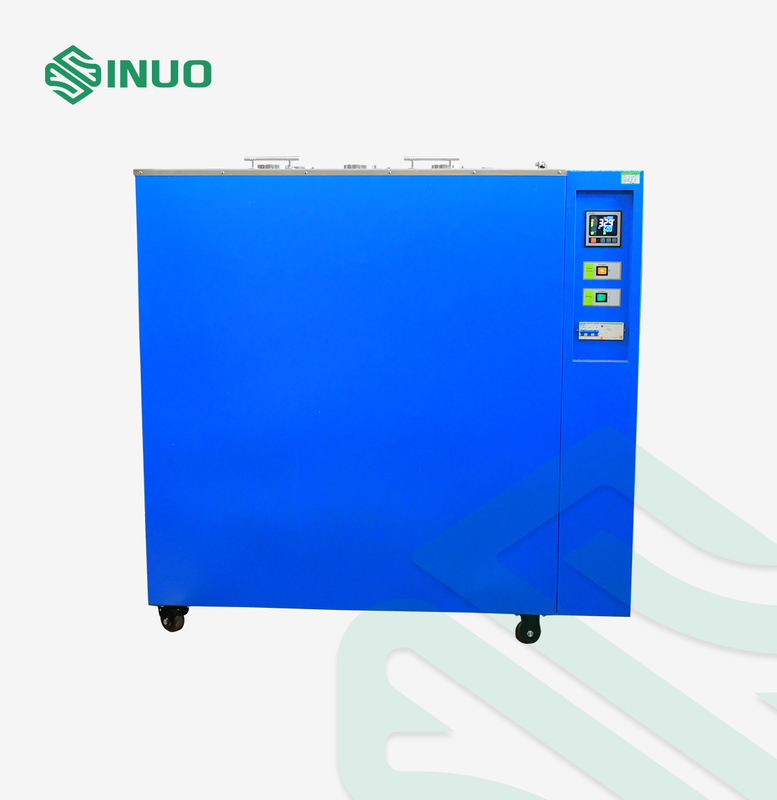

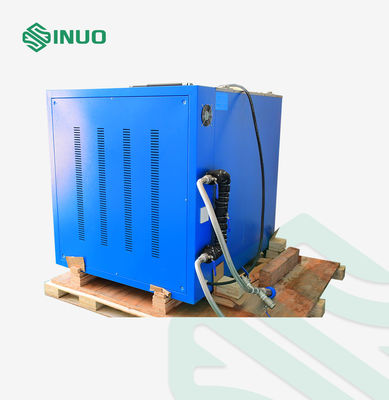

1000L Electric Vehicle Charging Test Constant Water Bath IEC 62196-1

Complied Standards & Clauses

This constant water bath is required by IEC 62196-1:2022 clause 30.

Equipment Overview

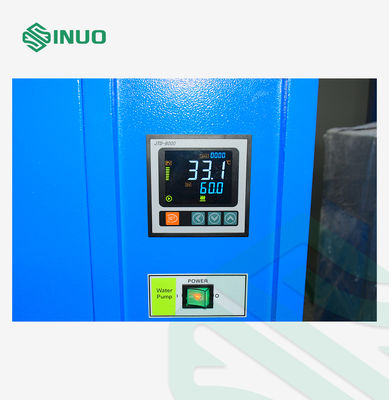

It features a stainless steel inner chamber and a modern digital temperature control system. A built-in stirring mechanism at the bottom ensures consistent water circulation, providing uniform temperature distribution throughout the tank.

Technical Parameters

Chamber liner material	2mm 304 stainless steel
Inner size	1000mm1000mm1000mm
Input voltage	Three phase380V, 50/60Hz
Temperature error	±2°C
Constant temperature range	Room temperatur~20°C Heating: Room temperature~20°C Cooling: Room temperature~20°C The required temperature is set, the water bath will achieve to the set value automatically.
Max. power	5KW

Details

1000L Electric Vehicle Charging Test Constant Water Bath IEC 62196-1 0
