EV Charging Connector Withdrawal Force Test Apparatus IEC 62196-1

EV Charging Connector Withdrawal Force Test Apparatus IEC 62196-1

Brand Name:	Sinuo
Model Number:	SNQC1013A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Main Weight Of DC Charging Gun:

13.2kg

Main Weight Of AC Charging Gun:

9.2kg

Additional Weight Drop Height:

5cm

Additional Weight:

0.8kg

Lifting Method:

Manual

Control Method:

Manual

Additional Weight Drop Method:

Manual

Test Station:

Single Station

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

EV Charging Connector Withdrawal Force Test Apparatus IEC 62196-1

Complied Standards & Clauses

This withdrawal force test apparatus is required by IEC 62196-1:2022 clause 16.16.

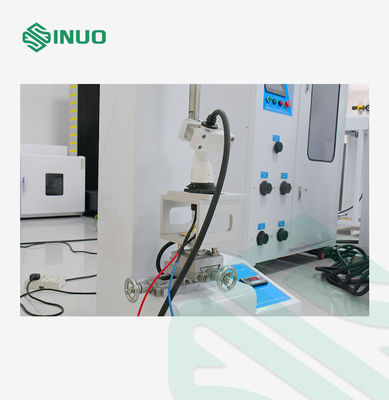

Product Overview

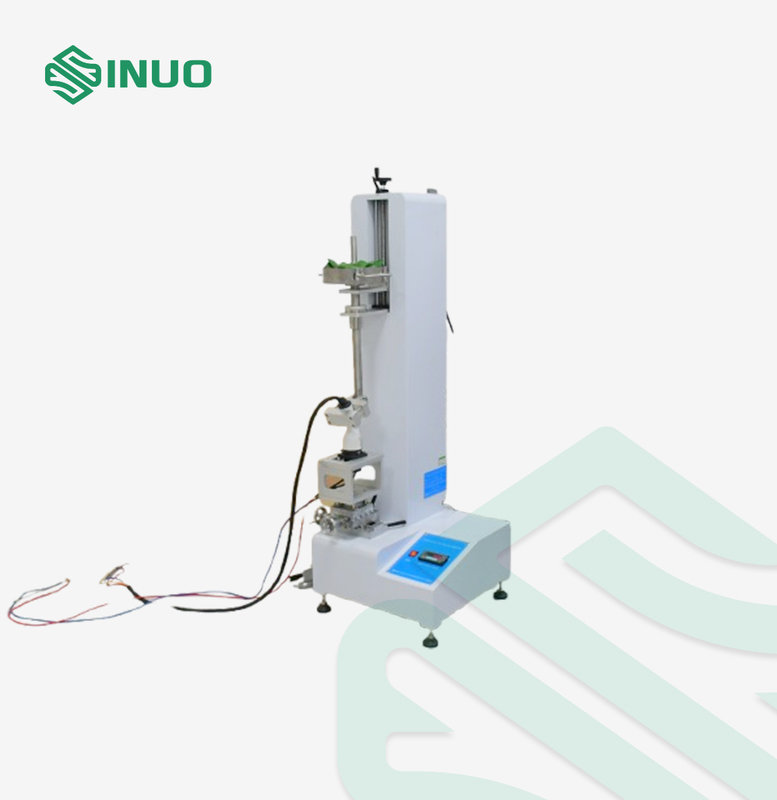

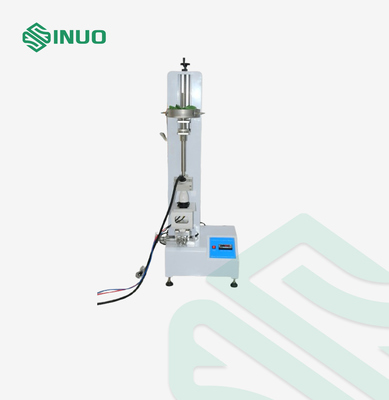

This EV Charging Gun Withdrawal Force Test Apparatus is designed in compliance with IEC 62196-1:2022 clause 16.16. It accurately measures the maximum force required to insert the charging gun into the socket, ensuring the charging interface is easy to use and meets safety standards.

With a precise impact testing mechanism, the device simulates the standard insertion process, helping manufacturers verify that every charging gun and socket combination provides a smooth and reliable connection. Ideal for EVSE manufacturers, quality control labs, and testing facilities.

Technical Parameters

Test station	Single station
Additional weight drop height	5cm
Charging gun’s clamp	Clamping handle, adjustable direction, so that the gun head is vertically downward
Weight configuration	Main weight of AC charging gun: 9.2kg Main weight of DC charging gun: 13.2kg Additional weight: 0.8kg Note: The weight of the main weight includes the weight of the clamp, guide rod, steel ball basin and charging gun sample. The weight of the main weight without the sample is about 4kg. An additional 10kg steel ball is equipped for fine-tuning the weight to make the entire main weight weight conform to AC or DC. Gun insertion force requirements.
Force monitoring	Pull pressure value sensor and instrument display
Control method	Manual, the instrument displays force value data in real time
Insert initial positioning	Precision slide table and long linear guide bearing positioning
Lifting method	Manual
Additional weight drop method	Manual

Details
