EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester

EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester

Brand Name:	Sinuo
Model Number:	SNQC1013
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Table:

Table 5

Applied Figures:

Fig13, Fig14

Applied Standard:

IEC 62196-1

Applied Clauses:

Clause 14.1.5, 14.1.6

Weight Configuration:

165-750N

Operation Method:

Manual Operation

Test Station:

Single Station

Test Plugs:

Customized

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Product Description

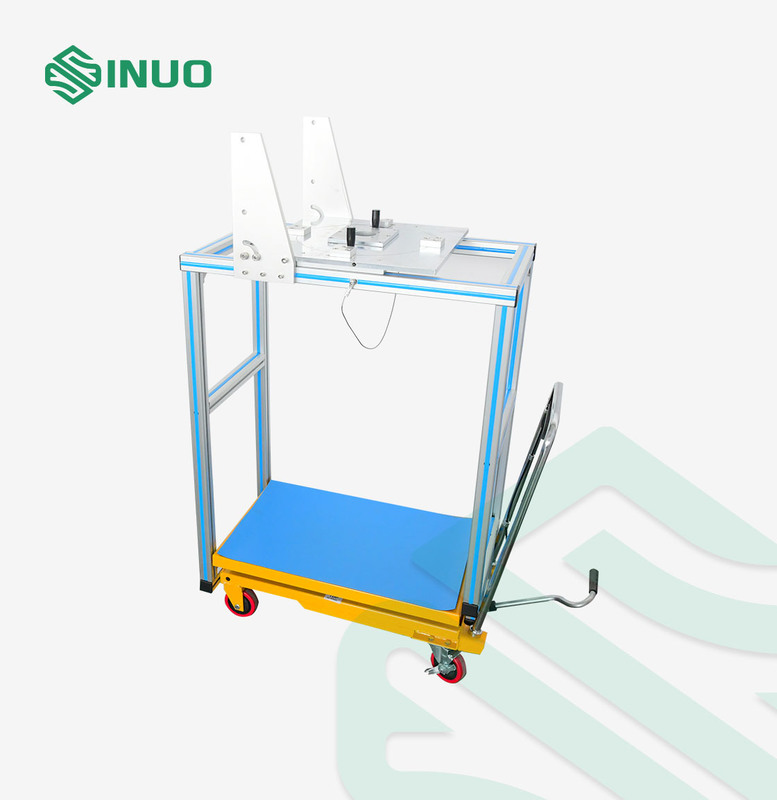

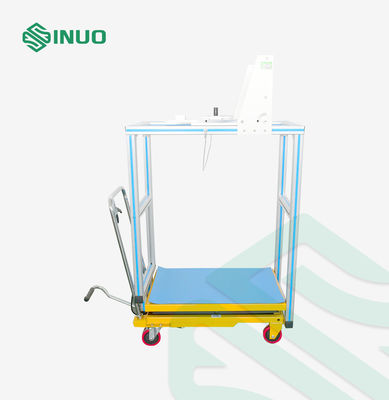

EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester

Complied Standards & Clauses

This test equipment conforms to IEC 62196-1:2022 clause 14.1.5, 14.1.6, fig13, fig14.

Equipment Overview

It is used to check the withdrawal force required when the test plug is withdrawn from the socket-outlet and latching device.

A Withdrawal force

The switched EV socket-outlet or switched vehicle connector with interlock is fixed to the support of the apparatus shown in Figure 13 of IEC62196-1:2022 that the axis of separation is vertical, and the movement of mating accessory is downwards.

The withdrawal force of the socket-outlet shall meet the requirements of following Table. The weights are included.

EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester 0

B.1 Apparatus for checking the withdrawal force:

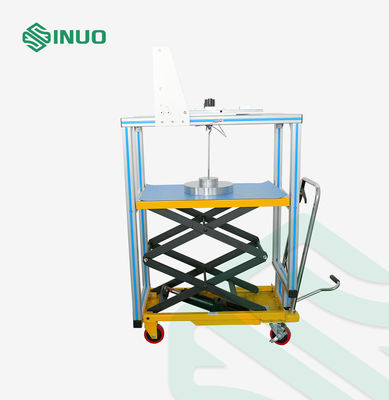

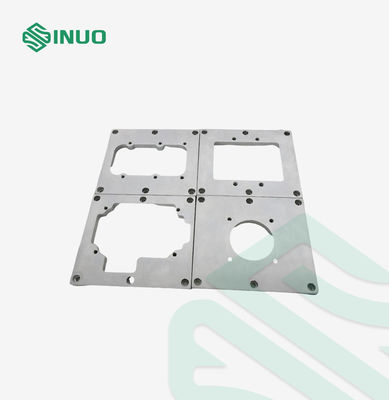

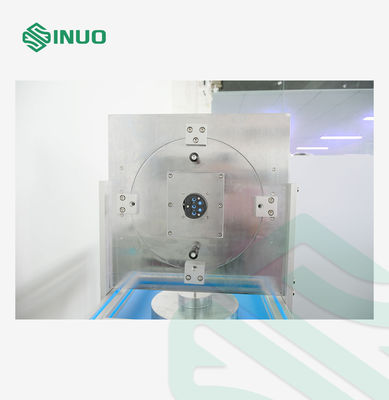

This device is mainly composed of the installation fixture, the clamping device, principal weight, supplementary weight and the test plug. Based on experience, the pull clamp is changed to a counterweight, the weight hook is directly connected to the test plug, and the fixture for holding the sample is configured. The specific shape is shown in figure 1.

EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester 1

Technical Parameters

Standard	Figure No.:	Name
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-I sheet 1	Test-plug:32A,250 V AC VEHICLE INLET
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ilb sheet 1	Test-plug:63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEETS CONFIGURATION BB VEHICLE COUPLER 250 A 900 V DC STANDARD SHEET 3-Iia Sheet 1	Test VEHICLE CONNECTOR
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ild sheet 1	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Ivb VEHICLE INLET ALL MODES Sheet 1	Test VEHICLE INLET
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illa sheet 1	Test-Plug: 16 A, 250 V SINGLE-PHASE PLUG WITH 1 PILOT CONTACT
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illa sheet 3	Test-VEHICLE INLET : 16A, 250V SINGLE-PHASE VEHICLE INLET WITH 1 PILOT CONTACT
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illb sheet 1	Test-Plug : 32 A, 250 V SINGLE-PHASE PLUG WITH 2 PILOT CONTACTS
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illb sheet 3	Test-VEHICLE INLET : 32A, 250V SINGLE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-IIIa Sheet 2	Test VEHICLE INLET
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illc sheet 3	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Ib Sheet 1	Test VEHICLE CONNECTOR
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ilf sheet 1	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Iva VEHICLE INLETMODES 2, 3 AND 4 Sheet 2	Test VEHICLE INLET
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illc sheet 1	Test-Plug : 63 A, 480 V THREE-PHASE PLUG WITH 2 PILOT CONTACTS

Details:

EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester 2
