500L IP5X and IP6X Dustproof Test Chamber for Automotive Parts IEC60529

500L IP5X and IP6X Dustproof Test Chamber for Automotive Parts IEC60529

Brand Name:	Sinuo
Model Number:	SN441-500L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Outer Chamber Size:

L1250*W1050*H2000

Inner Chamber Size:

L800*W800*H800

Coarse Dust:

150um Or Less

Fine Dust:

75um Or Less

Air Flow Meter:

1-20L/M

Air Flow Rate:

No More Than 2m/s

Dust Concentration:

2kg/m³

Load-bearing:

10kg

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

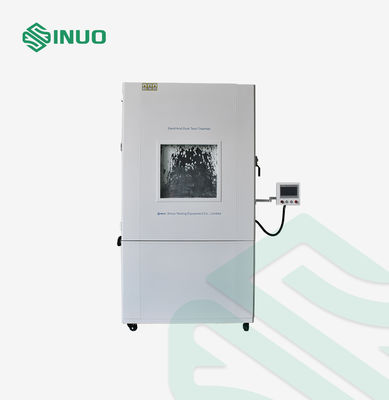

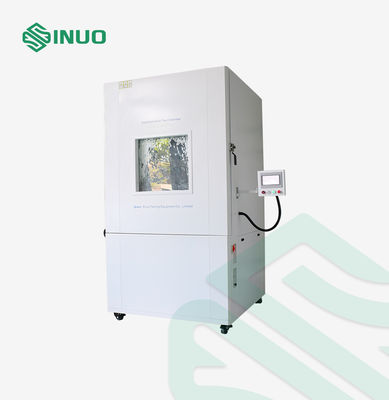

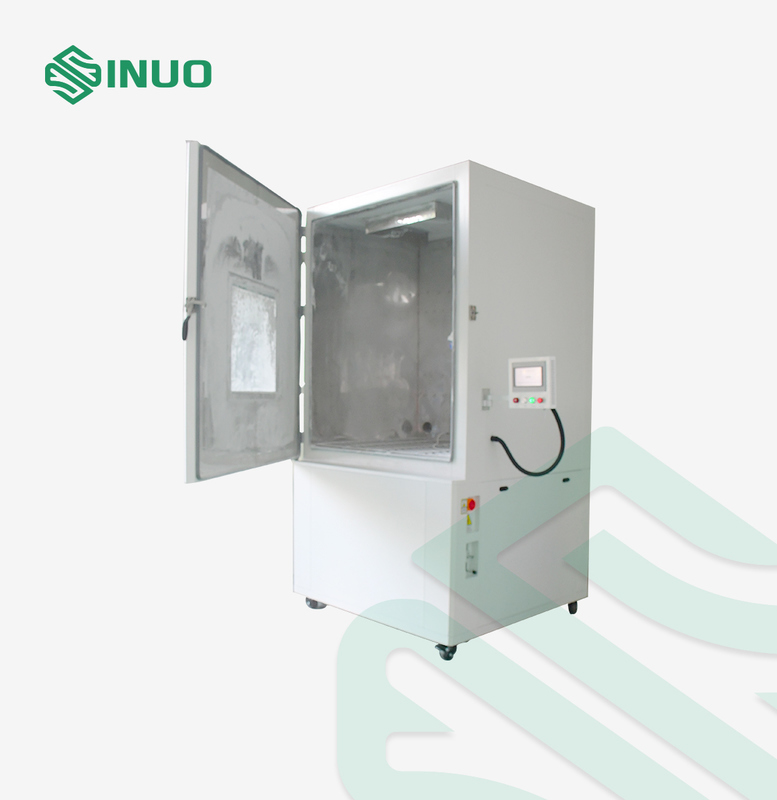

500L IP5X and IP6X Dustproof Test Chamber for Automotive Parts IEC60529

Complied Standards & Clauses

The sand and dust test chamber is designed and manufactured according to IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.

Product Overview

The Sand and Dust Test Chamber is designed to evaluate the protection performance of electrical and electronic products, automotive and motorcycle components, and sealing parts against the intrusion of sand and dust under simulated environmental conditions. It reproduces the effects of dust-laden air caused by natural weather conditions or artificial disturbances such as vehicle movement.

This chamber helps determine the potential impact of airborne particles on the functionality and durability of electrical and mechanical products during operation, storage, or transportation in dusty environments.

The equipment is precisely engineered and manufactured in compliance with IEC 60529 (Figure 2) IP5X and IP6X, IEC 60598-1:2008, IEC 60335-1 Clause 22.1, and other related international standards, ensuring accurate, reliable, and repeatable test results.

Technical Parameters

Item	Specification
Inner Chamber Size (W×D×H)	800 × 800 × 800 mm
Outer Chamber Size (W×D×H)	1250 × 1050 × 2000 mm
Dust Type	Fine dust ≤ 75 μm, Coarse dust ≤ 150 μm
Dust Concentration	2 kg/m³
Talcum Powder Dosage	2–5 kg/m³
Air Flow Velocity	≤ 2 m/s
Dust Flow Direction	Top to bottom
Power Supply	AC380V, 50Hz, 3-phase (32A air switch required)
Power Consumption	3KW (no load)

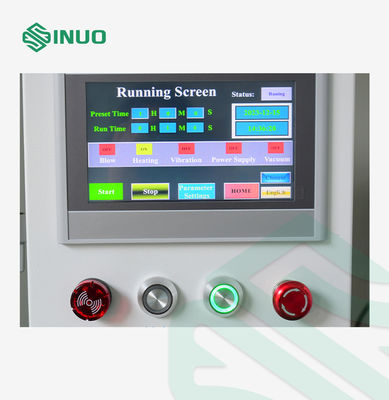

Control System	PLC + Touchscreen (Teelong)
Test Time Settings	1 s ~ 99 h (adjustable)
Cycle Time	1 s ~ 99 h (adjustable)
Vacuum Time	1 s ~ 99 h (adjustable)
Shock Time	1 s ~ 99 h (adjustable)
Air Flow Meter Range	1–20 L/min
Negative Pressure Range	Adjustable from -10 kPa to 0 kPa
Lighting	1 pc
Dustproof Socket	AC220V 16A

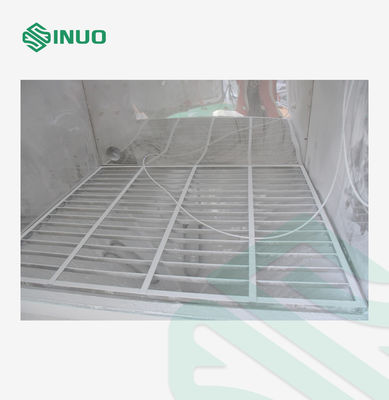

Inner Chamber Material	SUS201 Stainless Steel Mirror Panel
Outer Chamber Material	Electrostatic Sprayed A3 Steel
Vacuum System	Pressure regulator, pump, nozzle, tubes
Heating System	Stainless steel mica heating sleeve
Sample Load Capacity	10 kg
Observation Window	1 pc
Dust Baking Temperature	RT +10℃ ~ 60℃
Safety Protections	Phase protection, leakage, over-temperature

Details

500L IP5X and IP6X Dustproof Test Chamber for Automotive Parts IEC60529 0
