Tensile Elongation Compression Test Apparatus Universal Tensile Tester for IEC 62368-1

Tensile Elongation Compression Test Apparatus Universal Tensile Tester for IEC 62368-1

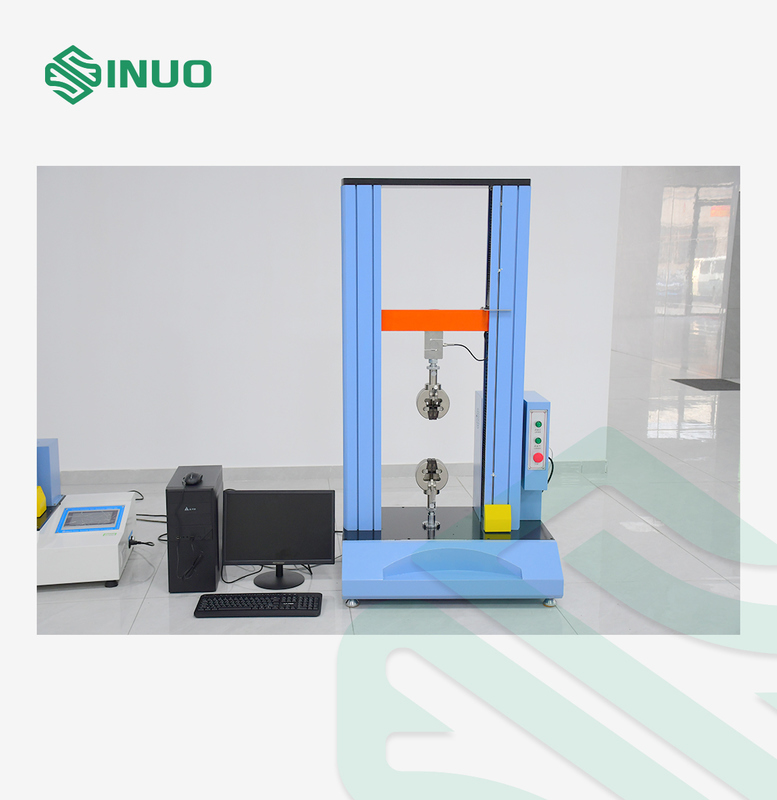

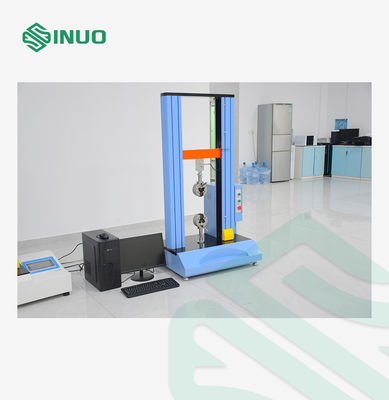

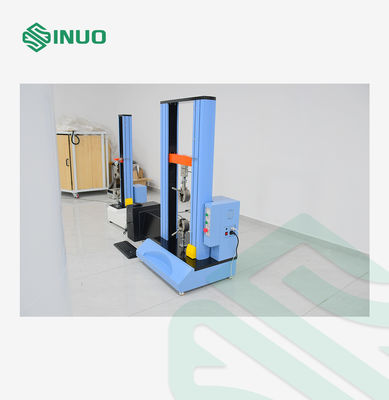

Equipment Overview

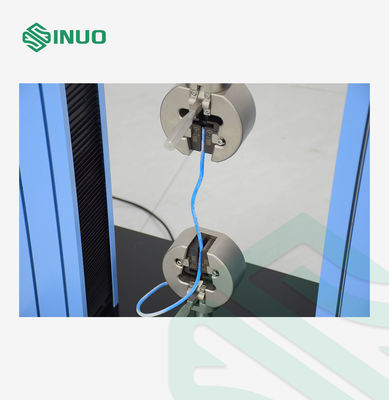

Controlled by a computer for intelligent operation, this machine is widely used to evaluate the mechanical performance of various materials such as rubber, plastic, wire and cable, textile, waterproof materials, non-woven fabrics, and even metal wires, foils, plates, and rods.

With customized fixtures, it supports a wide range of tensile, compression, peeling, shearing, tearing, and bending tests. The system provides accurate data acquisition, graphical output comparison, and easy operation, ensuring reliable and repeatable results.

Featuring a modular design with complete and flexible accessories, this tester offers high precision, strong adaptability, and user-friendly performance, making it an ideal choice for laboratories, R&D centers, and quality control departments.

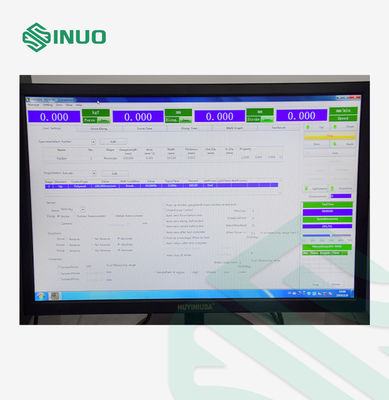

Control software introduction

Software operating system language: English.

Force unit: N, KN, Kgf, Lbf

Length unit: mm/cm/inch, freely convertible

Control method: Computer software setting speed, setting load break (rupture), running time and other control methods

Curve types: load-displacement, load-time, displacement-time. Stress-strain, strain-time, stress-time.

The vertical and horizontal coordinates of the curve can be set arbitrarily.

Working conditions of the testing machine

1. Within the range of room temperature 10℃-35℃, the relative humidity is not more than 80%;

2. Install correctly on a solid foundation or workbench;

3. In a vibration-free environment, leave a space of not less than 1m around;

4. Please note that here is no corrosive medium around;

5. The fluctuation range of the power supply voltage should not exceed 10% of the rated voltage.

Technical Parameters
