Ingress Protection Test Chamber Water Immersion Test Apparatus IPX7

Ingress Protection Test Chamber Water Immersion Test Apparatus IPX7

Brand Name:	Sinuo
Model Number:	SN4410
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Chamber Inner Size:

L 1000* W 1000* H1800mm

Chamber External Size:

W 1080* D 1080*H 2300mm

Max. Test Water Depth:

1.8m

Observation Window Width:

200mm

Inner Chamber Material:

2.0mm Thickness Stainless Steel

Test Content:

IPX7

Observation Window:

Tempered Glass (thickness: 12mm)

External Chamber Material:

Stainless Steel Plates + Aluminum Profile Frame

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Product Description

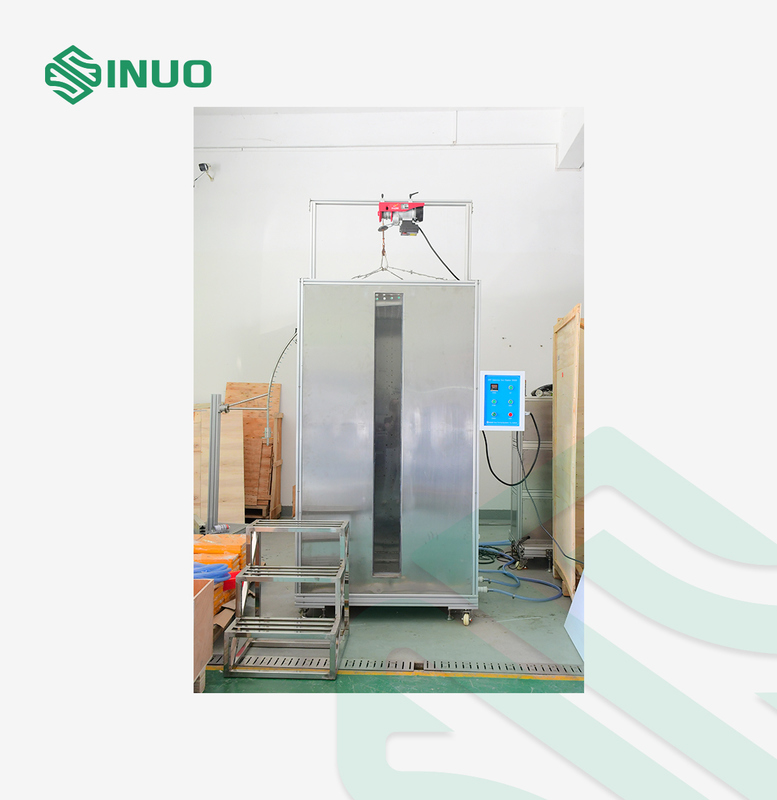

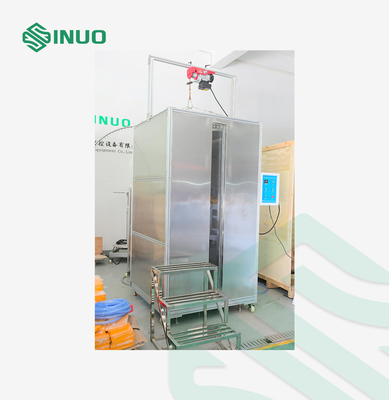

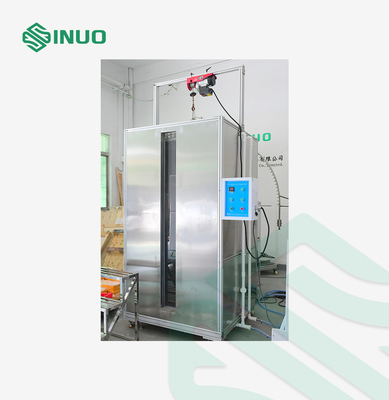

Ingress Protection Test Chamber Water Immersion Test Apparatus IPX7

Complied Standards & Clauses

IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60598-1.

Equipment Overview

The IPX7 Waterproof Test Equipment is specifically designed to evaluate the water resistance performance of various electronic and electrical products under immersion conditions. By simulating real-world submersion environments, this system accurately verifies whether the product’s waterproof protection meets the IPX7 standard requirements.

Built with a high-quality stainless-steel tank and precision control system, it ensures stable test conditions and reliable results. This equipment is widely used in R&D laboratories, quality control departments, and production lines to support product design validation, safety certification, and batch inspection.

Whether you’re testing consumer electronics, automotive components, or electrical accessories, this IPX7 waterproof tester helps ensure your products maintain consistent performance, durability, and compliance with international standards.

Technical Parameters

Chamber external size	Approximately W 1080* D 1080*H 2300mm (including casters)
Chamber inner size	Length 1000* W 1000* H1800mm
Max. test water depth	1.8m
Observation window	Tempered glass (thickness: 12mm)
Observation window width	200mm
Water level adjustment method	Water inlet / drain valve, manual adjustment
Water level display	Scale (accuracy 1mm)
External chamber material	Stainless steel plates + Aluminum profile frame
Inner chamber material	2.0mm thickness stainless steel

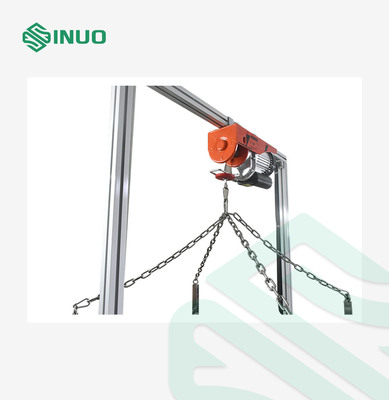

Electric lifting basket	Made of stainless steel, controlled by electric hoist

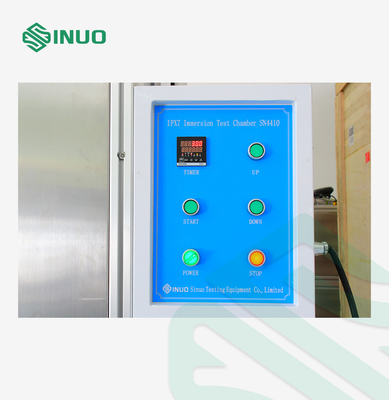

Control method	Buttons (non-PLC)
Test time	0.01 second-99.99hours can be preset
Immersion depth requirements	The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water
Test content	IPX7
Power supply	AC 220V,50Hz, 1KW
