IPX5 IPX6 Jet Nozzle IP Rating Test Equipment Nozzle IEC 60529

IPX5 IPX6 Jet Nozzle IP Rating Test Equipment Nozzle IEC 60529

Brand Name:	Sinuo
Model Number:	SN447
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	100 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Contents:

IPX5 And IPX6

Nozzle Internal Diameter:

Ф6.3mm, Ф12.5mm

Water Spray Distance:

2.5~3m

Applied Standard:

IEC60529

Pressure Gauge:

0~0.25MPa

Test Duration:

Likely 1min/m² (minimum: 3 Min)

IPX5 Delivery Rate:

12.5±0.625L/min

IPX6 Delivery Rate:

100±5 L/min

Packaging Details:

Carton Box

Supply Ability:

100 sets/month

Highlight:

IPX5 IPX6 jet nozzle

IEC 60529 test equipment

water ingress testing nozzle

Product Description

IPX5 IPX6 Jet Nozzle IP Rating Test Equipment Nozzle IEC 60529

Complied Standards & Clauses

IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX5 & IPX6.

Equipment Overview

The jet nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX5.

It ensures that the water spray speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 6.

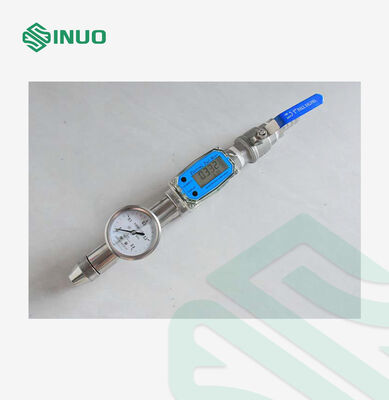

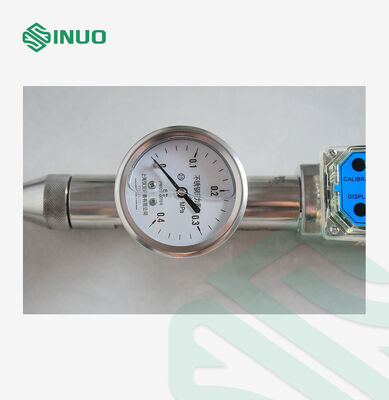

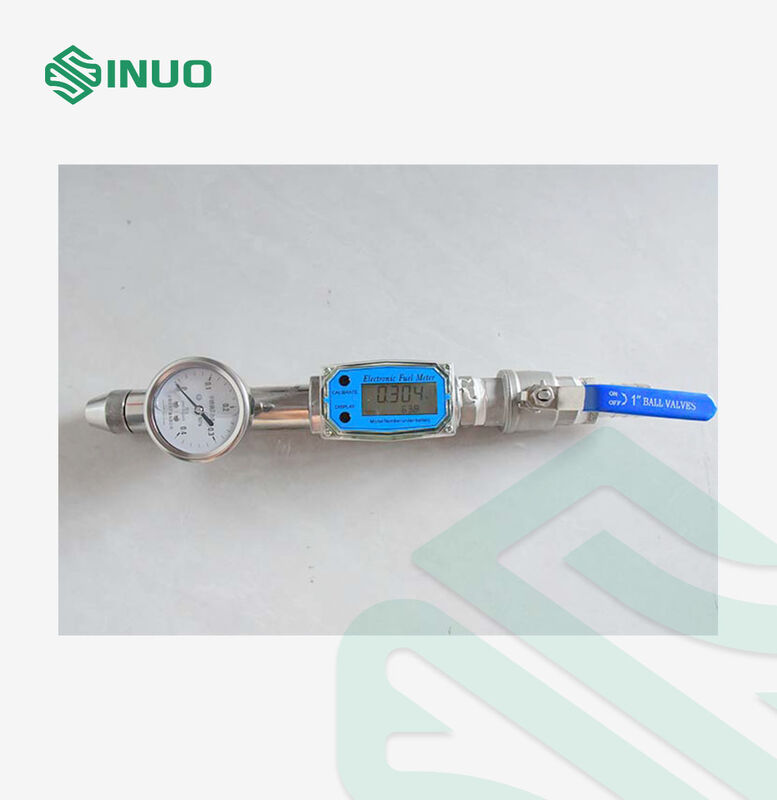

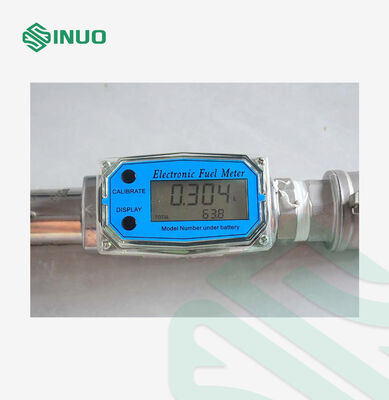

The Jet Nozzle IPX5 Set consists of a jet handle that is equipped with a digital flow mater and a pressure gauge.

– Ф6.3 mm nozzle that assemble easily to the gun.

– Stainless steel joint, easy to butt fiber hose.

Technical Parameters

Model	SN447B-Ф6.3mm	SN447B-Ф12.5mm(Optional)
Nozzle Internal Diameter	Ф6.3mm		Ф12.5mm
Delivery Rate per Standard requirements	12.5±0.625L/min		100±5 L/min
Distance from Nozzle to Enclosure Surface	2.5~3m
Core of the Substantial Stream	Circle of approximately 40 mm diameter at 2.5 m distance from nozzle		Circle of approximately 120 mm diameter at 2.5 m distance from nozzle
Test Duration	Likely 1min/m² (minimum: 3 min)
Pressure Gauge	0~0.25MPa
Digital flow meter	8L/min ~120L/min
