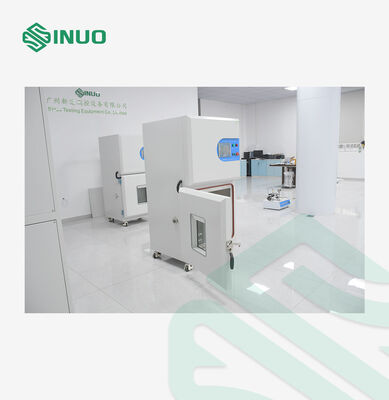

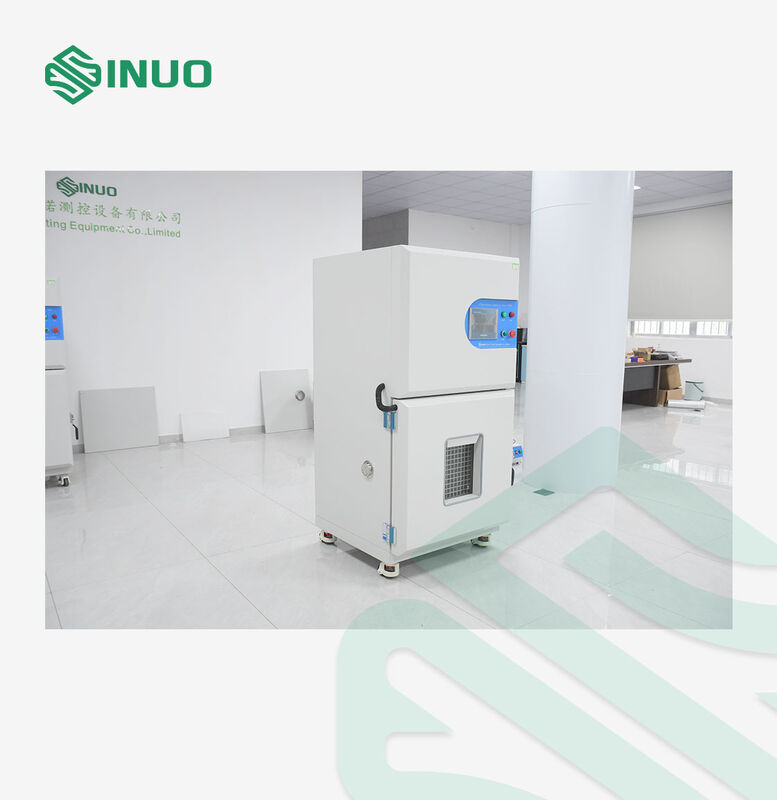

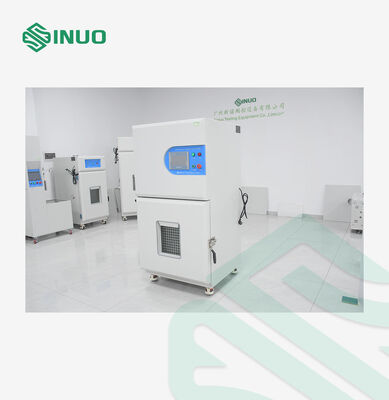

IEC 62619 Temperature Controlled External Short Circuit Tester 3000A

IEC 62619 Temperature Controlled External Short Circuit Tester 3000A

Brand Name:	Sinuo
Model Number:	SN551-1000L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Max. Load Current:

3000A

DC Response Time:

≤5μs

Built-in Resistor:

≤5mΩ

Control Method:

PLC And Touch Screen

Inner Chamber Size:

W1000*1000H*D1000mm

External Chamber Size:

W1200 X D1200 X H1800mm

Voltage Collection Range:

0～100V

Voltage Acquisition Rate:

1 Time/S

Packaging Details:

Plywood Case

Supply Ability:

1 sets/month

Product Description

IEC 62619 Temperature Controlled External Short Circuit Tester 3000A

Complied Standards & Clauses

It is conforms to the standard of UN38.3 clause 4.5 Test T.5, UL 1642, UL 1973, IEC 62619:2017 clause 7.2.1, IEC62133-1:2017 clause 7.3.2 , IEC62133-2:2017 clause 7.3.1 and 7.3.2 , IEC62133:2014 clause 7.3.2,8.3.1, 8.3.2, IEC60086-4 clause 6.5.1, IEC60086-4 clause 6.5.8 6.5.9 , and so on .

Equipment overview

The Temperature Controlled Type External Short Circuit Tester is a professional battery safety testing system designed to evaluate the external short-circuit performance of cells, battery packs, and battery modules under controlled temperature conditions. It is widely used to assess thermal stability, current response, and safety behavior during short-circuit events.

The tester features a high-current external short-circuit system combined with precise temperature control, enabling accurate simulation of extreme abuse conditions. Intelligent monitoring and data acquisition ensure real-time measurement of voltage, current, and temperature, with automatic protection and reliable test evaluation.

The is an ideal solution for lithium-ion battery manufacturers, EV and energy storage system suppliers, certification laboratories, and R&D centers, helping ensure product safety, regulatory compliance, and market readiness.

Technical Parameters

Max. load current	3000A
DC response time	≤5μs
Built-in resistor	≤5mΩ (resistance can be made according to requirements)
Inner chamber size	W10001000HD1000mm
External chamber size	W1200 X D1200 X H1800mm (subject to final design)
Control method	PLC and Touch screen
Data export	USB

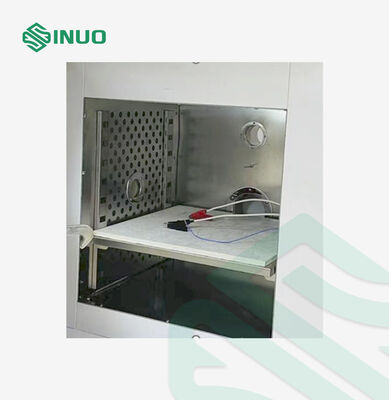

Inner box material	Stainless steel SUS201. Thickness 2.0mm
Sealing strip	Corrosion-resistant silicone.
Temperature control	Normal temperature RT+10℃~80℃ (can be preset) Temperature rise rate 3℃/min Temperature dial 1.0℃ Temperature uniformity: ±2℃
Test stop condition	1) The battery temperature drops to 20% lower than the peak; 2) Short circuit time
Battery surface temperature	Can monitor temperature changes during battery surface testing
Hall element collects current signal	Hall elements are used to collect the current generated when the short-circuit system is short-circuited, avoiding the generation of contact resistance, and the data transmission is stable and accurate;
Lead hole	There is a lead hole with a diameter of 50mm on the left side of the box for test wires to pass through.
