EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester

EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester

Brand Name:	Sinuo
Model Number:	SNQC1009-3
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 Sets / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Control Method:

PLC Control, Touch Screen Operation

Applied Standard:

IEC 62196-1，clause 7.11 And Etc.

Drive Mode:

Servo Motor

Test Stations:

3 Stations

Bending Angle:

0-360° Can Be Adjusted

Bending Rate:

0-60 Times/min, Can Be Preset

Load Weight:

20N, 25N, 50N, 75N, 100N

Bending Times:

0~999999 Can Be Preset

Packaging Details:

Plywood Case

Supply Ability:

1 Sets / Month

Product Description

EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester

Complied Standards & Clauses

IEC 62196-1:2014 "Plug,socket-outlets,vehicle couplers and vehicle inlets–Conductive charging of electric vehicle-Part1:Charging of electric vehicles up to 250A a.c and 400A d.c" clause 7.11 and clause 7.15

IEC 60309-1:2012 "Plug,socket-outlets and couplers for industrial purposes–Part1:General requirement" clause 24.4

Equipment Overview

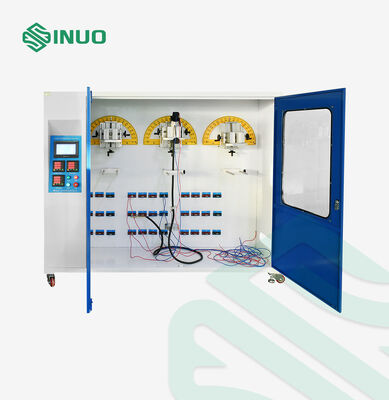

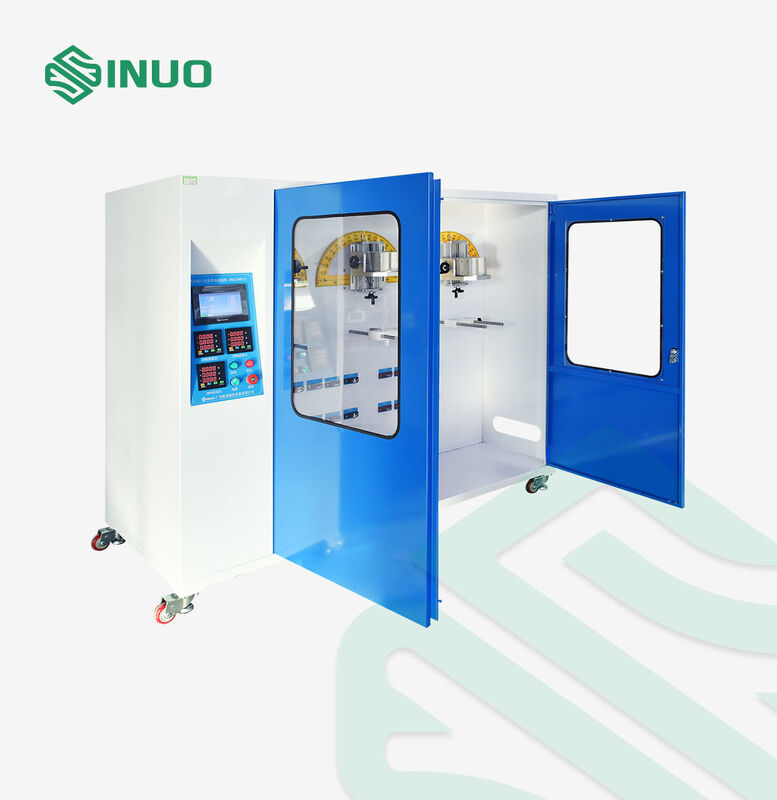

This Bending Mechanical Strength Test Equipment is designed for evaluating the durability and mechanical reliability of electric vehicle charging interfaces, industrial plugs, sockets, and couplers. It specifically tests the bending performance of the flexible power connection cable as required in the “mechanical strength” section of relevant standards.

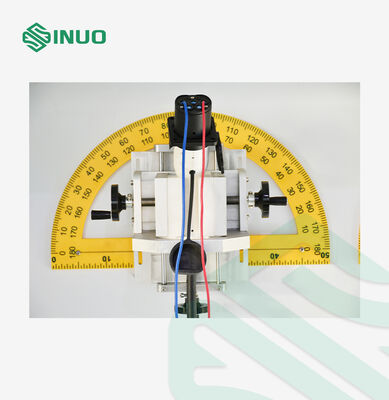

Driven by a high-precision servo motor, the system operates a turntable that swings the test specimen left and right, automatically stopping once the preset number of cycles is completed. The fixture adopts an aluminum mounting plate and is engineered to align the swing axis with the cable entry point of the sample, ensuring minimal lateral displacement and more accurate test results.

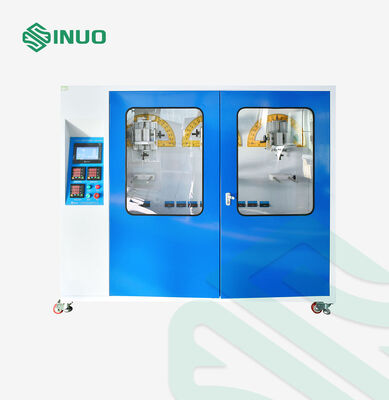

With a stable AC220V power supply and a durable structure, this machine provides reliable performance for laboratories, EV charging equipment manufacturers, and quality inspection agencies. Its compact footprint, robust build, and user-friendly operation make it an essential tool for mechanical endurance testing of power connection components.

Technical Parameters

Test stations	3 stations
Test judgment	Judging by the signal given whether the current is conducting or not
Electrical control method	PLC intelligent integrated control, 7-inch man-machine touch interface operation
Drive mode	Servo motor drive
Specimen clamping method	Mechanical clamping, adjustable clamping point position
Load weight	20N, 25N, 50N, 75N, 100N
Bending times	0~999999 can be preset, the default is 20000 times
Bending angle	0-360° can be adjusted arbitrarily (default ±45°)
Load power	External, optional load cabinet with adjustable voltage between conductors of 0-250V and adjustable current of AC0-400A
Bending rate	0-60 times/min, can be preset

Details

EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester 0

EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester 1
