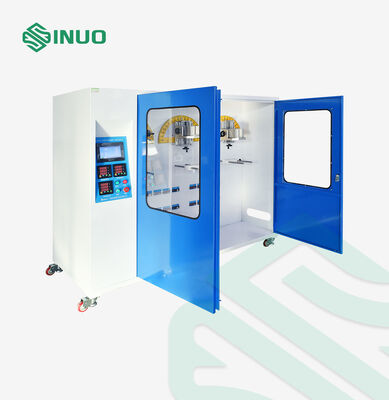

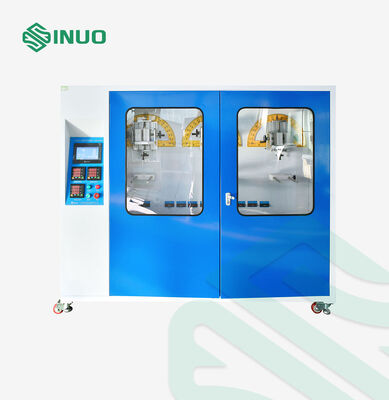

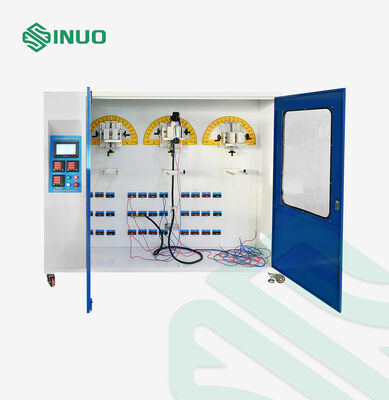

EV Charging Connector Bending Tester with 0-360° Adjustable Angle, PLC Control, and 3 Test Stations for Mechanical Strength Testing

EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester

Complied Standards & Clauses

IEC 62196-1:2014 "Plug,socket-outlets,vehicle couplers and vehicle inlets–Conductive charging of electric vehicle-Part1:Charging of electric vehicles up to 250A a.c and 400A d.c" clause 7.11 and clause 7.15

IEC 60309-1:2012 "Plug,socket-outlets and couplers for industrial purposes–Part1:General requirement" clause 24.4

Equipment Overview

Engineered for uncompromising reliability, this Bending Mechanical Strength Test Equipment delivers precise and repeatable evaluation of electric vehicle charging interfaces, industrial plugs, sockets, and couplers. It is purpose-built to verify the bending endurance of flexible power connection cables, ensuring full compliance with mechanical strength requirements in international standards.

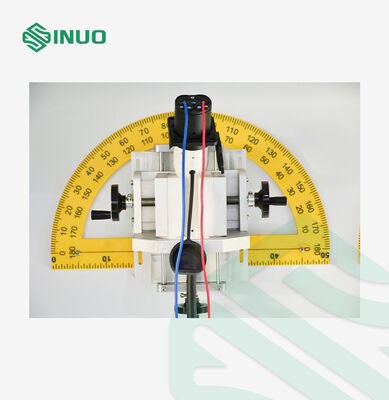

At its core, a high-precision servo motor drives a smooth, controlled swing motion, accurately simulating real-world cable bending during daily use. The intelligent control system runs tests automatically and stops exactly at the preset cycle count, eliminating human error and guaranteeing consistent results. An optimized aluminum fixture aligns perfectly with the cable entry point, minimizing lateral movement and ensuring highly reliable, true-to-life test data.

Designed for demanding test environments, the equipment features a robust, long-life structure and a stable AC 220V power supply for continuous operation. Its compact footprint saves valuable lab space, while the intuitive operation allows technicians to start tests quickly and confidently.

Reliable, precise, and built to last, this machine is the ideal testing solution for EV charging equipment manufacturers, R&D laboratories, and certification bodies seeking to prove the mechanical durability of power connection components with confidence.

Technical Parameters
