IEC 62196-1:2022 Compliant EV Plug and Connector Water Bath Tester with ±2°C Temperature Error and 1000mm1000mm1000mm Inner Size

IEC 62196-1:2022 Compliant EV Plug and Connector Water Bath Tester with ±2°C Temperature Error and 1000mm1000mm1000mm Inner Size

Brand Name:	Sinuo
Model Number:	SNQC1015-1000L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Clause:

Clause 30

Applied Standard:

IEC 62196-1:2022

Input Voltage:

Three Phase380V, 50/60Hz

Inner Size:

1000mm*1000mm*1000mm

Temperature Error:

±2°C

Max. Power:

5KW

Cooling:

Room Temperature~20°C

Heating:

Room Temperature~20°C

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

EV plug water bath tester

temperature controlled connector tester

electric vehicle water bath equipment

Product Description

Temperature Controlled EV Plug and Connector Water Bath Tester

Complied Standards & Clauses

This constant water bath is required by IEC 62196-1:2022 clause 30.

Equipment Overview

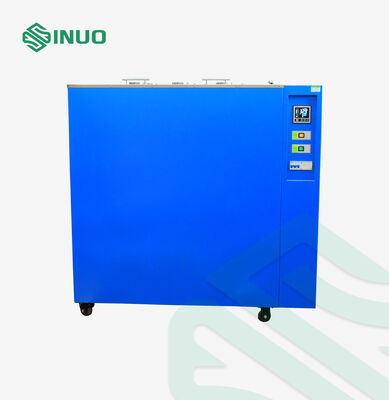

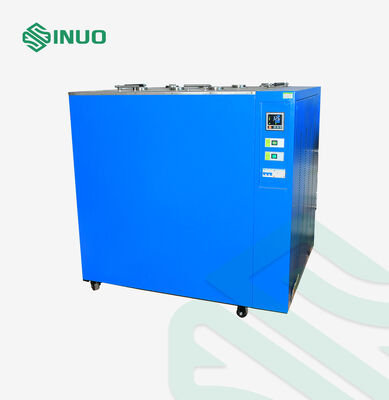

The IEC 62196-1 Constant Temperature Water Bath is a precision-engineered testing solution designed for thermal and water immersion testing of electric vehicle charging connectors and interfaces. Developed in strict accordance with IEC 62196-1 requirements, it provides stable, uniform, and repeatable temperature control to ensure accurate and compliant test results.

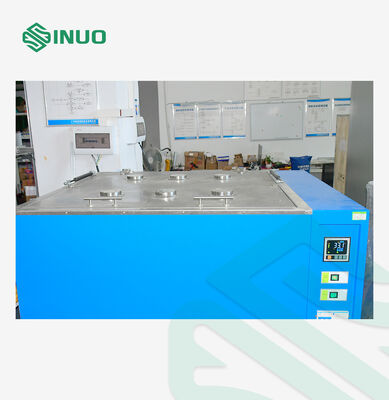

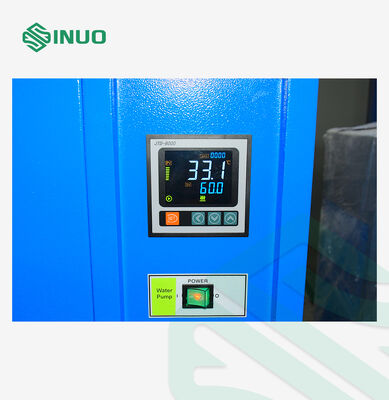

Featuring a high-quality stainless steel inner liner, the water bath offers excellent corrosion resistance, durability, and easy maintenance for long-term laboratory use. An advanced digital temperature control system delivers precise temperature setting and real-time display, allowing operators to monitor and adjust test conditions with confidence. To guarantee uniform temperature distribution, a bottom-mounted stirring system continuously circulates the water, ensuring consistent temperatures throughout the bath.

With its robust construction, reliable performance, and user-friendly operation, this constant temperature water bath is an ideal choice for EV charging equipment manufacturers, R&D laboratories, and certification bodies. It ensures dependable thermal testing of EV connectors, helping manufacturers validate product safety, performance, and compliance with international standards.

Technical Parameters

Inner size	1000mm1000mm1000mm
Chamber liner material	2mm 304 stainless steel
Input voltage	Three phase380V, 50/60Hz
Max. power	5KW
Temperature error	±2°C
Constant temperature range	Room temperatur~20°C Heating: Room temperature~20°C Cooling: Room temperature~20°C The required temperature is set, the water bath will achieve to the set value automatically.

Details

IEC 62196-1:2022 Compliant EV Plug and Connector Water Bath Tester with ±2°C Temperature Error and 1000mm*1000mm*1000mm Inner Size 0
