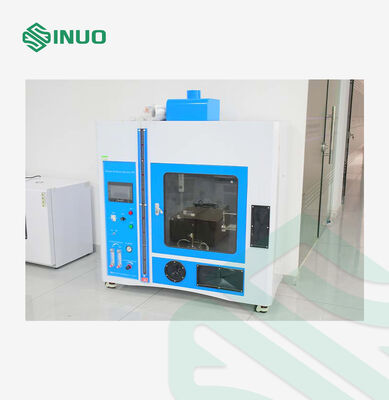

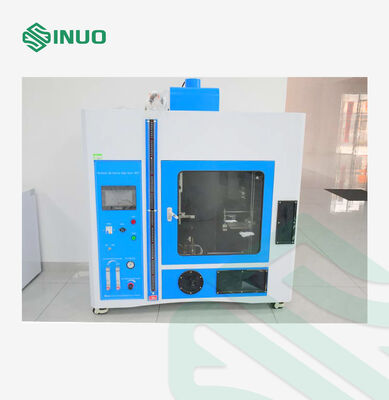

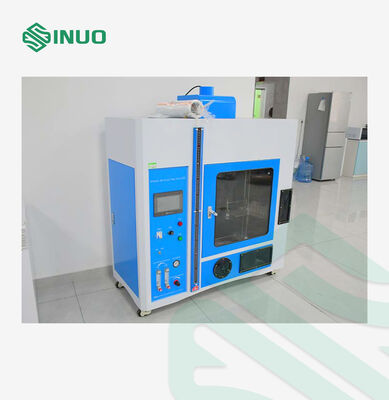

UL94 Compliant Flame Test Machine with PLC Control and 220V/50Hz for Vertical and Horizontal Burning Tests

UL94 Compliant Flame Test Machine with PLC Control and 220V/50Hz for Vertical and Horizontal Burning Tests

Brand Name:	Sinuo
Model Number:	SN771
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

IEC 60695-11-3 And Etc.

Control Method:

PLC And Touch Screen

50W Gas Flow:

105±5ml/min

500W Gas Flow:

965±30ml/min

50W Flame Test Angle:

0°,45°

500W Flame Test Angle:

20°

Burning Time:

0-9999X0.1S, Can Be Preset

Flame Applications:

0-9999 Times，can Be Preset

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

UL94 vertical burning test machine

horizontal flame test equipment

flammability testing device with warranty

Product Description

UL94 Vertical and Horizontal Burning Test Device Flame Test Machine

Complied Standards & Clauses

Conforms to UL94, IEC60695-11-2, IEC60695-11-3, IEC60695-11-4, IEC60695-11-10, IEC60695-11-20.

Equipment Overview

Ensure the safety and compliance of your products with the Horizontal and Vertical Flammability Tester, designed to evaluate the ignitability and flame propagation of plastic and non-metallic materials in electrical and electronic devices. Compliant with major international standards including UL94, IEC60695-11-2/3/4/10/20, IEC60065, this tester helps manufacturers accurately assess fire hazards at the earliest stages of ignition.

Equipped with an integrated ignition system featuring a 0.1-second flame delay, high-precision digital timers, and a multi-functional flame measuring gauge, the tester delivers reliable, repeatable, and precise results. A matte black background and large observation window ensure optimal visibility, while the stainless steel enclosure guarantees durability and corrosion resistance.

Compact yet robust, this flammability tester is ideal for household appliances, IT equipment, audio/video devices, and other electronic products, giving manufacturers confidence in their material choices and helping ensure compliance with global safety standards.

Technical Parameters

Working voltage	220V/50Hz
Power/grade	50W and 500W double power switching
Control operation mode	PLC control, 7 inch color touch screen operation, with infrared remote controller
Blast burner standard	IEC60695-11-3/IEC60695-11-4/10, UL94, etc. inner diameter:Φ9.5±0.3mm,length:100mm,made of brass
Gas pressure	0.1MPa
Gas flow	50W:105±5ml/min or 18±1mm;500W:965±30ml/min or 117±3 mm,flow meter adjustment
U type pressure gauge back pressure water column height	50W:10mm; 500W:125±5 mm
Test angle	50W: 0°,45°; 500W: 20°
Burning time	0-9999X0.1S Can be preset
Burning times	0-9999 times,Can be preset
Residual flame/Residual glow	0-9999X0.1S Can be displayed

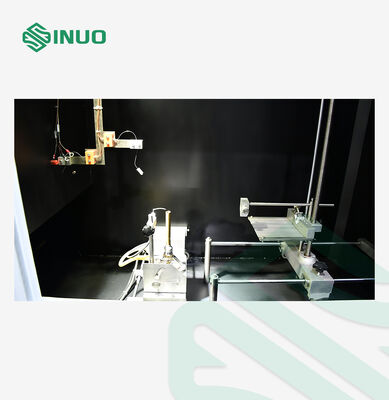

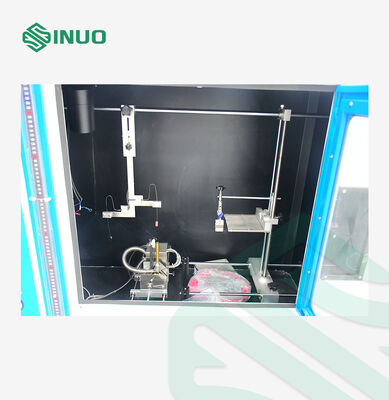

Lighting	Equip with lighting in the test chamber, with control
Test chamber and dimension	> 0.75 cube, black inwall, with exhaust fan, dimension:11005501200mm, 140kg

Details

UL94 Compliant Flame Test Machine with PLC Control and 220V/50Hz for Vertical and Horizontal Burning Tests 0
