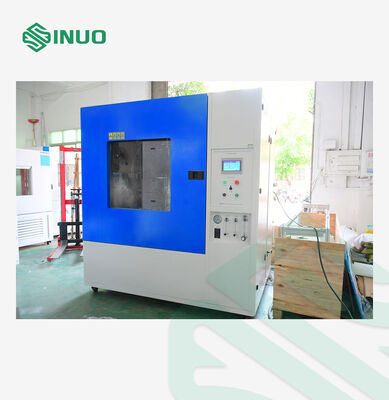

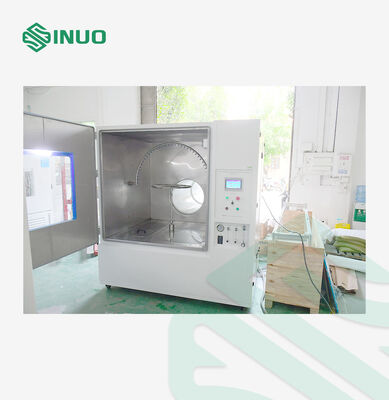

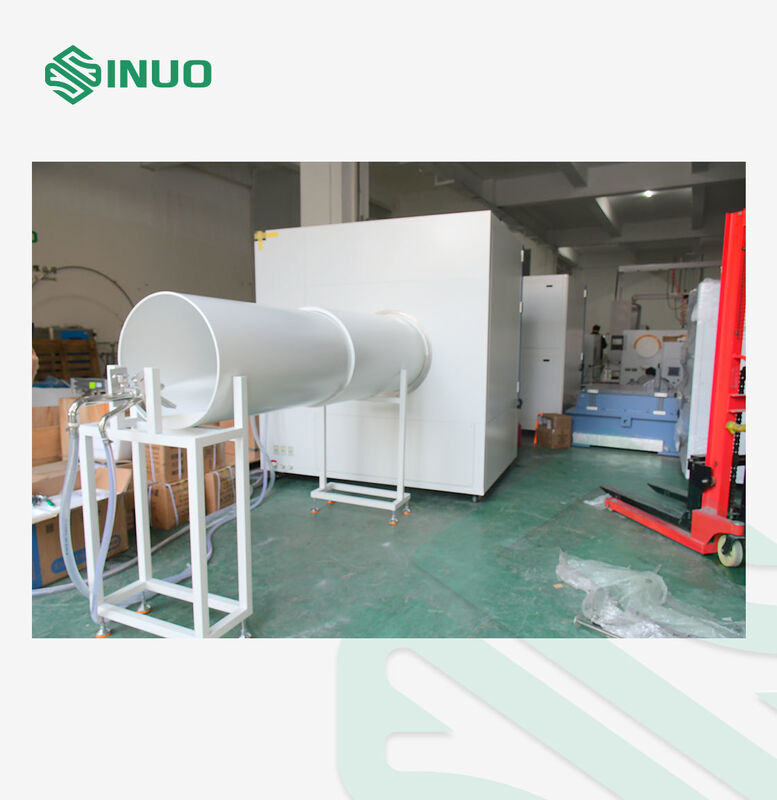

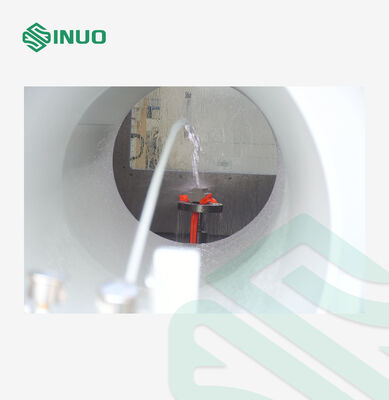

IEC 60529 IPX3 IPX4 IPX5 IPX6 Oscillating Tube Rain Spray Test Equipment

IEC 60529 IPX3 IPX4 IPX5 IPX6 Oscillating Tube Rain Spray Test Equipment

Brand Name:	Sinuo
Model Number:	SN4416-1400
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Outer Chamber:

L1880*W4200*H2200mm

Inner Chamber:

L1400*W1400*H1400mm

Turntable Speed:

1 -5r/min (adjustable)

Turntable Diameter:

￠200mm And 600mm

IPX5 Nozzle Jet Aperture:

6.3mm

IPX6 Nozzle Jet Aperture:

12.5mm

IPX5Jet Flow:

12.5±0.625

IPX6 Jet Flow:

100±5L/min

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

IEC 60529 IPX3 IPX4 IPX5 IPX6 Oscillating Tube Rain Spray Test Equipment

Complied Standards & Clauses

Conforms to IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.

Product Overview

The Oscillating Tube Rain Test Chamber is designed to accurately evaluate the water ingress protection performance of products under IPX3, IPX4, IPX5 and IPX6 conditions. By simulating natural rainfall and powerful water spray environments, it provides a reliable and repeatable testing solution for assessing the durability and safety of enclosures exposed to water.

Widely used for outdoor lighting, household appliances, automotive components and electrical enclosures, this chamber helps manufacturers identify potential risks such as corrosion, deformation and electrical failure caused by water penetration. Compliant with international IP code standards, it supports product design validation, quality control and certification testing, ensuring products meet global waterproof requirements before market release.

Technical Parameters

Basic Parameters
Inner Chamber Size	L1400W1400H1400mm
Outer Chamber Size	L1880W4200H2200mm
Allowed dimensions of products	Length and width ≤1000mm, height ≤100mm
Turntable Diameter	￠200mm and 600mm
Turntable Maximum Load Bearing	≤20KG
Test Time	0-999 min
Flow Adjustment Method	Manually adjust flow by adjusting flow meter on the panel
Turntable Rotation Method	Always positive / positive and negative alternate
Turntable Speed	1-5r/min (adjustable)
Power supply for sample	Configured with a waterproof socket inside the chamber for client to power on sample during test
Water supply for testing	With a built-in water tank of approx. 90L, the water can be recycled
Total Weight	Approx. 450kg
Required site place	4.4m(D)2.2m(W)2.4m(H)

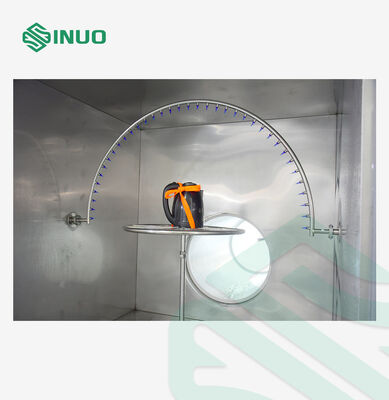

IPX34 Oscillating Tubes Parameters
Oscillation Tube	R200 mm and R400mm and R600mm
Spray Aperture Spacing	50 mm
Distance between Nozzle Sample	Within 200mm
Angle Between Two Holes	120°(IP3) 180°(IP4)
Spray Pressure	80-150Kpa
Needle Hole	φ0 .4 mm
Oscillating Speed	IPX3: 15times/min; IPX4: 5times/min
Water Flow of Each Hole	0.07 L/min +5%
Oscillating Tube Swing Angle	±60° (IPX3), approximately ±160°(IPX4) (Note: standard requires IPX3:120°; IPX4: almost 360°, but due to there is aturntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
