IEC 61851-23 Ed.2 EVSE Side B Cable Assembly Anchorage Strain Relief Test Equipment

IEC 61851-23 EV Charging Stations Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment

Designed and manufactured according to IEC 61851-23:2023 clause 11.6.102 and Figure 110, Figure 111 and Table 114.

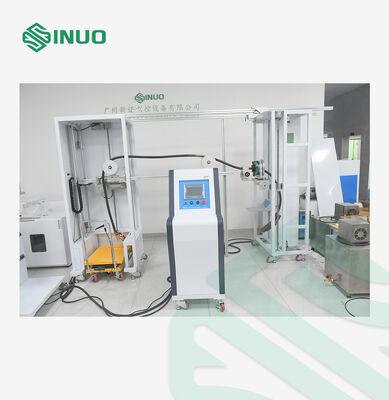

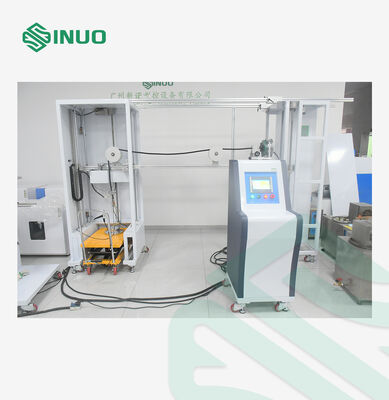

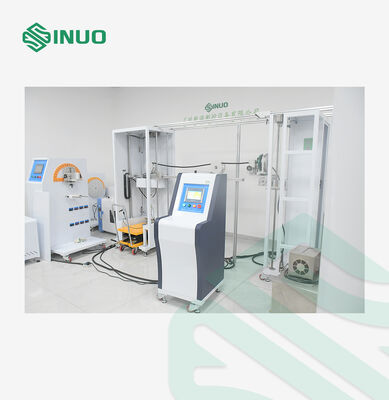

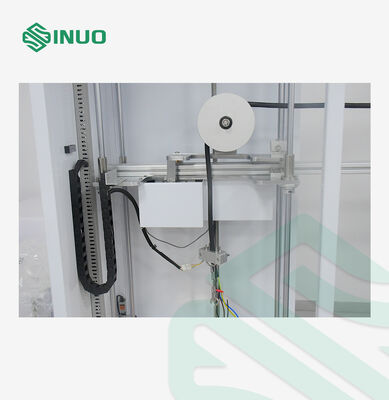

The Cable Anchorage Pull Force and Torque Test Apparatus (Model SNQC1007B) is a high-precision testing system designed for EVSE manufacturers and accredited laboratories requiring reliable and repeatable compliance verification. Developed in strict accordance with IEC 61851-23:2023, Clause 11.6.102, the system is used to assess whether EV AC/DC charging station cable assemblies and anchorage structures can withstand the specified tensile forces and torque without exceeding the allowable displacement limits.

The SNQC1007B features PLC-based intelligent control, motor-driven force application, and precision weight loading, ensuring stable force output, accurate measurement, and excellent test repeatability. Test parameters can be flexibly configured to accommodate different cable sizes and test requirements. A robust mechanical structure combined with an intuitive touch-screen human–machine interface enables efficient and user-friendly operation, even for first-time users.

By accurately simulating real-world pulling and twisting stresses applied to charging cables during normal use, this apparatus helps manufacturers verify compliance with stringent international safety requirements. It supports the development of safer, more reliable, and fully compliant EV charging infrastructure, while reducing certification risks and improving test efficiency.

Test Content	EV Charging Station Side B Cable Assembly Anchorage Strain Relief Test Apparatus
Equipment Structure Schematic
Control Operation Mode	PLC automatic control, touch screen operation
Torque Application	Meets 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications, realized by superposition of weights
Drive Mode	Electric
Pull Force Application	Meets 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights
Pull Cycles	1-999999 cycles, can be preset, default is 100±1 cycles

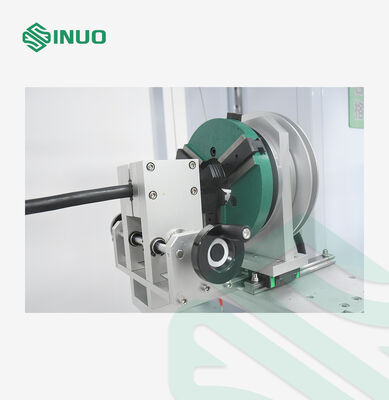

Torque Wheel	R100mm(Ф200mm) ±0.5mm
Tensile Frequency	1 time/s, the actual pull time is detected by electrical signal
Fixture	Universal clamp, one set
Torque Application Time	0-99H59M59S, can be preset
Power Failure Protection	With power-off data storage memory function
Additional Configuration	The equipment features an adjustable fixture height ranging from 500 to 1200 mm (i.e., the cable outlet position), allowing it to meet the testing requirements of charging stations with different cable outlet positions.
Weight Matching Selection Table
