EV Connector Flexing Test Equipment with Servo Motor Drive 0-360° Adjustable Bending Angle IEC62196-1 Compliant

EV Connector Flexing Test Equipment with Servo Motor Drive 0-360° Adjustable Bending Angle IEC62196-1 Compliant

Brand Name:	Sinuo
Model Number:	SNQC1009
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Station:

Single Station

Equipment Weight:

150kg

Bending Rate:

0-60 Times/min

Bending Angle:

0-360° Adjustable

Equipment Dimensions:

W1000*D800*H1600mm

Drive Mode:

Servo Motor Drive

Power Supply:

AC220V±10%/50-60Hz

Load Weight:

20N,25N,50N,75N,100N,140N

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Servo Motor Drive EV Connector Flexing Test Equipment

0-360° Adjustable Bending Angle Bending & Flexing Test System

IEC62196-1 Compliant EV Plug Flexibility Testing Machine

Product Description

Electric Vehicle Charging Connector Flexing Test Equipment

Bending & Flexing Test System

This specialized testing system evaluates the mechanical strength and durability of electric vehicle charging connectors, industrial plugs, sockets, and couplers through comprehensive flexing performance analysis.

Compliance Standards

Conforms to IEC62196-1:2014 clause 7.11 and clause 7.15
Complies with IEC60309-1:2012 clause 24.4

Product Overview

The EV Plug Flexibility Testing Machine is engineered to assess the mechanical integrity of electric vehicle charging connectors at the critical cable entry point—the area most susceptible to repeated bending stresses during real-world operation.

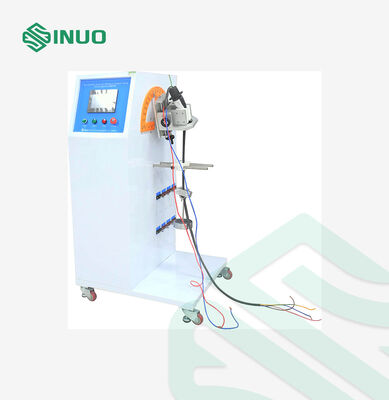

Utilizing high-precision servo motor technology, this system drives a turntable that oscillates test samples through controlled left-right movements. The intelligent control system automatically halts operation upon reaching preset cycle counts and provides clear completion signals. Advanced servo control ensures precise swing angles with minimal lateral displacement, guaranteeing test repeatability and reliability.

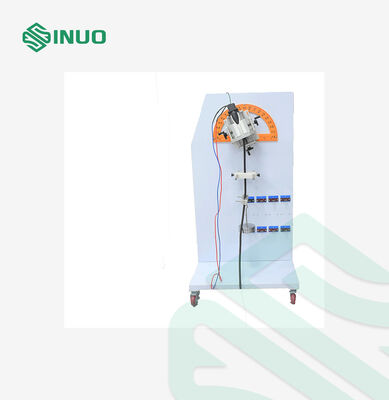

Large-size specimens are securely mounted on durable aluminum plates, with the swing axis precisely aligned to the cord entry point. This configuration accurately simulates real application stresses while minimizing unnecessary strain for authentic mechanical simulation.

Designed for demanding testing environments, the equipment operates on AC220V±10% / 50–60Hz power input and delivers stable performance with a 3KW power rating. Ideal for R&D laboratories, compliance testing facilities, and quality assurance departments specializing in EV connectors and industrial power components.

Technical Specifications

Parameter	Specification
Equipment Dimensions	Approx.: W1000 × D800 × H1600mm
Equipment Weight	150kg
Test Judgment Method	Current conduction signal analysis

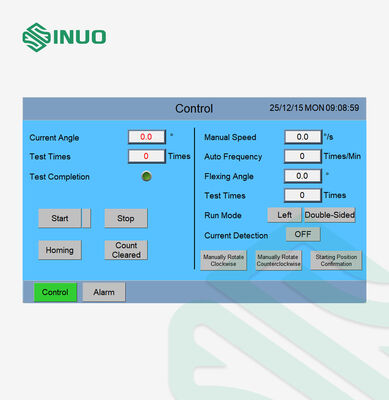

Electrical Control	PLC intelligent integrated control with 7-inch HMI touch interface
Drive System	Servo motor drive
Load Weight Options	20N, 25N, 50N, 75N, 100N, 140N
Bending Angle Range	0-360° adjustable (default ±45°)
Bending Cycle Capacity	0-999,999 preset cycles (default 20,000 cycles)
Bending Rate	0-60 cycles/min, fully adjustable
Load Power Supply	External connection with optional load cabinet featuring adjustable voltage (0-250V between conductors) and adjustable current (AC 0-400A)
Specimen Clamping	Mechanical clamping with adjustable clamping point position

Product Details
