EV Connector Testing Equipment for Airtightness Testing and Automatic Evaluation with 64 Parameter Channels

EV Connector Testing Equipment for Airtightness Testing and Automatic Evaluation with 64 Parameter Channels

Brand Name:	Sinuo
Model Number:	SNQC1017A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Pressure Resistance:

1 MPa

Measurement Range:

0 To ±2000 Pa

Storage Temperature:

–20°C To 70°C

Operating Temperature:

–5°C To 40°C

Test Cycle Setting:

0–999s

Parameter Channels:

64 Channels (1–64)

Weight:

Approx. 40 Kg

Humidity:

< 80% RH, Non-condensing

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Airtightness Testing EV Connector Testing Equipment

Automatic Evaluation Electric Vehicle Charging Connector Tester

64 Parameter Channels EV Charging Gun Leak Detection System

Product Description

EV Connector Testing Equipment Providing Airtightness Testing and Automatic Evaluation for Electric Vehicle Charging Components

The Electric Vehicle Charging Connector & Water Pipe Air Tightness Tester is a high-precision leak detection solution designed for EV charging gun components and water pipes. It performs airtightness and pressure-drop tests based on IPX7 standards to ensure product reliability and identify defective incoming materials before assembly.

This tester provides stable pressure output, micro-leakage monitoring, automatic evaluation, and data recording—ideal for EV charger manufacturers, charging gun assembly lines, and laboratory verification departments.

Technical Parameters

Technical Item	Specification
Display Resolution	0-4 decimal places adjustable
Measurement Range	0 to ±2000 Pa
Pressure Resistance	1 MPa
Accuracy	±0.1% FS
Overpressure Resistance	3* full-scale pressure
Test Pressure Units	kPa, kg/cm², PSI, mbar, bar, Torr, mmH₂O, mmHg
Leakage Units	Pa, Pa/s, mL/s, mL/min, L/min, Pa*m³/s
Parameter Channels	64 channels (1-64)
Test Cycle Setting	0-999 seconds
CPU	32-bit processor
Power Supply	AC 220V ±10%, 50 Hz
Required Air Source	Clean, dry air ≥ 600 kPa
Operating Temperature	-5°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	< 80% RH, non-condensing

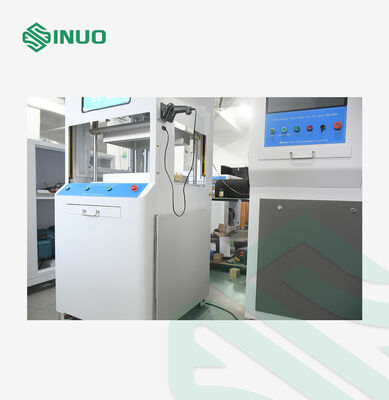

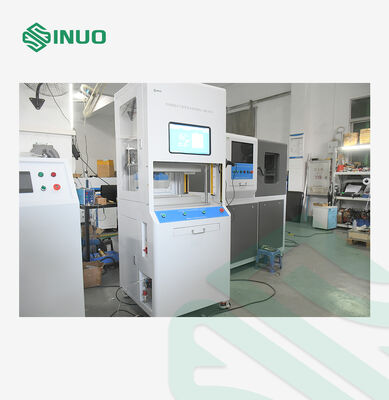

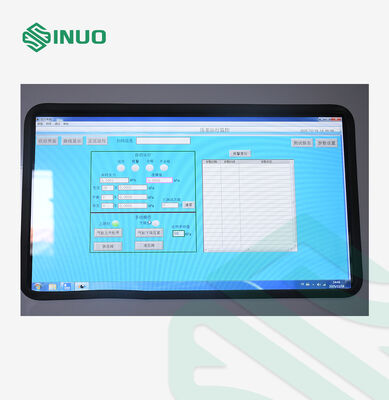

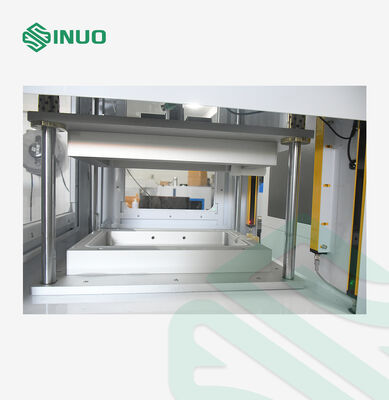

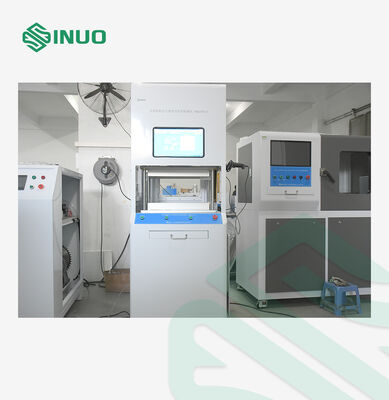

Product Images
