AC Charging Gun Comprehensive Test System AC EV Connector Testing Machine

AC Charging Gun Comprehensive Test System AC EV Connector Testing Machine

Brand Name:	Sinuo
Model Number:	SNEQ08
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Resistance Test Range:

1 – 5000Ω

Thermistor Test Range:

100 – 50,000Ω

Voltage Withstand Range:

AC 0 – 5kV/DC 0-6kV

Insulation Test Voltage:

DC 100 – 1000V

Insulation Resistance Range:

1MΩ – 1GΩ

Data Input Method:

Scanner (barcode/QR Code)

Control System:

PLC + Industrial PC

Computer Integration:

Supports MES Integration (optional)

Air Supply:

0.6 MPa

Built-in Resistance Range:

1–5000 Ω

16A AC Plug:

Not Pressed RC: 680Ω,Pressed RC+R4:3.38 KΩ

32A AC Plug:

Not Pressed RC: 220Ω,Pressed RC+R4:3.52 KΩ

63A AC Plug:

Not Pressed RC: 100Ω,Pressed RC+R4:3.4 KΩ

Dimensions:

W 900 × D 800 × H 1800 Mm

Weight:

300 Kg

Packaging Details:

Plywood box

Supply Ability:

20 sets/month

Product Description

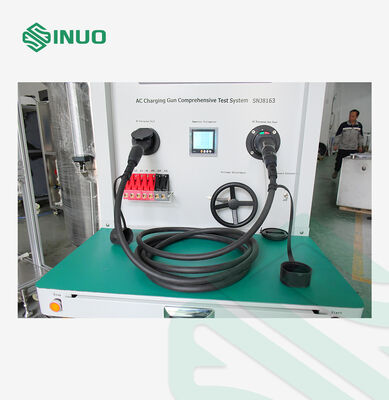

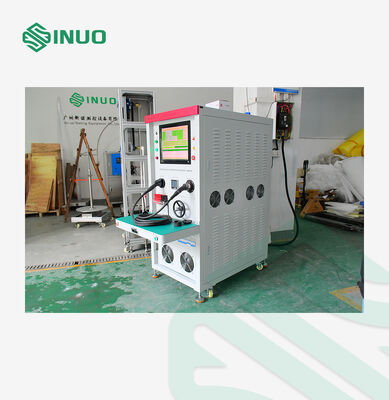

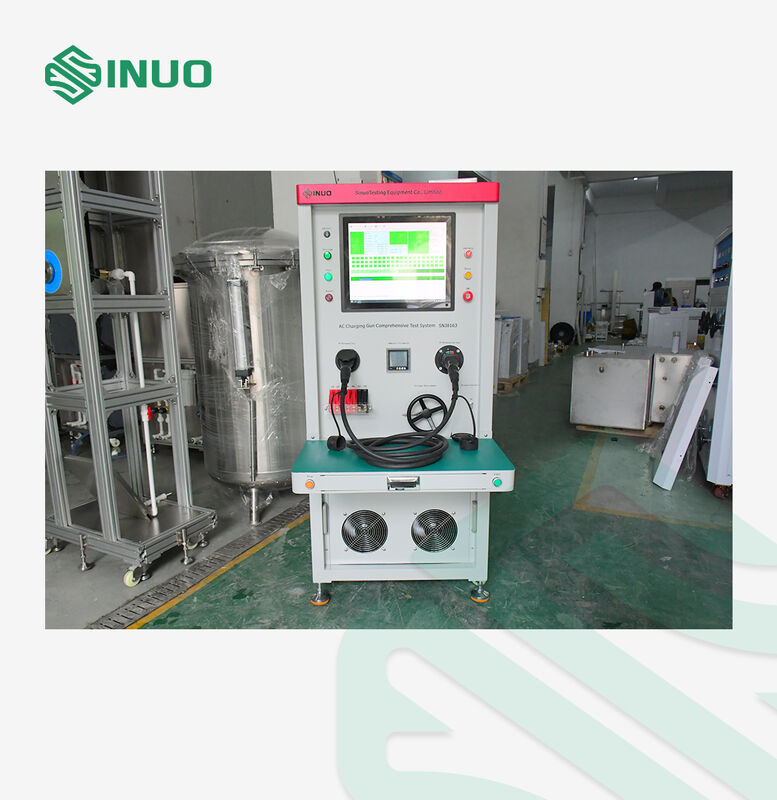

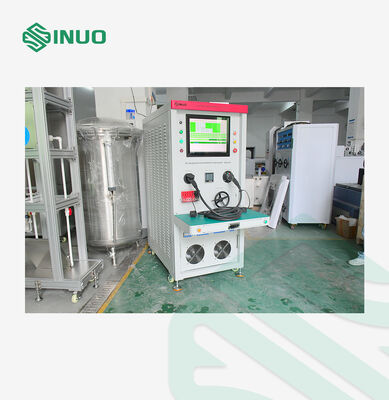

AC Charging Gun Comprehensive Test System EV Connector Testing Machine

This test system is mainly used for functional inspection of AC plugs according to Chinese (GB), European (EU), and American (UL) standards. Each plug can be assigned a unique QR code, and the test results are automatically saved in reports. Qualified results can be printed directly. All functions are tested automatically in a single run, providing high efficiency and labor savings, making it suitable for mass production full inspection in factories.

Testing Functions

Breakage, continuity, short circuit, and wiring sequence tests for each individual wire
Continuity resistance test of the main conductor
Built-in resistance measurement (including both pressed and unpressed states of push-button switches)
Current carrying capacity verification and voltage drop measurement
Insulation test between wires
Dielectric withstand (high-voltage) test between wires
Thermocouple wire testing

Technical Specifications

Power Supply	Single-phase AC 220V / 50Hz
Air Supply	0.6 MPa
Control System	PLC + Industrial PC
Barcode Scanning	The device comes with a scanner to read barcodes or QR codes on the test samples. Scan the product before testing; after the test, the scanned code is automatically associated with the test record, enabling traceability.
Wire Continuity Tests	Break, continuity, short circuit, and wiring sequence tests are performed via PLC Input/Output scanning. PLC automatically determines pass/fail.
Built-in Resistance Range	1–5000 Ω, Accuracy: 1% Upper and lower limits can be set to determine product quality.
CC & PE Resistance (Button Pressed / Not Pressed)	16A AC plug: Not Pressed RC: 680Ω,Pressed RC+R4:3.38 kΩ 32A AC plug:Not Pressed RC: 220Ω,Pressed RC+R4:3.52 kΩ 63A AC plug:Not Pressed RC: 100Ω,Pressed RC+R4:3.4 kΩ The measurement accuracy of the resistance must reach 1%–2%.
Thermistor Testing Range	100–50,000 Ω, Accuracy: 2% Upper and lower limits can be set to determine continuity quality.
Current Carrying Capacity & Voltage Drop Test	Measures voltage drop across connectors under rated and overload current conditions. Built-in three-phase adjustable transformer: 0-380V output, adjustable three-phase load 0-35A. Supported test ranges: 3.3 kW 16A single-phase 7.4 kW 32A single-phase 11 kW 16A three-phase 22 kW 32A three-phase
Insulation Resistance Test	Single-phase: L-N, L-E, E-N Three-phase:L1/L2/L3/E-N, L1/L2/L3/N-E, N/L2/L3/E-L1, L1/N/L3/E-L2, L1/L2/N/E-L3 Parameters: Test voltage: DC 100–1000V (adjustable) Lower limit: 1 M–1 GΩ (adjustable) Accuracy: ±5% Alarm when resistance < set value
Dielectric Withstand (Hi-Pot) Test	Single-phase: L-N, L-E, E-N Three-phase: L1/L2/L3/E-N, L1/L2/L3/N-E, N/L2/L3/E-L1, L1/N/L3/E-L2, L1/L2/N/E-L3 Parameters: Test voltage: AC 0–5 kV / DC 0–6 kV (adjustable) Leakage current limit: AC 0.1–20 mA, DC 0.01–5 mA Accuracy: ±1.5% + 3 digits Digital display of voltage, automatic programmable adjustment Alarm if leakage current exceeds set value
Test Station	Single station, one product per test
Plug Holders	EU AC vehicle plug holder, EU AC pedestal plug holder, GB AC plug holder, US AC plug holder
Tail Plate	Special pressing fixture matching the test product, with clamp and protective plate
Socket Height	750–1000 mm, ergonomically designed
