EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System

EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System

Brand Name:	Sinuo
Model Number:	SN558-HSKT300
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Work Platform:

800 × 800 Mm

Half-sine Pulse Duration:

2.5—30ms

Half-sine Peak Acceleration:

15—350 G

Sampling Frequency:

192KHz

Lifting Method:

Hydraulic Lift

Total Equipment:

2000 Kg

Device Size:

1600× 1300× 2250mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Hydraulic Lift Acceleration Test Equipment

Battery Acceleration Test Equipment

EV Battery Acceleration Test Equipment

Product Description

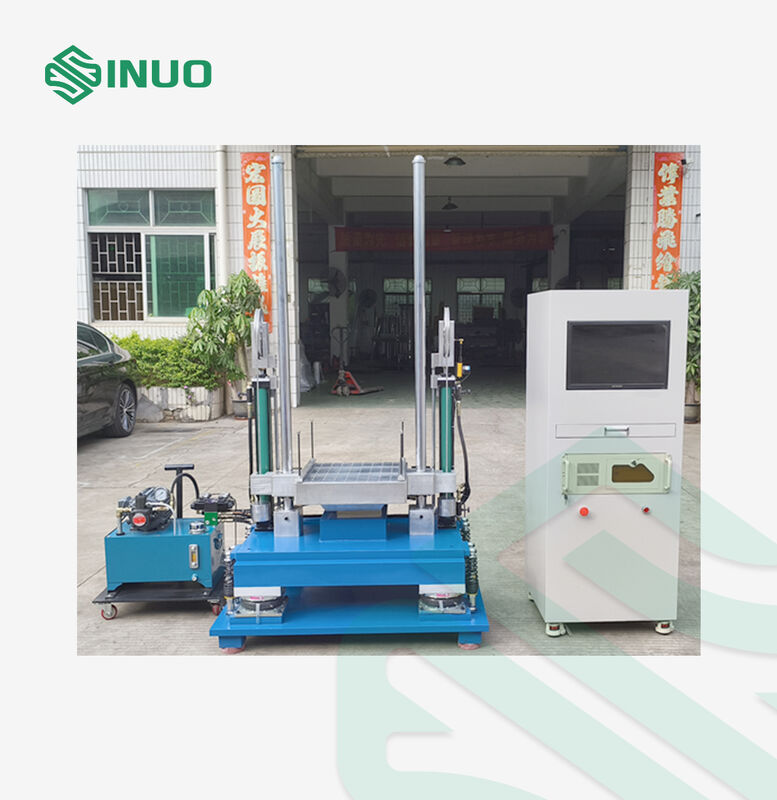

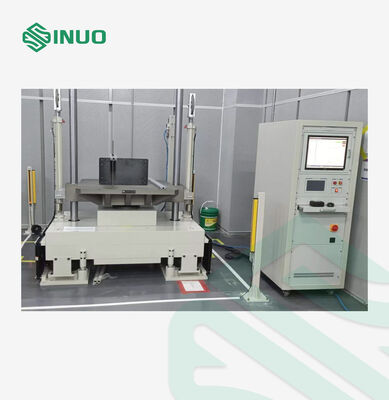

Acceleration Shock Test System Hydraulic Lift Mechanical Shock Test Bench

Complied Standards & Clauses

Conforms to MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, and MIL-STD-883E, etc.

Product Overview

This device is primarily suitable for shock testing applications in electronics, aerospace, shipbuilding, military, automotive, and transportation. By selecting different waveform generators, it can perform shock tests using half-sine, post-peak sawtooth, or square waves.

Installation and Environmental Requirements

Ambient Temperature: 5℃ ~ +28℃ (average temperature within 24 hours ≤ 28℃)
Relative Humidity: ≤ 85% RH

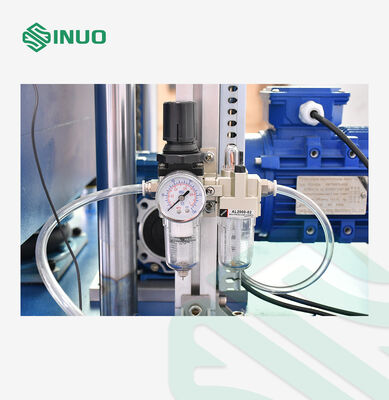

Air Supply: 0.5 – 0.8 MPa
Power Supply: Three-phase, five-wire system
Voltage Input: AC 380V
Frequency Fluctuation Range: (50 ± 0.5) Hz
Grounding Resistance: PGND cable resistance < 4 Ω
Installation Requirement:
The user shall provide an air or power switch of appropriate capacity at the installation site. This switch must be dedicated exclusively to this equipment.

Technical Parameters

Working platform	800 × 800 mm
Working platform Material	High-strength imported high-quality aluminum alloy
Maximum load	300kg
Half-sine peak acceleration	15—350 G
Half-sine pulse duration	2.5—30ms
Lifting method	Hydraulic lift
Equipment size	1600× 1300× 2250mm
Equipment weight	2000 kg
Measuring System
Input channel	2 channels
Sampling frequency	192KHz
Input form	Voltage, Electric Charge
Voltage range	-10v--+10v
Coupling method	AC, DC, ICP
Shock waveform	Half Sine
Communication interface	USB2.0
Support standard	National standard, national military standard, U.S. military standard, user-defined standard
Operating system	Microsoft Windows7/10
System Acceleration Sensor
Brand	YMC
Output method	Charge type
Sensitivity	3.93pC/g
Frequency range	0.5—12KHz
Acceleration range	±2500G
Working environment	-40~+160℃
Other Instructions
Power supply	380V±10％
