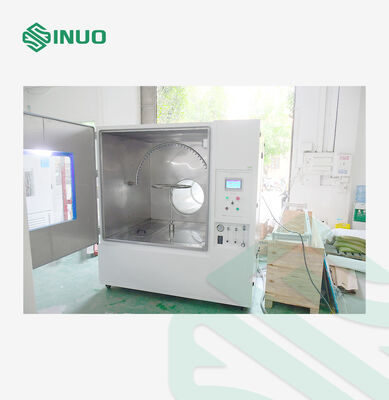

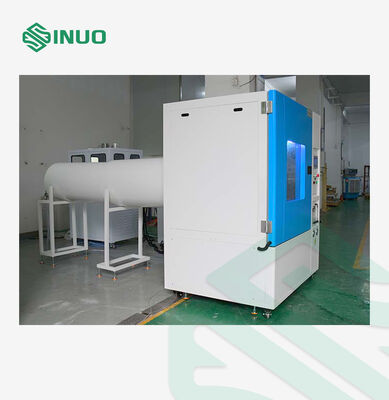

IPX3 IPX4 IPX5 Waterproof IP Code Test Chamber Oscillating Tube Rain Test Chamber

IPX3 IPX4 IPX5 Waterproof IP Code Test Chamber Oscillating Tube Rain Test Chamber

Brand Name:	Sinuo
Model Number:	SN4416-1400
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Outer Chamber:

L1880*W4200*H2200mm

Inner Chamber:

L1400*W1400*H1400mm

Turntable Speed:

1 -5r/min (adjustable)

Turntable Diameter:

￠200mm And 600mm

IPX5 Nozzle Jet Aperture:

6.3mm

IPX6 Nozzle Jet Aperture:

12.5mm

IPX6 Jet Flow:

100±5L/min

IPX5Jet Flow:

12.5±0.625

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

IPX3 waterproof test chamber

IPX5 oscillating tube rain tester

water ingress testing equipment with warranty

Product Description

IPX3 IPX4 IPX5 Waterproof IP Code Test Chamber Oscillating Tube Rain Test Chamber

Oscillating Tube Rain IPX3 IPX4 IPX5 IPX6 Waterproof IP Code Test Chamber

Complied Standards & Clauses

Conforms to IEC60529:1989 +A1:1999 +A2:2013 "Degrees of protection provided by enclosures (IP Code)" IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.

Product Overview

The destruction of products and materials by natural water (rain, sea, river, etc.) causes significant economic losses annually. Common damages include corrosion, fading, deformation, strength reduction, expansion, and mildew. Electrical products are particularly vulnerable to short circuits and fire hazards when exposed to moisture. Therefore, enclosure protection water testing is an essential quality control process for specific products and materials.

Application Areas

Outdoor lighting systems
Household appliances
Automotive components
Electronic and electrical products

Equipment Function

This equipment tests the physical and related properties of electronic and electrical products, lighting fixtures, electrical cabinets, components, automotive and motorcycle parts under simulated climatic conditions. Test results verify whether product performance meets specifications, supporting design improvements, validation, and factory inspections.

Technical Parameters

Basic Parameters

Parameter	Specification
Inner Chamber Size	L1400 * W1400 * H1400mm
Outer Chamber Size	L1880 * W4200 * H2200mm
Allowed Product Dimensions	Length and width ≤1000mm, height ≤100mm
Turntable Diameter	￠200mm and 600mm
Turntable Maximum Load Bearing	≤20KG
Turntable Speed	1-5r/min (adjustable)
Turntable Rotation Method	Always positive / positive and negative alternate
Flow Adjustment Method	Manual adjustment via flow meter on control panel
Test Time	0-999 minutes
Power Supply for Sample	Integrated waterproof socket for powering samples during testing
Water Supply for Testing	Built-in 90L water tank with recycling capability
Total Weight	Approximately 450kg
Required Site Space	4.4m(D) * 2.2m(W) * 2.4m(H)

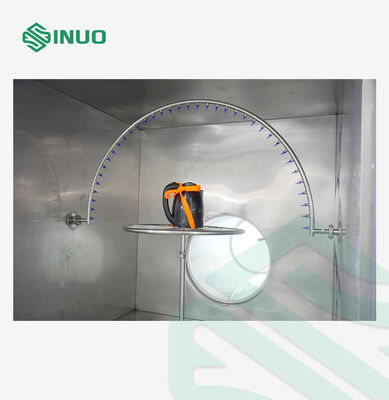

IPX34 Oscillating Tubes Parameters

Parameter	Specification
Oscillation Tube	R200mm, R400mm, and R600mm
Distance Between Nozzle and Sample	Within 200mm
Spray Aperture Spacing	50mm
Oscillating Tube Swing Angle	±60° (IPX3), approximately ±160° (IPX4)
Angle Between Two Holes	120° (IPX3), 180° (IPX4)
Needle Hole	φ0.4mm
Oscillating Speed	IPX3: 15 times/min; IPX4: 5 times/min
Water Flow of Each Hole	0.07 L/min ±5%
Spray Pressure	80-150Kpa
