Electric Vehicle Connectors Temperature Rise Test System 100A IEC 62196-1

Electric Vehicle Connectors Temperature Rise Test System 100A IEC 62196-1

Brand Name:	Sinuo
Model Number:	SNQC1006-100A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Measurement Point:

16 Channels

Output Current Mode:

Continuous/ Intermittent

Temperature Measurement Range:

0~400°C

Temperature Scanning Speed:

1 To 255 Seconds All Channels

Temperature Data Record:

The Data Can Be Stored U Disk

Intermittent Mode Test Cycles:

1～99999 Cycles

Continuous Mode Test Time:

0.01～99.99 Hours

Intermittent Mode Test Time:

0.01～99.99 Hours

Output Constant Adjustable Current:

AC 0-100A

Load Test Output Voltage:

Below AC 5V

Dimensions:

Approx. L 800mm* W 680mm* H1610mm

Weight:

125KG

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

62196-1 Electric Vehicle Connectors

100A Electric Vehicle Connectors

Product Description

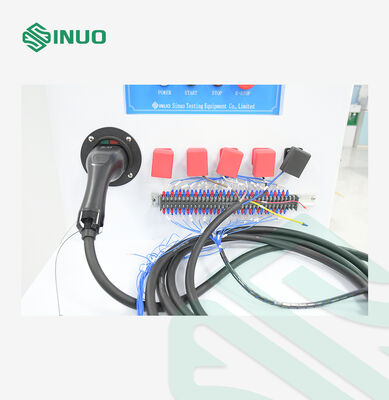

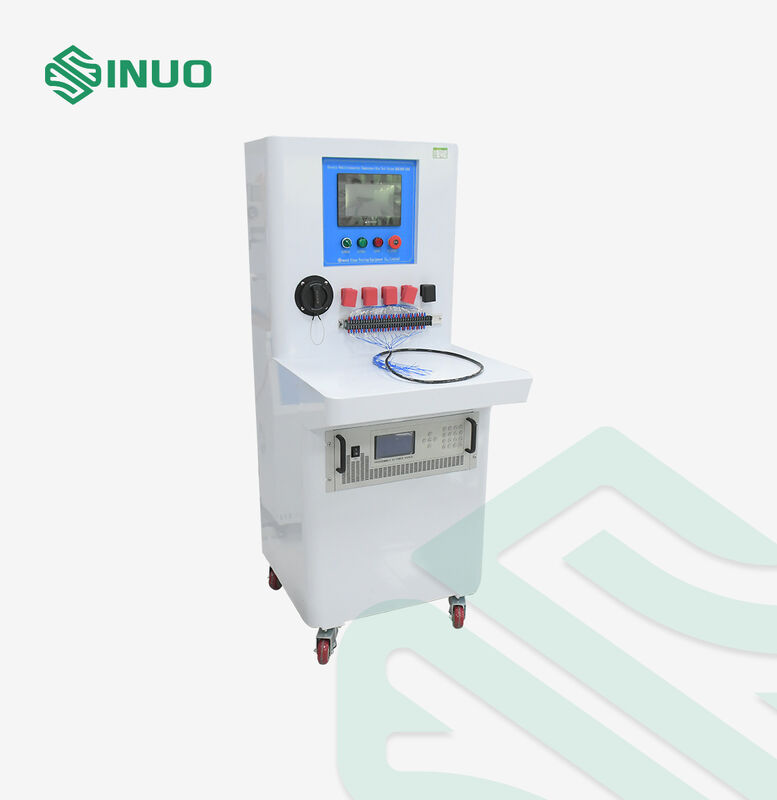

Electric Vehicle Connectors Temperature Rise Test System 100A IEC 62196-1

Complied Standards & Clauses

This temperature rise test system meets the standard requirements of IEC 62196-3: 2022 clause 24, IEC 62196-1: 2022 clause 24, clause 34.2, 34.4 and 35.4, IEC 60309-1: 2012 clause

22, etc.

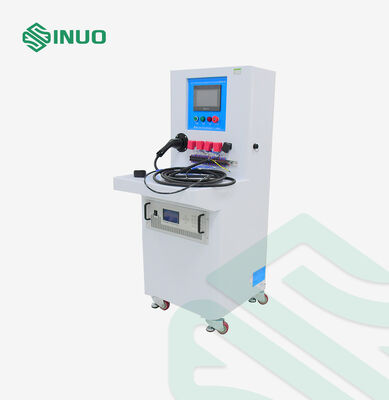

Product Overview

The temperature rise test system consists of an electric voltage regulator, a current transducer, a PLC programmable controller, a current sensor, a humanized touch screen and a movable chassis. It can stably output the test current, and eliminate the influence to the test current caused by the fluctuation of the power supply voltage, the connecting wire or the copper bar, and the resistance value of the sample, and improve the accuracy of the test result. The power supply have functions of low loss, high efficiency, easy operation, complete control and detection. The touch screen can display the current value and the temperature values of each temperature measurement points in real time. The temperature value can be recorded every 2 seconds and report can be generated, which can be stored in a USB flash drive and copied to a computer for viewing and printing.

Technical Parameters

Temperature Measurement Point	16 channels
Operation Method	Color humanized touch interface
Output Constant Adjustable Current	AC 0-100A
Output Current Mode	Continuous/ Intermittent
Load Test Output Voltage	Below AC 5V
Current Resolution	0.1A
Ammeter Accuracy	±1%±3 bytes
Voltmeter Accuracy	±1%±3 bytes
Continuous Mode Test Time	0.01～99.99 hours
Intermittent Mode Test Time	0.01～99.99 hours
Intermittent Mode Test Cycles	1～99999 cycles, automatic shutdown when the test cycles reach to the preset value
Temperature Measurement Range	0~400°C, accuracy 0.3% reading + 1°C; resolution: 0.1°C
Temperature Data Acquisition	Configure RS232 communication interface and data record interface
Temperature Scanning Speed	1 to 255 seconds all channels
Temperature Data Record	The data can be stored U disk
Temperature Measuring Thermocouple	American Omega T-type 30AWG filament thermocouple, length 2 meters, a total of 8 pieces
Power Supply	Single phase AC220V±10%, 50/60Hz, 3KVA
Equipment Dimensions and weight	Approx. L 800mm* W 680mm* H1610mm, 125KG
