EV Connector Testing Equipment for Mechanical Strength and Flexibility Evaluation of Electric Vehicle Charging Connectors and Plugs

EV Connector Testing Equipment for Mechanical Strength and Flexibility Evaluation of Electric Vehicle Charging Connectors and Plugs

Brand Name:	Sinuo
Model Number:	SNQC1009
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Equipment Weight:

150kg

Bending Rate:

0-60 Times/min

Bending Angle:

0-360° Adjustable

Test Station:

Single Station

Drive Mode:

Servo Motor Drive

Equipment Dimensions:

W1000*D800*H1600mm

Load Weight:

20N,25N,50N,75N,100N,140N

Power Supply:

AC220V±10%/50-60Hz

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Electric Vehicle Charging Connectors Testing Equipment

Flexibility Evaluation EV Connector Testing Equipment

Mechanical Strength EV Connector Testing Equipment

Product Description

EV Connector Testing Equipment for Mechanical Strength and Flexibility

This specialized testing equipment evaluates the mechanical strength and flexibility of electric vehicle charging connectors, plugs, sockets, and couplers according to international standards.

Compliance Standards

Conforms to IEC 62196-1:2014 clause 7.11 and clause 7.15, IEC 60309-1:2012 clause 24.4.

Product Overview

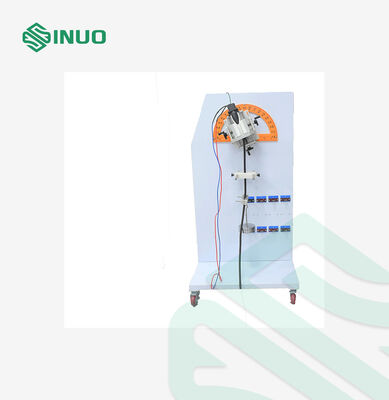

The EV Plug Flexibility Testing Machine is engineered to assess the mechanical durability of electric vehicle charging components, with specific focus on the cable entry point—the area most susceptible to repeated bending stresses in real-world applications.

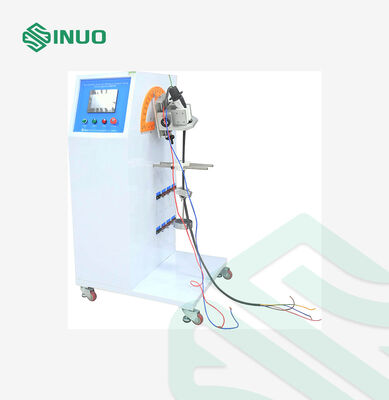

This high-precision apparatus utilizes servo motor technology to drive a turntable that oscillates test samples through controlled left-right movements. The system automatically halts upon reaching preset flexing cycles and signals test completion. Intelligent servo control ensures precise, repeatable swing angles with minimal lateral displacement, guaranteeing reliable test results.

Large-size specimens are securely mounted on durable aluminum plates, with the swing axis precisely aligned at the cord entry point to accurately simulate application stresses. This configuration minimizes unnecessary strain while providing authentic mechanical simulation.

Designed for heavy-duty testing environments, the equipment operates on AC220V±10% / 50-60Hz power input and delivers stable performance with a 3KW power rating. Ideal for R&D laboratories, compliance testing facilities, and quality assurance departments specializing in EV connectors and industrial-grade power components.

Technical Specifications

Equipment Dimensions	Approximately: W1000 × D800 × H1600mm
Equipment Weight	150kg
Test Judgment	Current conduction signal-based evaluation

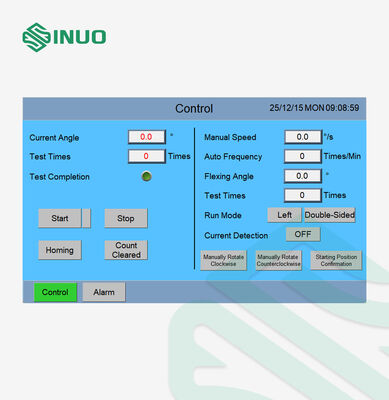

Electrical Control	PLC intelligent integrated control with 7-inch HMI touch interface
Drive Mode	Servo motor drive
Load Weight	20N, 25N, 50N, 75N, 100N, 140N
Bending Angle	0-360° adjustable (default ±45°)
Bending Cycles	0-999,999 presettable (default 20,000 cycles)
Bending Rate	0-60 cycles/min, presettable
Load Power Supply	External connection, optional load cabinet with adjustable voltage (0-250V) and current (AC 0-400A)
Specimen Clamping	Mechanical clamping with adjustable position
