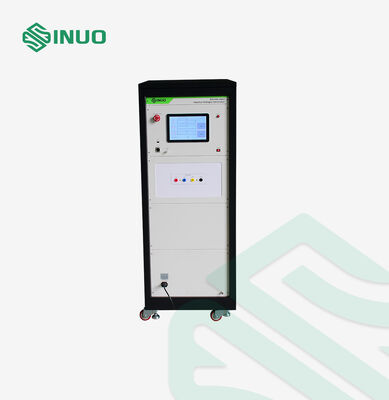

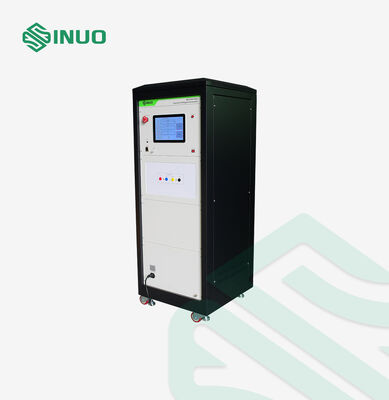

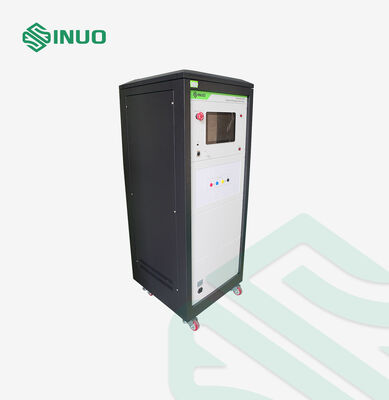

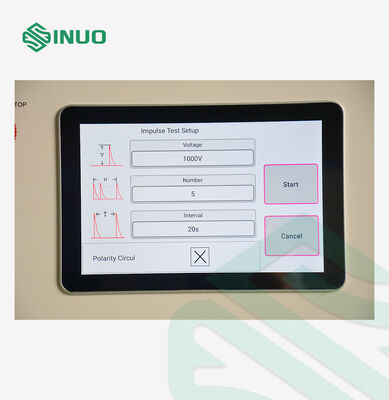

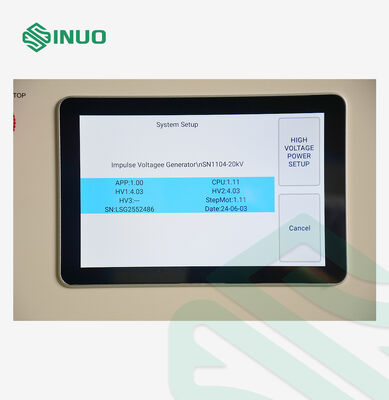

High Voltage Impulse Test Generator EVSE Testing Equipment for Ensuring Robustness of Electric Vehicle Charging Stations

High Voltage Impulse Test Generator EVSE Testing Equipment for Ensuring Robustness of Electric Vehicle Charging Stations

Brand Name:	Sinuo
Model Number:	SN1104-20KV
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	10 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Complied Standard:

IEC 61851

Complied Clause:

Clause 12.7

DC High Voltage:

20kV (Max) ±5％

Internal Resistance:

2Ω ± 10%, 500Ω± 10%

Impact Cycles:

1 ~ 9999

Wavefront Time:

1.2 µs ± 30 %

Peak Voltage:

300V-20kV

Interval Time:

1 ~ 99s

Packaging Details:

Plywood box

Supply Ability:

10 sets/month

Highlight:

High Voltage Impulse Test Generator

EVSE Testing Equipment for EV Charging

Electric Vehicle Charging Station Tester

Product Description

High Voltage Impulse Test Generator EVSE Testing Equipment

Ensuring Robustness of Electric Vehicle Charging Stations

Compliance Standards

The Impulse Test Generator conforms to the standard requirements of:

IEC 61851-1 clause 12.7
IEC 61851-23 clause 11.4

Equipment Overview

This equipment verifies that electrical appliances can withstand transient over-voltages they may encounter during operation. The impulse voltage test is a destructive test where breakdown occurs if the test specimen cannot withstand the applied voltage. When the sample breaks down, sparks and discharge sounds will be generated. The peak voltage of the instrument will drop significantly (close to zero) when it is no-load. When the same voltage is applied again, the above phenomenon will occur.

Technical Parameters

Parameter	Specification
Model	SN1104-20kV (Optional)
DC High Voltage	Max. 20kV
Impulse Voltage Wave	Impulse wavefront time: 1.2 µs ± 30%; Half value of after wave time: 50 µs ± 20% Please note that the waveform should be checked on an external oscilloscope
Instrument Internal Resistance	Resistance matches ITU-T K.44
Peak Voltage	300 V~ 12,500V Low: 300 V~ 2,500V; High: 2,500 V~ 20,000V
Impact Interval Time	10 ~ 99s
Impact Cycles	1 ~ 9999
Polarity	Positive and Negative
Working Power Source	Rated voltage: ~ 220V±10%, 50Hz/60Hz
Dimension	650mm550mm1650mm
Weight	100 KG
